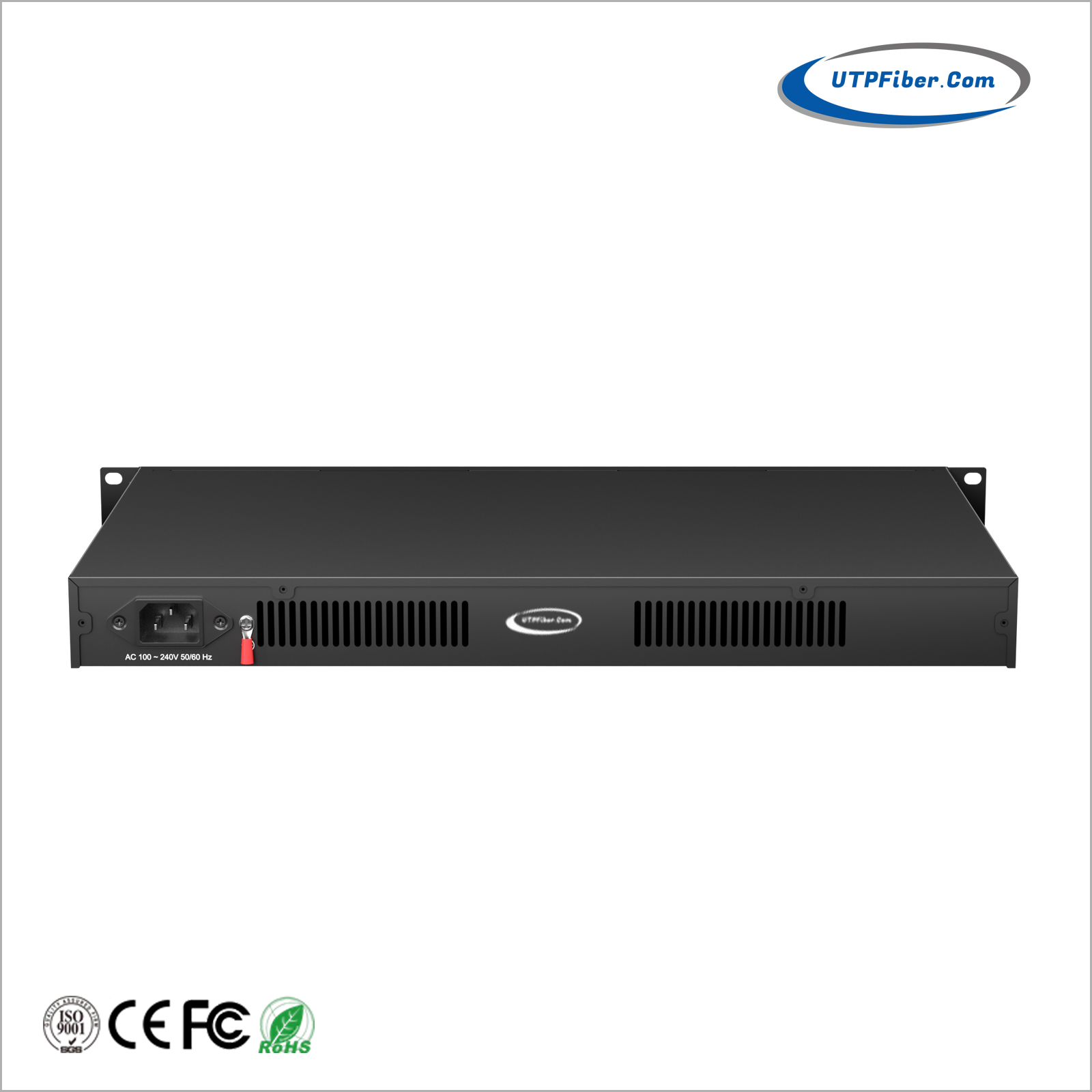

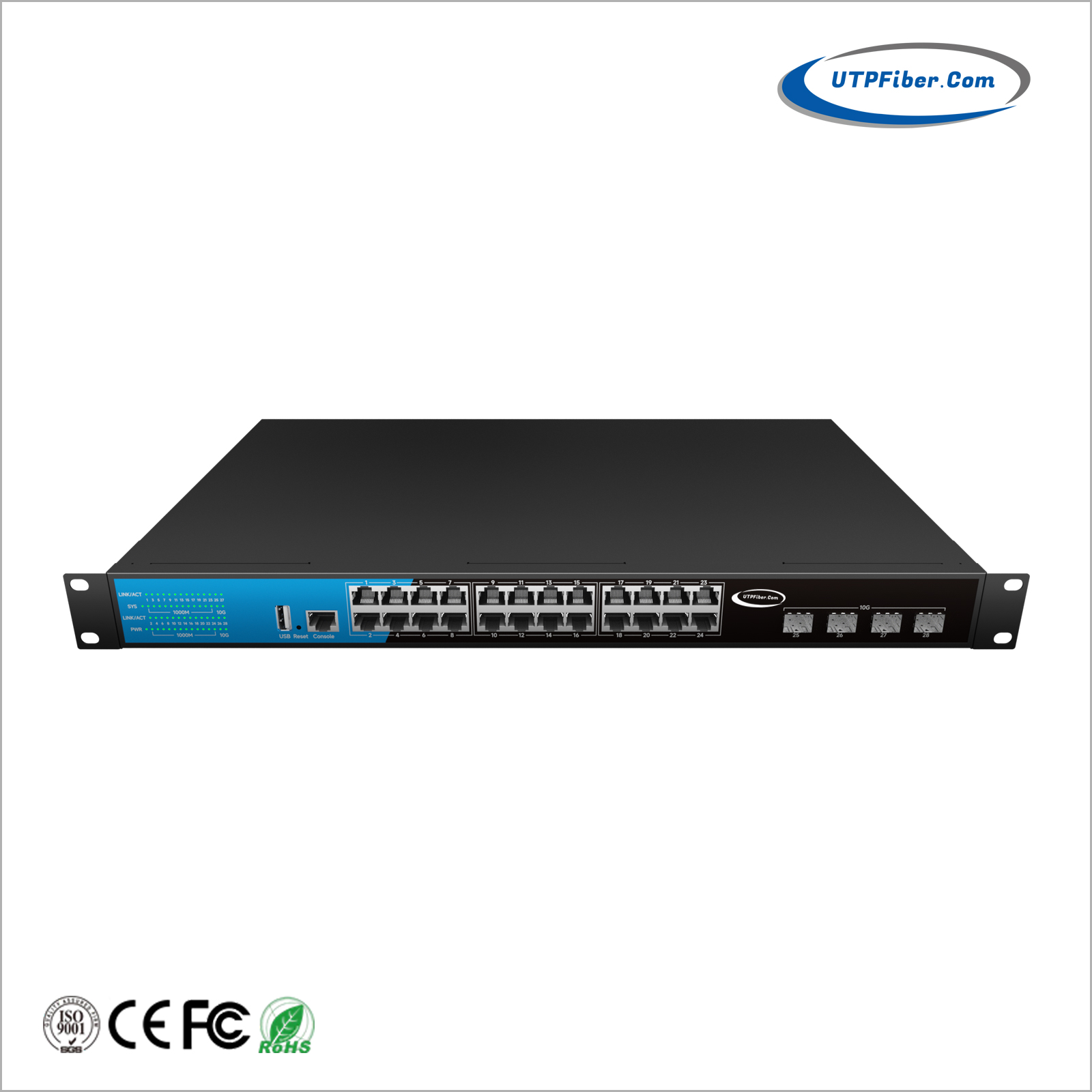

L3 Managed 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Ethernet Switch

Model:UF-MSW4X24GP

► 24-Port 10/100/1000T 802.3at PoE

► 4-Port 10G SFP+

► Web smart management for easy application

► SNMP V1/V2/V3 management

上一张

下一张

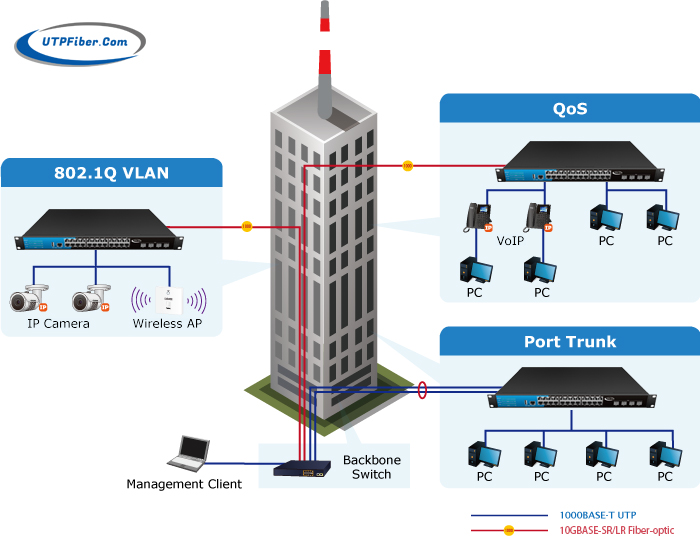

The UF-MSW4X24GP L3 Managed PoE+ Ethernet Switch is equipped with 24x 10/100/1000BASE-T ports, 4x 10G Uplinks, 24x RJ45 Ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+(up to 30W per Port) for powering attached IP phones, wireless access points, or other standards compliant PoE and PoE+ end network devices. The switch adopts the most cutting-edge Realtek chip. This access switch delivers a compact, cost-effective solution for carrier’s IP MAN and enterprise networks. Based on the high-performance hardware and management platform, it supports function such as ACL, QinQ and QoS. It’s simple management mode and flexible installation can meet the requirement of any scenario.

► 24-Port 10/100/1000T 802.3at PoE+

► 4-Port 10G SFP+

► RJ45 console interface for basic management and setup

► Web smart management for easy application.

► Bandwidth management based on port input and output

► SNMP V1/V2/V3 management

► Support loop protection, automatic recovery

► Plug & play, no configuration required.

Physical Port
Port type and quantity:	410G Base-X+ 2410/100/1000 Base-T
Management Port	Support console
Power Supply	100-240V/AC
LED Indicators	PWR，SYS，Link/ACT LED
Power over Ethernet Specifications
PoE Standard	IEEE 802.3at PoE+ PSE Backward compatible with 802.3af PoE
PoE Port	Port 1-24
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 30 watts (max.)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	400 watts (max.)
PoE Management	Support
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2
Network Size – length of cable
Twisted pair (TP):	0-100 m（CAT5e,CAT6）
Single mode Fiber (SMF):	20/40/60/80/100 km
Multimode Fober (MMF):	550 m
Network Topology
Ring topology	Support
Star topology	Support
Bus topology	Support
Tree Topology	Support
Hybrid topology	Support
Electrical Specifications
Input voltage	AC 100-240V 50/60Hz
Power consumption:	≤40W
Layer 2 Switching
Switching capacity	240G
Packet forwarding rate	178.56Mpps
MAC address table	32K
Buffer	16M bit
Forwarding delay	<10us
MDX/MIDX	Support
VLAN	4K
GVRP VLAN	Support
Protocol VLAN	Support
Voice VLAN	Support
Surveillance VLAN	Support
MAC VLAN	Support
Ethert channel/ 802 .3ad	Support
LACP	Support
Interface Speed	Support
Duplex Mode	Support
Flow Control	Support
Jumbo frame	Support
DHCP Client	Support
SNTP Client	Support
Port Statistics	Support
Protected Ports	Support
EEE	Support
Ethernet Ring Protection Switching	Support
LLDP	Support
LLDP 802.1 TLV	Support
MSTP / RSTP / STP	Support
STP BPDU Filter	Support
STP BPDU guard	Support
STP Port Fast	Support
IGMP Snooping	Support
MLD Snooping	Support
MVR	Support
DHCP Server	Support
Layer 3 Route
IPV4 management	Support
IPV6 management	Support
Dynamic Routing	OSPF, RIP
Static Routes IPv6	Support
ARP	Support
Loopback Interface	Support
Convergence
ACL	Support MAC Standard/Extended ACL Support IPV4 Standard/Extended ACL Support IPV6 Standard/Extended ACL
QoS	Support QoS Remarking Support Port Trust Support Port bandwidth Support egress queuing bandwidth Support SP，WRR Support COS，DSCP，IP Priority

Management
User Management	Support
System Log	Support
Upgrade Firmware	Support
Configuration File Download/Upload	Support
SNMP	Support SNMP V1/V2/V3
WEB	Support
Console	Support
CLI	Support
Telnet/SSH	Support
RMON	Support
Security
management channel configuration	Support
AAA	Support
802.1X	Support
MAC-Based	Support
WEB-Based	Support
DoS	Support
ARP	Support
DHCP Snooping	Support
IP Source Guard	Support
Port Security	Support
Protected Ports	Support
Storm control	Support
Equipment diagnosis
Console log	Support
RMA log Flash log	Support
Port Mirror	1: 1 or 1: M
Ping	Support
Traceroute	Support
Fiber module info	Support
UDLD protocol	Support
Environment
Operate temperature	-10ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Relative humidity	Working humidity 10% to 90% RH Storage humidity 5% to 90% RH
Heat Dissipation Method	Fan
MTBF	100,000H
Mechanical Dimensions
Dimensions (WxHxD):	44028444mm (WDH)
Mounting	Standard Rack Mounted
Weight	3kg
EMC & INGRESS PROTECTION
Surge protection for power	Common mode 6KV; differential mode: 4KV
Surge protection for Ethernet port	Common mode 6KV; differential mode: 4KV
ESD	Air 8K, contact 15K
Free fall	0.5m
Accessories
Accessories	Device, Power cord, User manual

Download FileName：UF-MSW4X24GP L3 24-Port 1000T + 4-Port 10G SFP+ L3 Managed PoE Switch Datasheet V1.0.pdf Size： 508KB

Model	Description
UF-MSW4X24GP	L3 Managed 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Ethernet Switch
Mounting Options	► Desktop or Rack-mounted

L3 Managed 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Ethernet Switch
