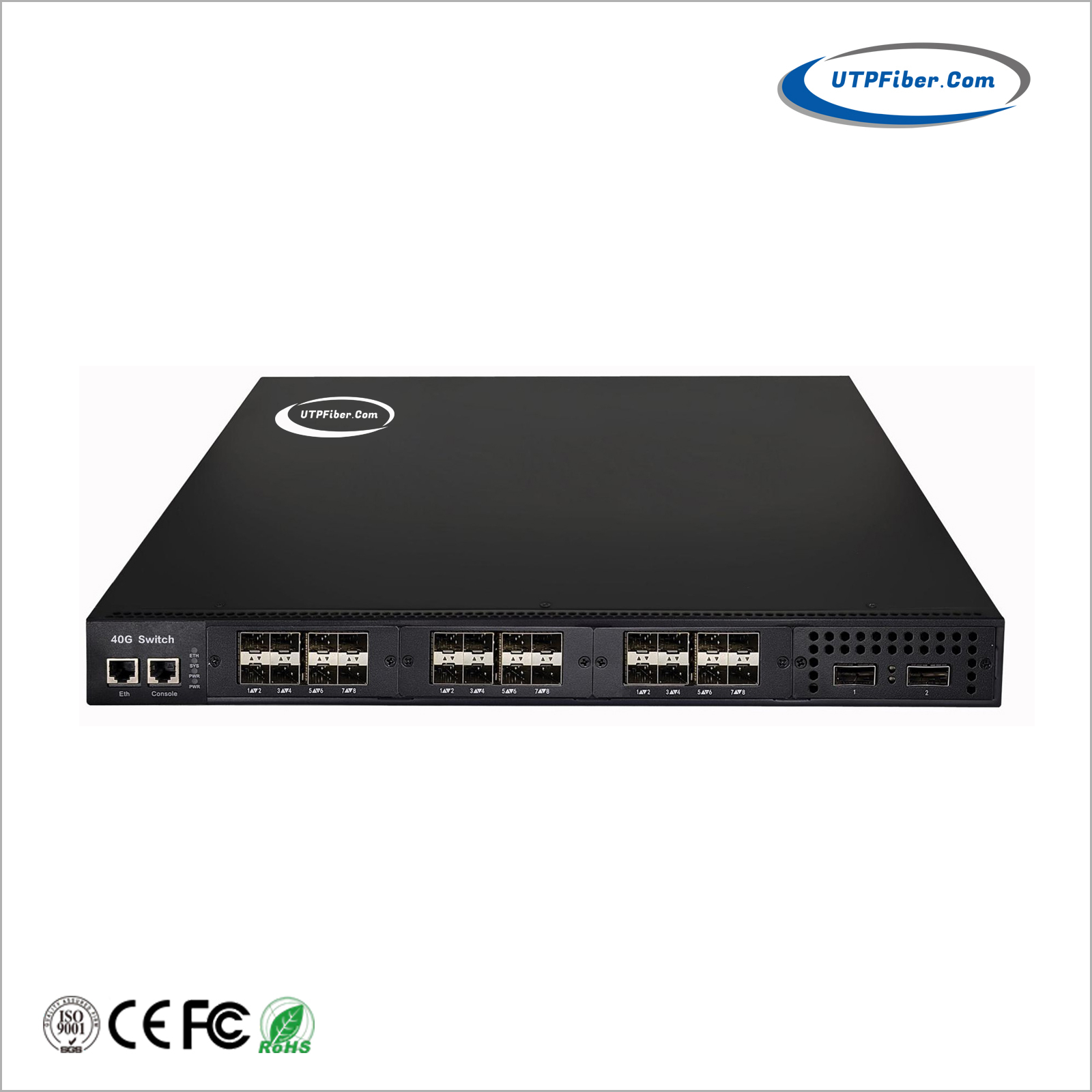

L3 Managed 24-Port 10G SFP+ + 4-Port Gigabit TP/SFP Optical Fiber Switch

Model:UF-FS24X4C

►    Support 24-Port 10G SFP+ + 4-Port Gigabit TP/SFP

►    Support layer 3 network management

►    Support 128K MAC learning, 364Mbit storage and forward cache space, 490G back plane bandwidth

►    1U 19-inch standard chassis

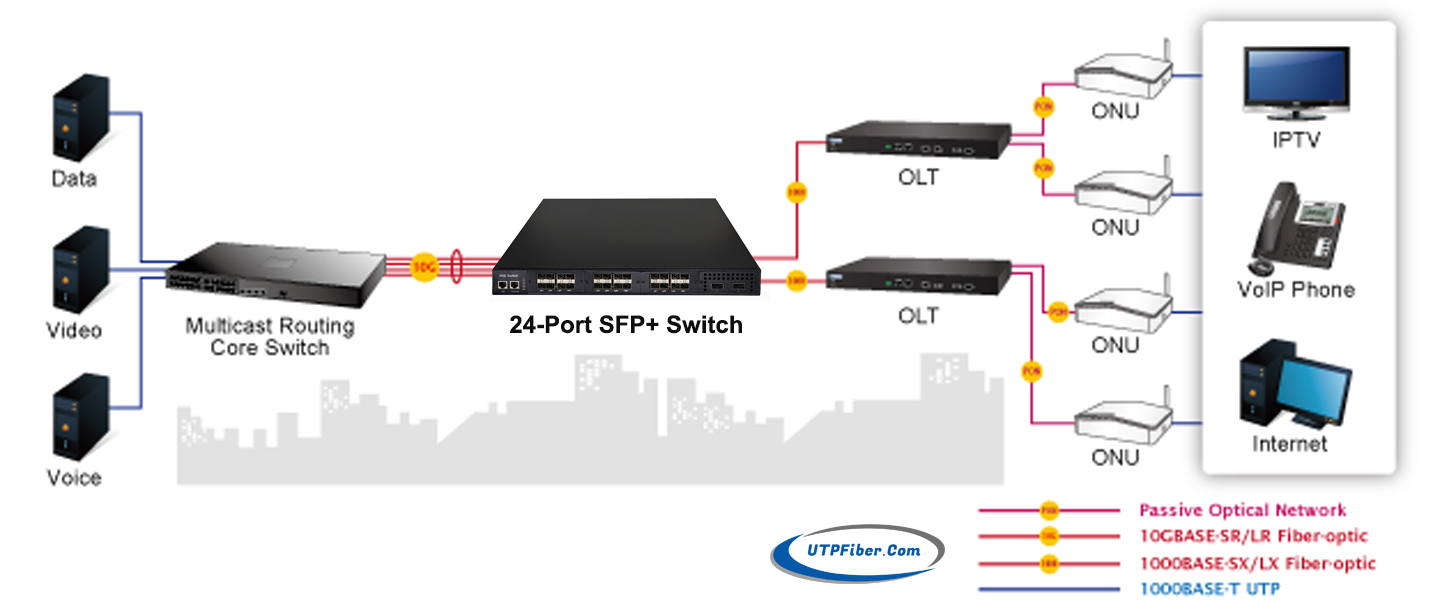

UF-FS24X4C series switches are 10Gb Data Center Switch with 24-Port 10G SFP+ + 4-Port Gigabit TP/SFP. It provides high exchange capacity, the capacity of support ACL function based on three or four layers. Perfect safety control strategy and the CPU protection strategy (CPU protect policy) to improve the fault tolerance, ensure the stable operation of the network and link load. UF-FS24X4C series switches adopts modular design, which can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. To provide enough bandwidth, the user can according to demand to choose the appropriate 10G port in a flexible response network requirement. UF-FS24X4C series switches provides high backplane bandwidth, low latency, simple network management and other characteristics, located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, gathering.

L3 Managed 24-Port 10G SFP+ + 4-Port Gigabit TP/SFP Optical Fiber Switch


►    Support 24-Port 10G SFP+ + 4-Port Gigabit TP/SFP

►    Support SFP hot plug

►    Support full rate, full-duplex non-blocking forwarding at each port

►    Support layer 3 network management

►    Support 128K MAC learning, 364Mbit storage and forward cache space, 490G back plane bandwidth

►    Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault

►    All optic ports, strengthen the an-interference ability

►    Metal casing design, better for heat dissipation

►    1U19-inch standard chassis

Hardware Specification

Standards:

IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-TX/FX Fast Ethernet

IEEE802.3ab 1000Base-T

IEEE 802.1d Spanning tree protocol

IEEE 802.1w Rapid Spanning tree protocol

IEEE 802.1s Multiple Spanning tree protocol

IEEE 802.1p Class of service

IEEE 802.1Q VLAN Tagging

IEEE 802.1AB-2005, LLDP

IEEE 802.1Qbb priority flow control

IEEE 802.3x Flow Control and Back pressure

IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

IEEE802.3ae 10GBase-X

IEEE802.1ax Link Aggregation

IEEE802.1ak - Multiple Registration Protocol

10GBase-X SFP+ Slots:

24 x 10GBase-X SFP+ interfaces, from port 1 to port 24

Combo Port:

4 x 10/100/1000Base-T or 1000Base-X SFP

Console Port:

1 x RJ45-to-DB9 serial port (9600, 8, N, 1)

OOB Management Port:

1 x RJ45

Backplane Bandwidth:

490Gbps

Packet Forwarding Rate:

364.56Mpps

VLAN ID

4K

Flash Capacity

32MB

Memory Capacity

1GB DDR3 SDRAM

CPU:

PPC Dual-core 800MHz

Packet Buffer

9MB

Jumbo Frames

9216 bytes

Transfer Mode

Support store-forward mode and cut-through mode

IPv4/IPv6 Route

6k/8k

MAC Address Table

128K

Network Cables:

10/100/1000BASE-T:

1G--Cat 5e/Cat 6/Cat 6A/ Cat 7

100M--Cat 5/Cat 5e/Cat 6/Cat 6A/ Cat 7

Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)

EIA/TIA-568 100-ohm STP (100 meters, max.)

1000BASE-X:

50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 220/550m/2km

9/125μm single-mode fiber optic cable, up to 20/40/80/120km (vary on SFP module)

10GBASE-LR/SR/BX:

50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m

9/125μm single-mode fiber optic cable, up to 20/40/80km (vary on SFP module)

Management

System Management:

SNMP v1/v2/v3

Console Management

TELNET Method

WEB Interface

Spanning Tree:

Support STP, RSTP, MSTP (802.1s)

VLAN

Support port-based VLAN

Support MAC based VLAN

Support 802.1Q tag VLAN

Support IP based VLAN

Flow Control

Half-Duplex Is Based on Back Pressure Control

Full Duplex Based on PAUSE Frame

Storm Control

Broadcast Suppression

Multicast Suppression

DLF Inhibition

Inhibition Rate

Security Features

IP+MAC+PORT+VLAN Binding

ARP Inspection

DOS Protection

Port Protection

IP Source Port Protection

VLAN

Port Based VLAN

802.1Q VLAN

IP based VLAN

MAC based VLAN

MAC Address Table

Static MAC address table

Dynamic MAC address table

Port Mirroring

Support Port Mirroring

Port Management

General Settings

Port Statistics

Configure Port

Port Aggregation

Port Isolation

QoS

IEEE 802.1Qau Congestion Mechanism

8 Sending Queues Per Port Are Mapped To 8 Priority Levels of 802.1p

IP Service

Ping Detection

DHCP Detection

Multicast Management

IGMP Snooping frame

Remote Upgrade

Support for Version Upgrade via Web

Support Local Version Upgrade

Excellent Performance

With 490Gbps backplane bandwidth, the industry's highest performance (1U TOR);

Hardware routing, wire-speed layer 3 switching packet forwarding rate reaches 364.56Mpps, L2/L3 full wire-speed forwarding;

It can be deployed in the core of the metropolitan area network provides several last 1km technologies

Safe Reliable:

Provide defenses such as DOS, distributed denial of service, deception, viruses

Support IEEE802.1x, provide port-based user authentication, network shield technology, security control technology policy control list

Limit the maximum number of hosts connected to the port, multi-channel binding of Ethernet interfaces to increase bandwidth system redundancy

Powerful ACL, supporting L2-L4 Layer Data Filtering

Strategy control list, flow adjustment

Easy to Maintain:

Support flexible port configuration

It can be managed through various methods such as Web, SNMP, CLI, Telnet, Etc.

Support XModem protocol, software upgrade BootRom Upgrade can be done through TFTP/ZMODEM

Support SFP+, but also backward compatible with XFP, Etc.

Enter or exit low power consumption state in PHY.

Powerful Flow Broadcast Management Functions

Automatically detect suppress broadcast storms, support IGMP message detection, effectively limit the flooding of broadcast messages

Support flow control in full-duplex mode half-duplex mode

Support the rate limit of the Ethernet Interface with 1M as the step length

Support IP Multicast QoS

Environmental

Operating Temperature:

-10°C to 60°C (14°F to 140°F)

Storage Temperature:

-40°C to 80°C (-40°F to 176°F)

Relative Humidity:

5% to 95% non-condensing

Storage Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

90-290VAC

Power Consumption:

110W

LED Indicators

PWR:

Power Status

SYS:

System Activity

NC:

Connection/Receiving

Dimensions (WxDxH):

440 x 285 x 44mm

Weight:

5KG

Casing:

Metal Case

Mounting Options:

Rack Mount

Regulatory Approvals

CE, RoHS, FCC

  • Download FileName:UF-FS24X4C 24-Port 10G SFP+ Fiber Switch Datasheet V1.0.pdf Size: 639KB

Model

Description

UF-FS24X4C

L3 Managed 24-Port 10G SFP+ + 4-Port Gigabit TP/SFP Optical Fiber Switch

SFP+/SFP

10GBase-X SFP+ or 1000Base-X SFP (to be purchased separately)

Please select your SFP+ on our SFP Modules page for details.

Mounting Options:

► Rack Mount

Power Options:

90-290VAC
