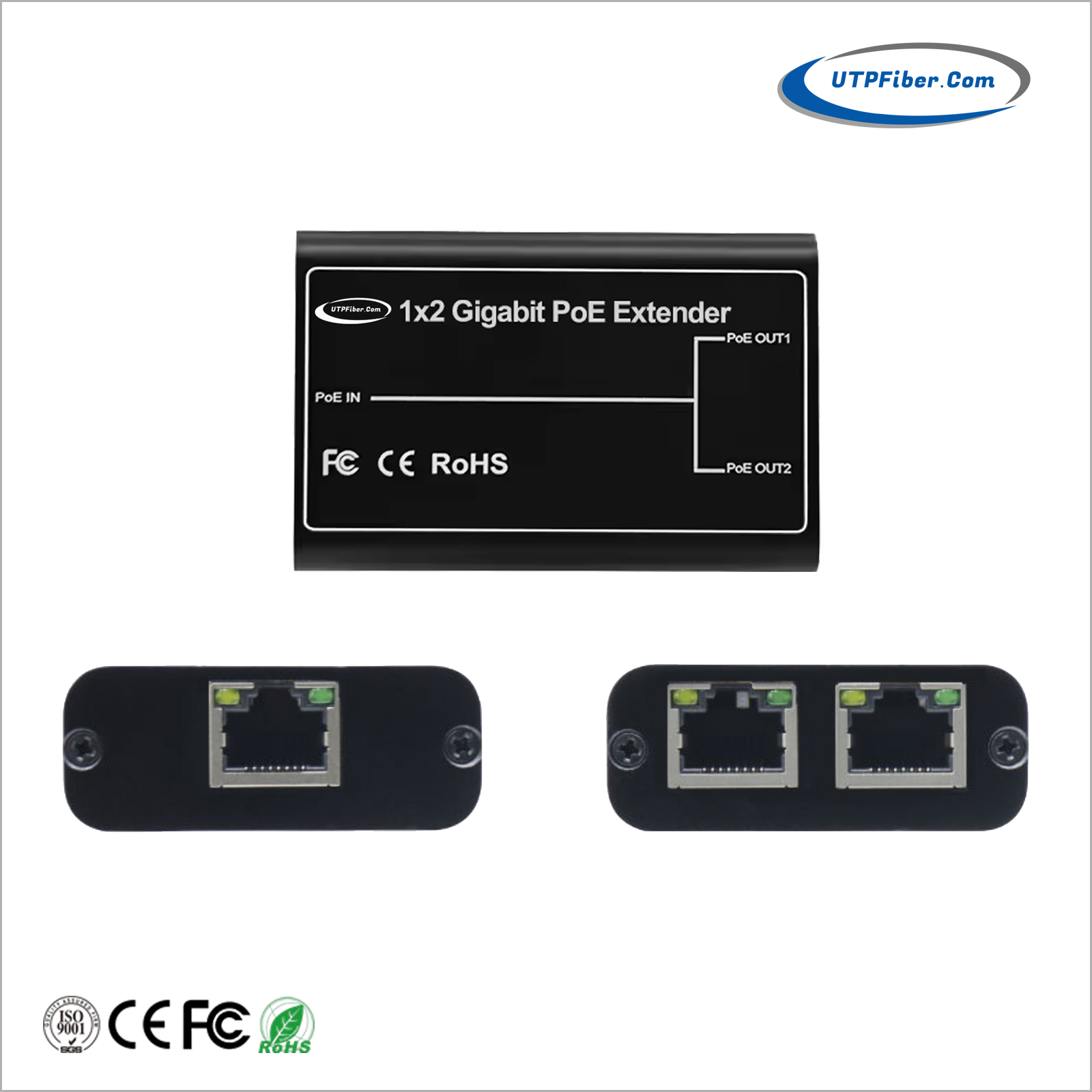

The UTP 2-Port Gigabit PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to two output devices via Cat5e or Cat6 cable. 1-2 ports support IEEE 802.3af/at standard POE power supply, and the POE power of a single port is up to 30 Watt. The POE extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100 m network cable from a POE switch. It can extend the network and POE power supply for another 100m at full rate. As a POE power supply device, it can automatically detect and identify the compliant power receiving devices and supply power to them through network cables. POE terminals such as wireless AP, webcams, Internet telephones, and visual access control intercom can be powered by network cables, which can meet the requirements for high-density POE power supply in the network environment and can be used for twist-pair POE transmission applications within 200 meters without loss of bandwidth. Suitable for hotels, campuses, parks, scenic spots, factory dormitories and SMB small and medium-sized enterprises to establish an economical and efficient network.

►     Data Speed:10/100/1000Mbps

►     PoE input:1 RJ45 port(DC 48-57V)

►     PoE output:2 RJ45 port

►     Comply with IEEE 802.3af/at Power over Ethernet

►     Delivers up to 30W to two connected PoE devices with up to 30W per port

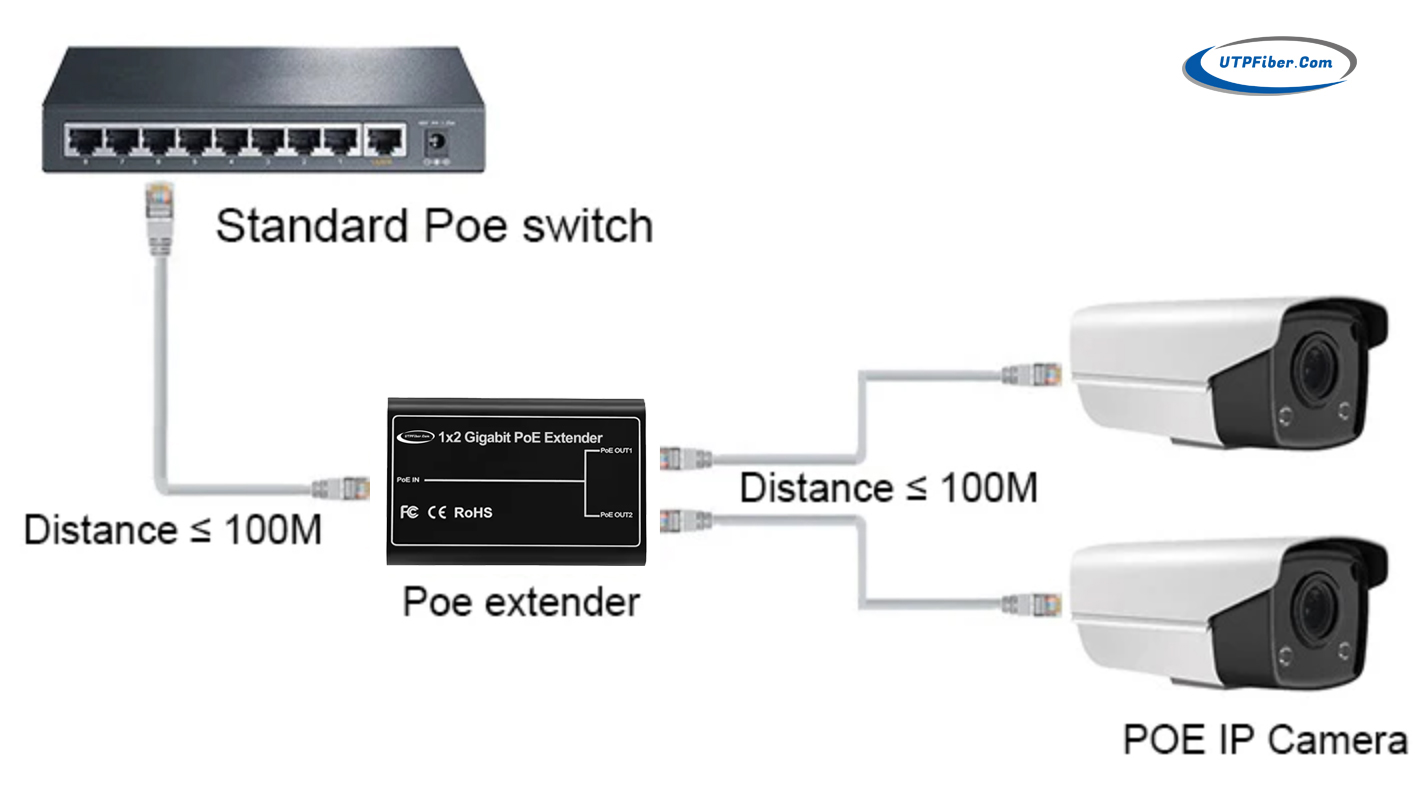

►     Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)

►     Connects and powers two PoE devices such as network cameras, wireless access points or VoIP phones, from one PoE injector or PoE switch PSE port

►     Plug and play, no configuration, easy to use and maintenance

• Download FileName：UF-PE102G 2-Port Gigabit PoE Extender Datasheet V1.0.pdf Size： 450KB
