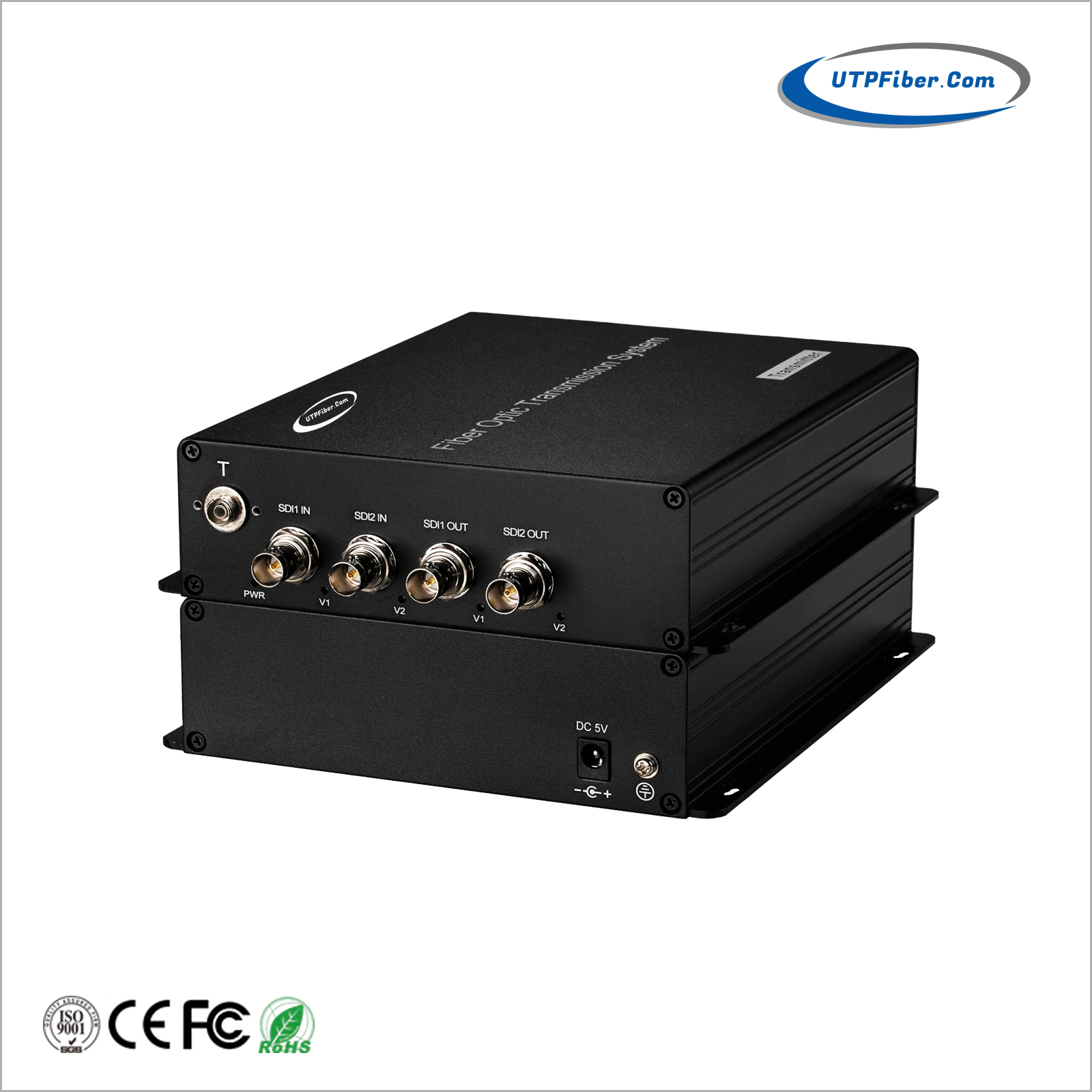

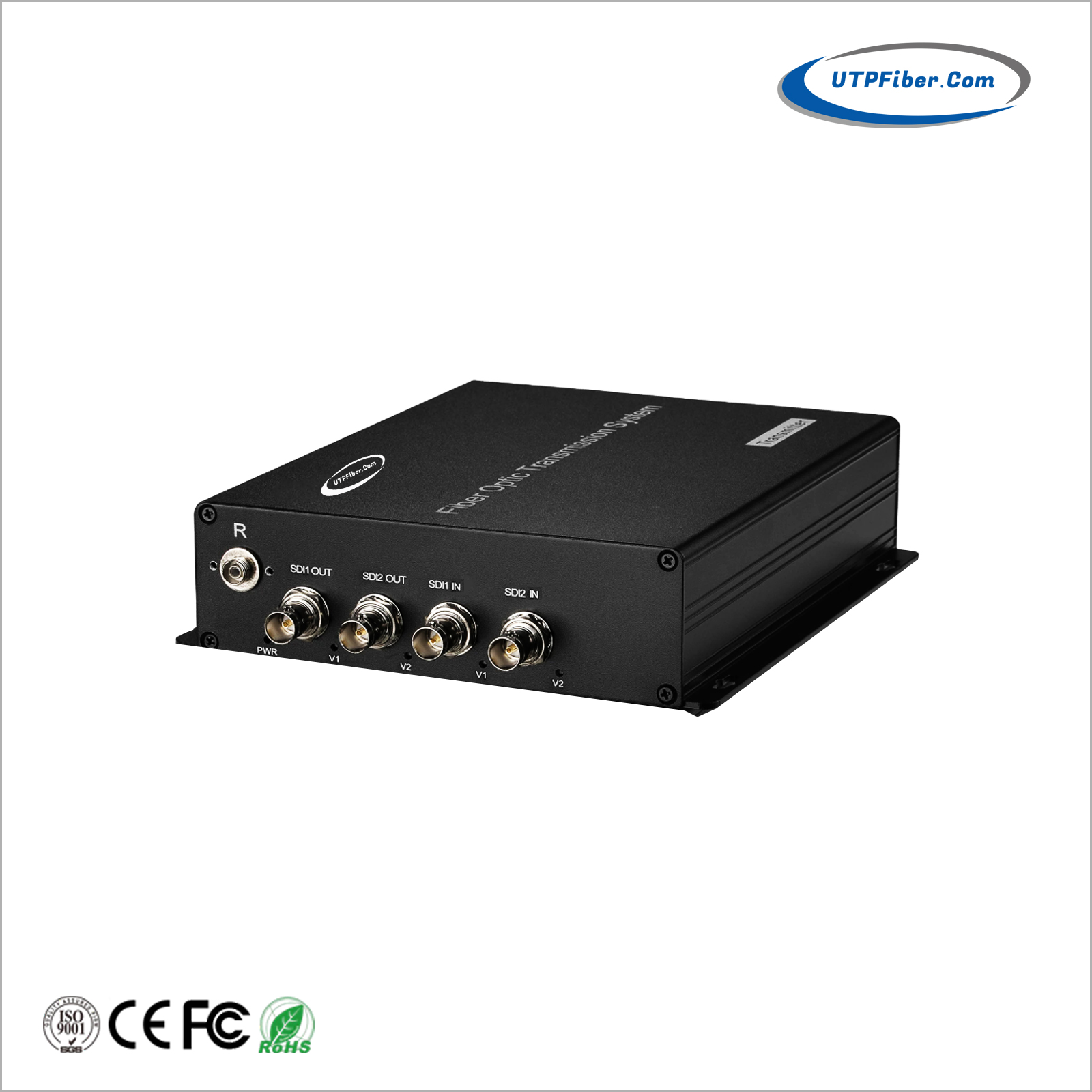

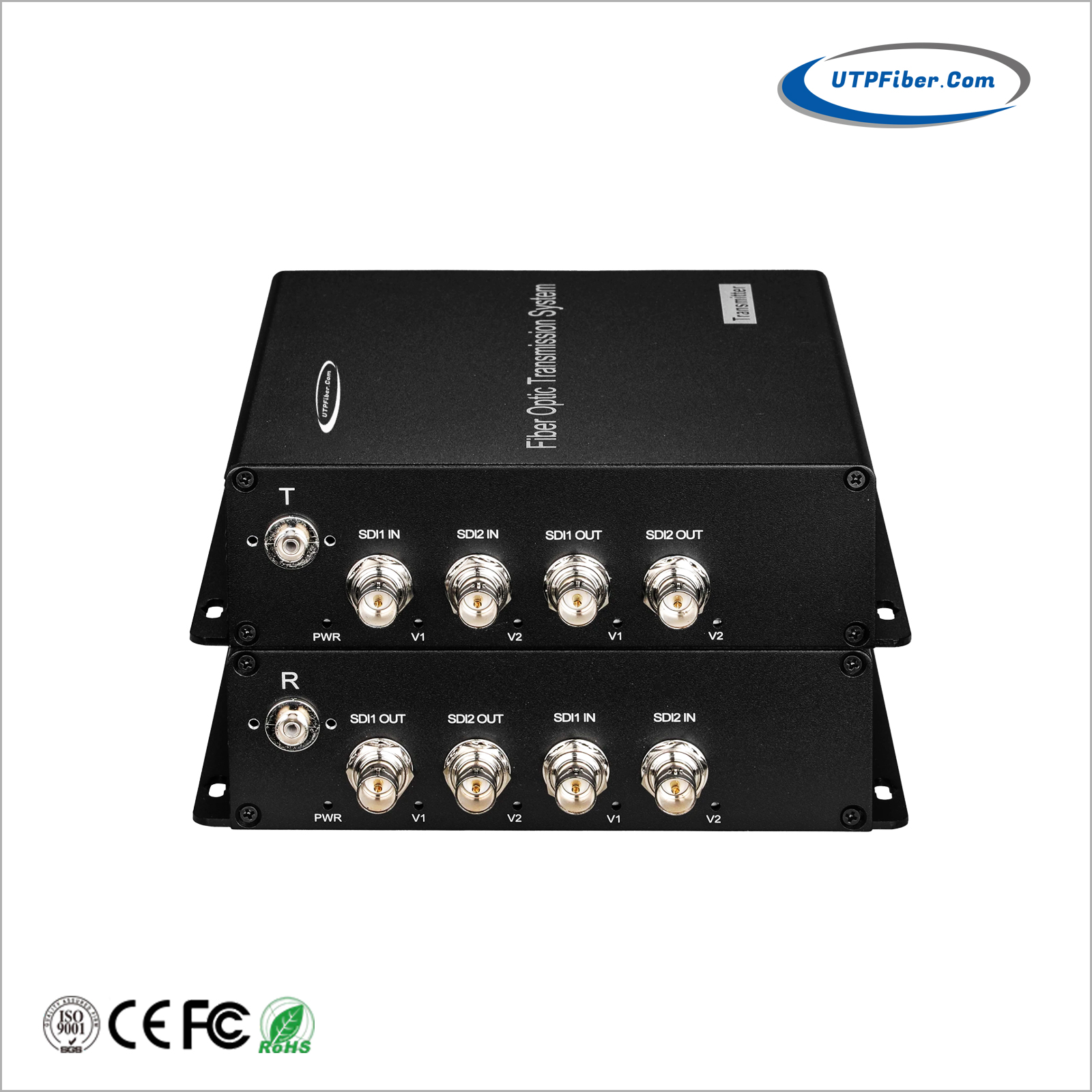

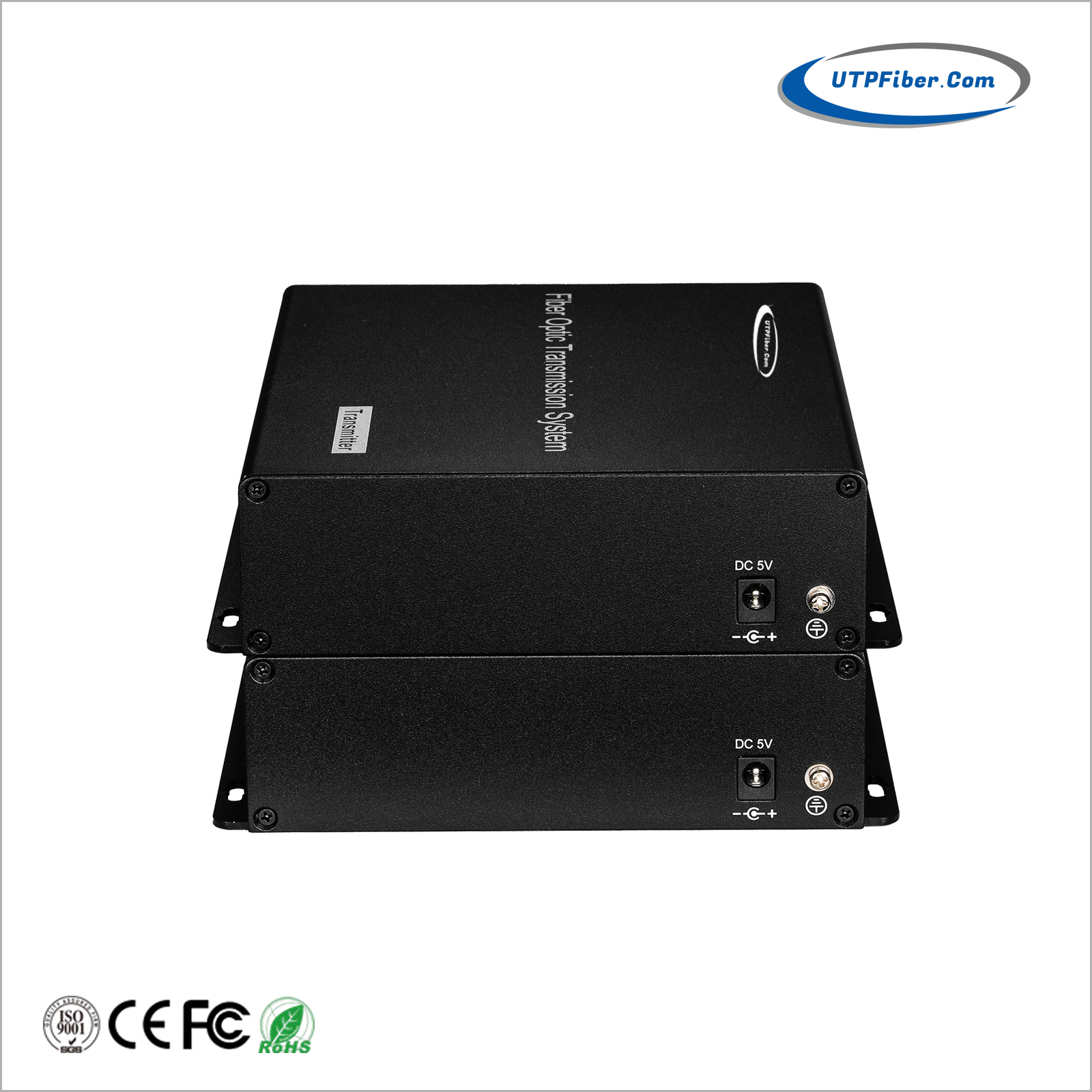

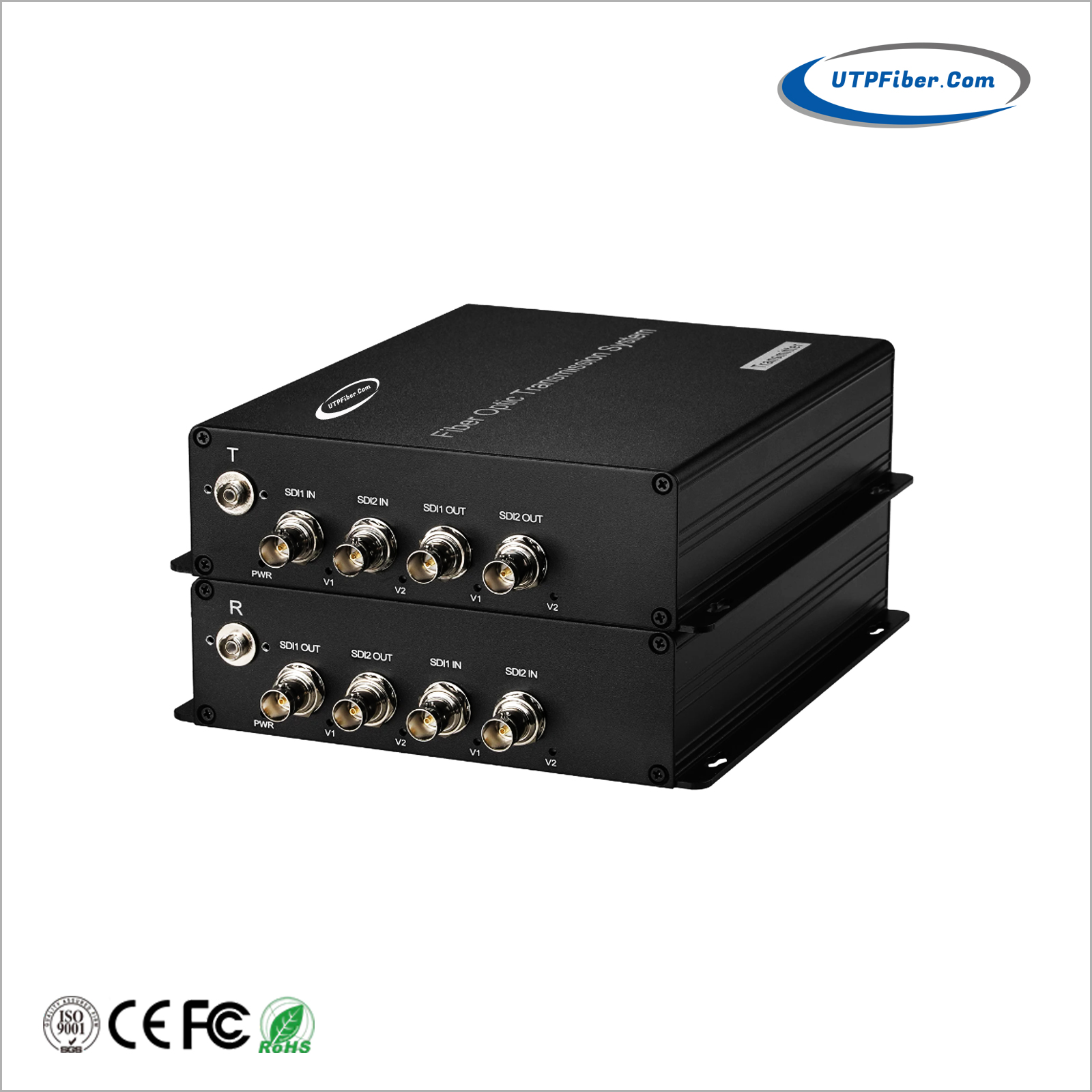

2-Channel Bi-Directional 3G/HD/SD-SDI over 1 Fiber Optic Extender, Single-Mode up 20Km
Model:UF-3GSDI-2BV-20 Series
► 2-Channel Bi-Directional 3G/HD/SD-SDI video transmission over optic fiber
► Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s

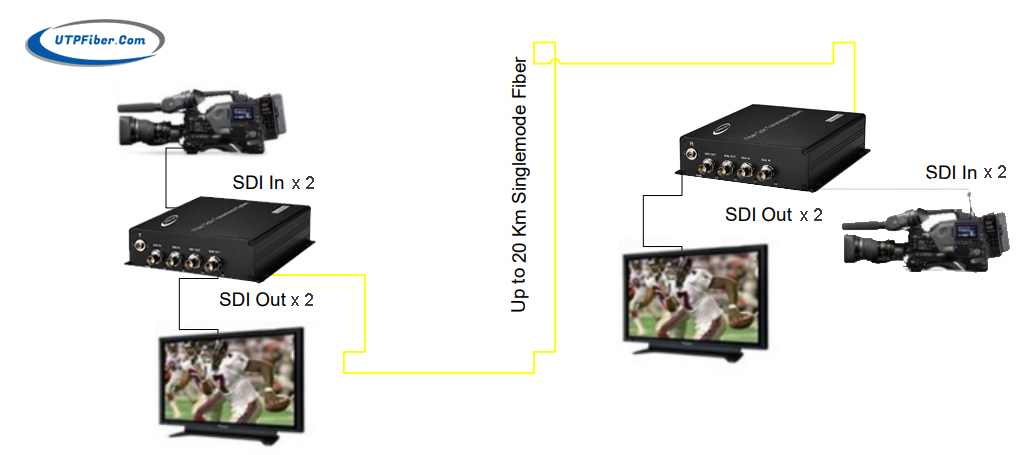

The UF-3GSDI-2BV-20 2-Channel Bi-Directional 3G-SDI to Fiber Extender kit is a compact power house that will allow any user to transport 2-Channel Bi-Directional 2.97Gbps 3G-SDI Serial Data Interface over a single strand of fiber. Furthermore, this 3G SDI over Fiber Kit of Transmitter and Receiver are used by pairs. This sturdy Fiber Extender creates an easy drop environment for users that require multiple 3G-SDI sources on one Fiber across any application. UTP Fiber has an excellent reputation as a Manufacturer of high quality and low cost price products to help complete your project on time, in a loss free high quality kit that will ensure you stay under budget. Our Fiber Optic Extender is Commonly used in security applications, live performance environments, video surveillance, SDI distribution and control in any environment. Our 2-Channel Bi-Directional 3G SDI over Fiber Kit Unit supports 20km on a single mode fiber. This unit is an SDI over Fiber multiplexer and SDI over Fiber demultiplexer.
► 2-Channel Bi-Directional 3G/HD/SD-SDI video transmission over optic fiber
► Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD/SD-SDI camera systems
► CWDM technology to achieve multi-channel signal transmission
► Long transmission up to 20 km (12.5miles)
► Full digital non-compression broadcast level transmission
► Working temperature range (-20°C ~75°C)
|
Fiber index |
|
|
Wavelength |
1470~1610nm |
|
Rate |
3Gbps |
|
Tx power |
＞-6db |
|
Rx sensitivity |
＞-14db |
|
Fiber Core |
1-Core |
|
Fiber connector |
FC (default) LC/SC/ST (optional) |
|
Video index |
|
|
Signal type |
DVB -ASI, SD-SDI, HD-SDI, 3G-SDI |
|
Work standards |
DVB-ASI , SMPTE259M-C, SMPTE292M, SMPTE424M |
|
Bit rates |
270 Mbps, 1. 485 Gbps, 2. 97Gbps |
|
Video input / output |
|
|
Signal type |
DVB-ASI, SD-SDI, HD-SDI, 3G-SDI digital video |
|
Video Channel |
2-Channel Bi-Directional (Forward + Backward) |
|
Input impedance |
75 Ohm |
|
Enter the automatic cable equalization |
>80m (1. 485 Gbps@BELDEN8281 cable) |
|
Clock recovery |
When 270 Mbps, 1. 485 Gbps, and 2. 97Gbps are automatic, the others are bypass |
|
Input level |
800mVp-p±10% |
|
Enter the echo loss |
＞10dB @ 2. 97 Gbps |
|
Output DC offset |
<±0. 5V |
|
Output echo loss |
＞10dB @ 2. 97 Gbps |
|
The biggest shake |
＜0. 1UI(1485Mbps) |
|
Signal overshoot |
＜5% (1485Mbps) |
|
Equipment information |
|
|
The shell metal |
Aluminum alloy |
|
Way to install |
Wall-mounted |
|
Dimensions (WxDxH): |
167 x 192 x 49 mm |
|
Product net weight (unit: pair) |
1.45KG |
|
Product weight (including the outer packaging) |
1.75KG |
|
Packing size |
345*210*90mm |
|
Input voltage |
100VAC～242VAC, 50-60Hz |
|
Power supply |
DC 5V 2A |
|
Power dissipation |
＜6W |
|
Overload protection |
support |
|
Over current protection |
support |
|
LED Indicators: |
|
|
Fiber |
Fiber Status |
|
SDI Input |
V1~V2 |
|
SDI Output |
V1~V2 |
|
PWR |
Power Status |
|
Environmental |
|
|
Operating temperature |
-20°C ~75°C |
|
Storage temperature |
-40°C ~85°C |
|
Relative humidity |
From 5 to 95% (non-condensing) |
|
Working life |
> 100,000 hours |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
CE, RoHS and FCC |
|
- Download FileName：UF-3GSDI-2BV-20 2Ch Bidirectional 3G-SDI over Fiber Extender Datasheet V1.0.pdf Size： 702KB
|
Model |
Description |
|
UF-3GSDI-2BV-20 |
2-Channel Bi-Directional 3G/HD-SD-SDI over Fiber Optic Extender, Single Mode, Single Fiber, FC Connector 20KM, including Transmitter and Receiver, used by pairs |
|
Mounting Options |
► Wall Mount Installation |
|
Power Options |
►5V 2A Power Supply |
|
► Power Supply included |
