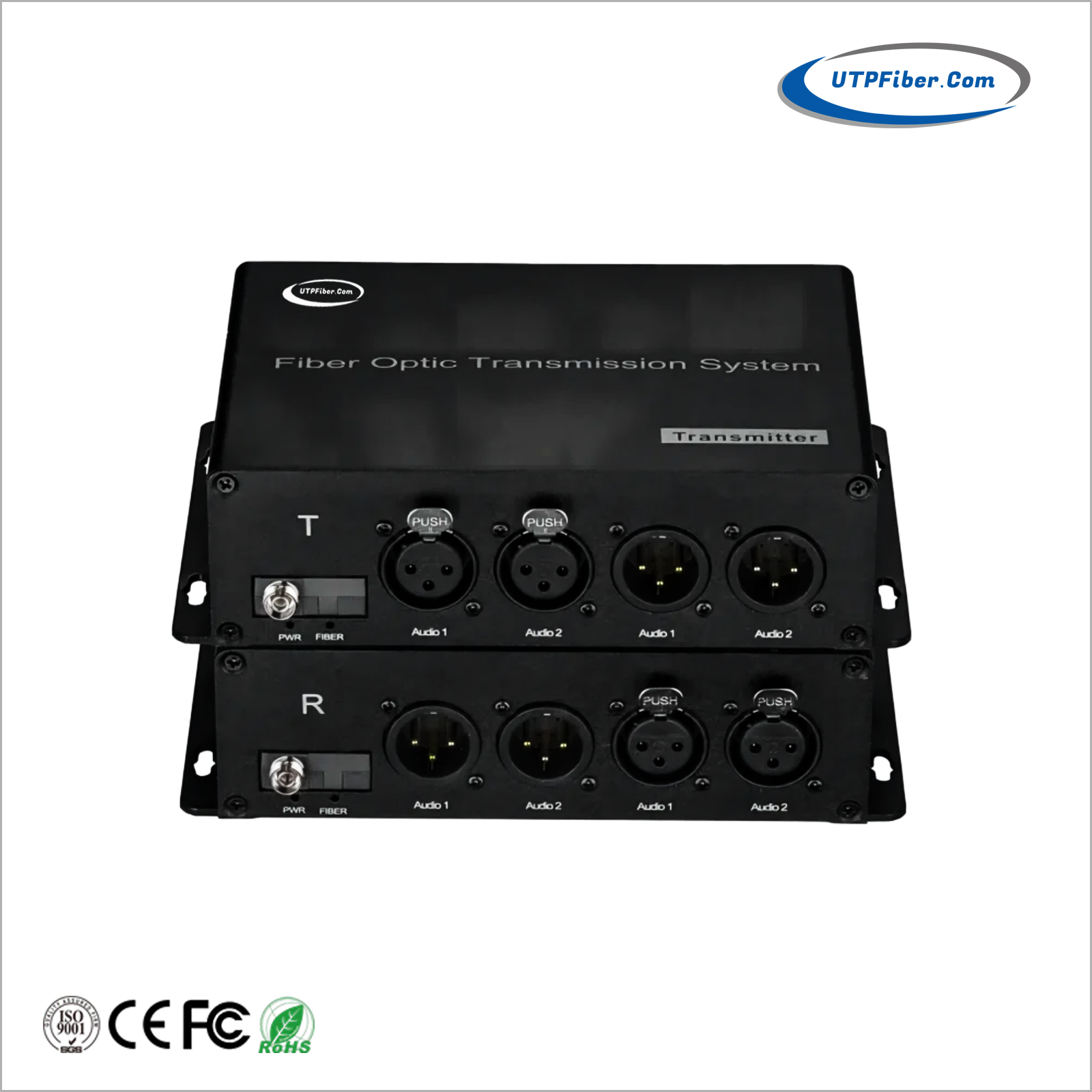

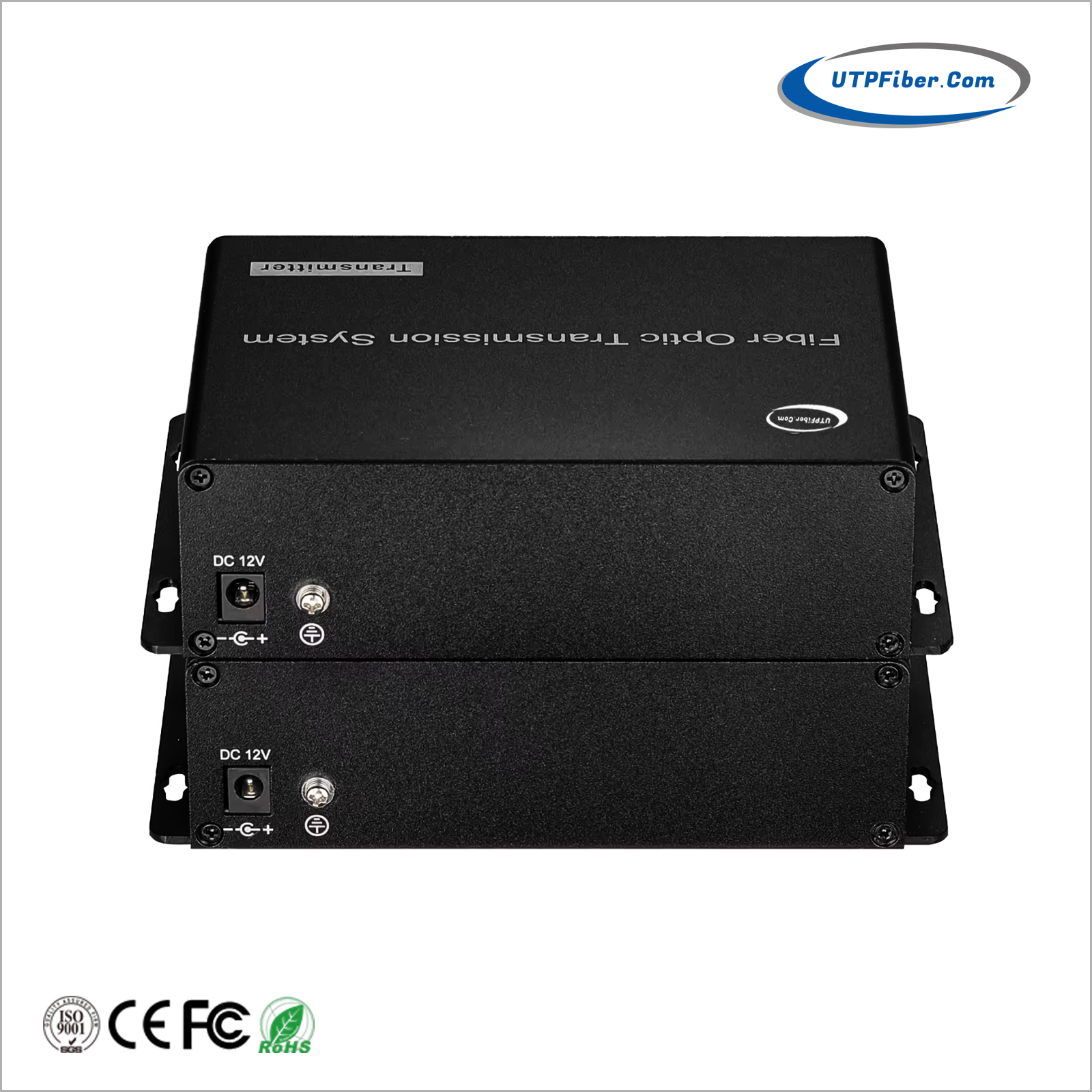

2-Channel Bi-Directional XLR Balanced Audio over Fiber Optical Converter
Model:UF-XLR-2BA
► Support 2-Channel balanced audio forward and backward transmission
► Broadcast standard analog balanced audio
► Single and multi-mode compatible, multi-mode transmission distance is 1KM, single-mode transmission distance 20KM, supporting customized transmission distance of up to 100KM
► Devices are used in pair. Note that devices are distinguished between transmitter and receiver

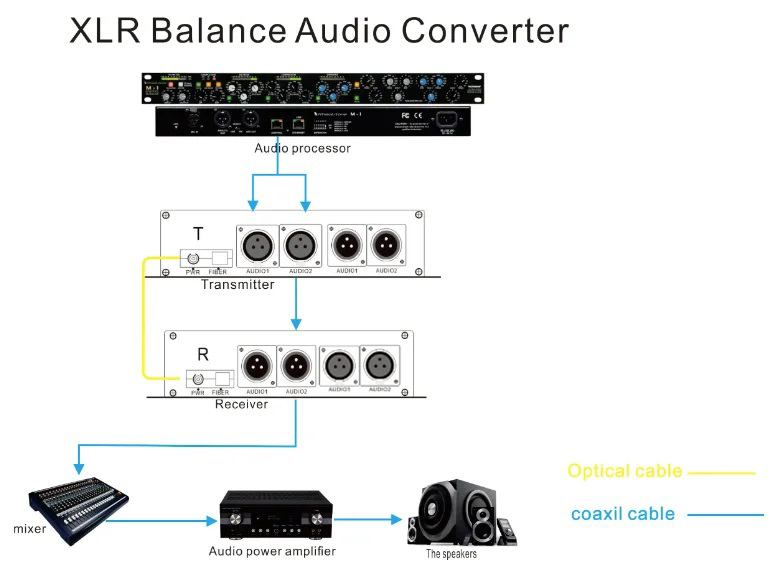

The UF-XLR-2BA 2-Channel bi-directional balanced audio fiber converter sends balanced line level XLR broadcast quality audio signal up 20km on single mode fiber. The system consists of a transmitter and receiver that support 16-bit digitally encoded broadcast audio for use on single mode optical fiber. The fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
► Support 2-Channel balanced audio forward and backward transmission
► Broadcast standard analog balanced audio
► Using FPGA, digital coding/decoding and clock recovery technology, high integration and high stability
► Audio interface is XLR Cannon head balance interface, high dynamic range of 100dB
► Automatic high-pass filtering, isolation of DC offset
► Intelligent noise control system. For soft rising or falling slant waves and analog noise with 100dB SNR in blast-free operation
► Audio interface is in level 3 lightning protection, up to iec61000-4-5 (8/20μs) differential mode :6KV
► Single and multi-mode compatible, multi-mode transmission distance is 1KM, single-mode transmission distance 20KM, supporting customized transmission distance of up to 100KM
► LED status indicator to monitor the running status of the device
► Plug and play, no setup required
► Devices are used in pair. Note that devices are distinguished between transmitter and receiver
|
Fiber Optical interface |
|
|
Wavelength |
1310nm & 1470~1610nm (selection is based on device function) |
|
Tx Power |
> -7dB |
|
Optical Fiber |
9/125um single mode |
|
Rx sensitivity |
> -24dBm |
|
Optical connector |
FC in default (ST /SC /LC is optional) |
|
Distance |
0~20KM(SM), 40KM/60KM/80KM is optional. |
|
XLR Balanced Audio |
|
|
Number of Channel |
2-Channel Bi-Directional (Forward+Backward) |
|
Input Connector |
XLR Carnon Head Female (Transmitter) |
|
Output Connector |
XLR Carnon Head Male (Receiver) |
|
Signal Level |
0.5-4Vp-p |
|
Dynamic bandwidth |
101 dB |
|
THD (Total Harmonic Distortion) |
-90 dB |
|
Sampling Frequency |
192 KHz |
|
Audio A/D sampling |
24 Bit |
|
SNR (Signal to Noise Ratio) |
100 dB |
|
Amplitude Frequency Characteristic |
≤±0.5dB |
|
Audio Input/Output Impedance |
600 Ω balance |
|
Audio Maximum Input/Output Voltage |
0~4V / 0~2.5V |
|
Audio Gain |
±0.1dB |
|
Maximum Input Level |
≥9.5 dBm |
|
Non-linear Distortion |
≤0.2% |
|
Electrical |
|
|
Power adaptor |
DC 12V@1A |
|
Power consumption |
<10W |
|
LED Indicator |
|
|
PWR |
Power |
|
Fiber |
Fiber |
|
Mechanical |
|
|
Dimensions (LxWxH) |
167 x 113 x 44 mm |
|
Net Weight |
1.5KG/pair |
|
Casing |
Metal Case |
|
Mounting Options |
Wall Mount or Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：UF-XLR-2BA 2Ch BIDI XLR Audio Fiber Converter Datasheet V1.0.pdf Size： 798KB
|
Model |
Description |
|
UF-XLR-2BA |
2-Channel Bi-Directional XLR Audio, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
