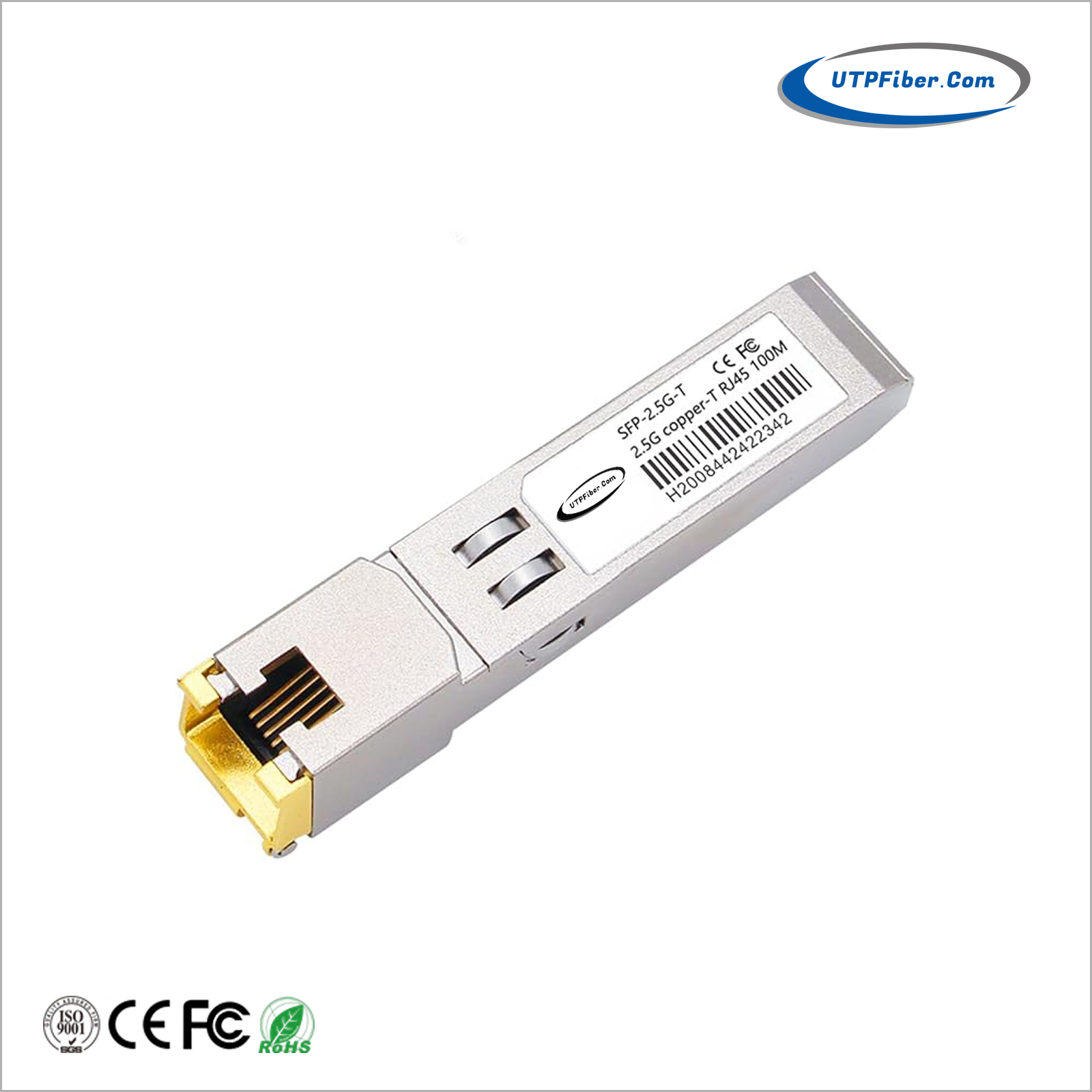

2.5G Copper SFP Transceiver

Model:UF-SFP-2.5G-T

  • Cheap 2.5GBASE-T SFP transceiver replacement for Generic SFP-2.5G-T with genuine-like quality
  • Link length up to 50m using Cat6a cable
  • Backward compatibility: Supports 100Base-T/1000Base-T/2.5GBase-T on line port
  • Low Power Consumption (1.5W @ 50m)
  • Support 2.5Gbase-X on the host port
  • Provides Low-cost solution for copper network edge applications
  • RJ-45 connector

Generic SFP-2.5G-T Compatible 2.5GBASE-T SFP Transceiver Module (Copper, 100m, RJ45)

This 2.5GBASE-T SFP copper transceiver module offers a cheap replacement for Generic SFP-2.5G-T without lowering the quality of your network connectivity. Manufactured by a third party, this compatible transceiver has been programmed and tested to work as the original Generic SFP-2.5G-T 2.5GBASE-T SFP module but at a very affordable price. The compatible SFP-2.5G-T works perfectly with Generic network switches, routers, firewalls, security gateway, fiber media converter, servers, NAS, accelerator card, network adapters and interface card (NICs). It’s specifically designed for high-speed 2.5GBase-T / 1000Base-T/100Base-T Ethernet communication over Cat5e/Cat6a cable. This 2.5GBase-T transceiver uses the SFP’s RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP’s TX_DISABLE pin, PHY IC be reset.

In the ingress direction, the entire packet is fully buffered prior to being transmitted out of the Host port at 2.5Gbps.  In the egress direction, the 2.5Gbps packet is buffered since the line port at a slow speed,  the egress packet should be throttled to match the lower speed by extending the IPG between packets. flow control can be enabled on the host side MAC to limit the flow of packets.


2.5G Copper SFP Transceiver, 2500BASE-X SFP Transceiver, 2.5GBASE-T Copper SFP, 2.5G Copper SFP Modules, 100/1000/2500base-T Transceiver, 100/1000/2500M Ethernet SFP, Copper SFP Transceiver, Gigabit Ethernet SFP Transceiver, 100/1000/2500base-T Copper SFP, 2500m Copper Ethernet Transceiver



  • Cheap 2.5GBASE-T SFP transceiver replacement for Generic SFP-2.5G-T with genuine-like quality
  • Link length up to 50m using Cat6a cable
  • Backward compatibility: Supports 100Base-T/1000Base-T/2.5GBase-T on line port
  • Low Power Consumption (1.5W @ 50m)
  • Support 2.5Gbase-X on the host port
  • Provides Low-cost solution for copper network edge applications
  • RJ-45 connector


Form Factor SFP   Data Rate 2.5GBASE-T
  Wavelength N/A   Cable Type Cat5e/Cat6a cable
  Max Distance 50 m   Optical Components N/A
  Transmitter Power N/A   Extinction ratio N/A
  Receiver Sensitivity N/A   Receiver Overload N/A
  Connector 1 – RJ-45 Female   Digital Diagnostic Monitoring Yes
  Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C
  Weight 0.03 kg
  Application 2.5G Ethernet over category 5e/6a twisted-pair copper cabling

Enterprise data centers and server consolidations

Low-cost campus backbones

  Compliance SFF-8431 MSA
SFF-8432 MSA
IEEE 802.3az Ro
  • Download FileName:UF-SFP-2.5G-T Copper SFP Transceiver Datasheet V1.0.pdf Size: 463KB
Model Description
UF-SFP-2.5G-T 2.5GBASE-T SFP Copper RJ-45 100m Transceiver
