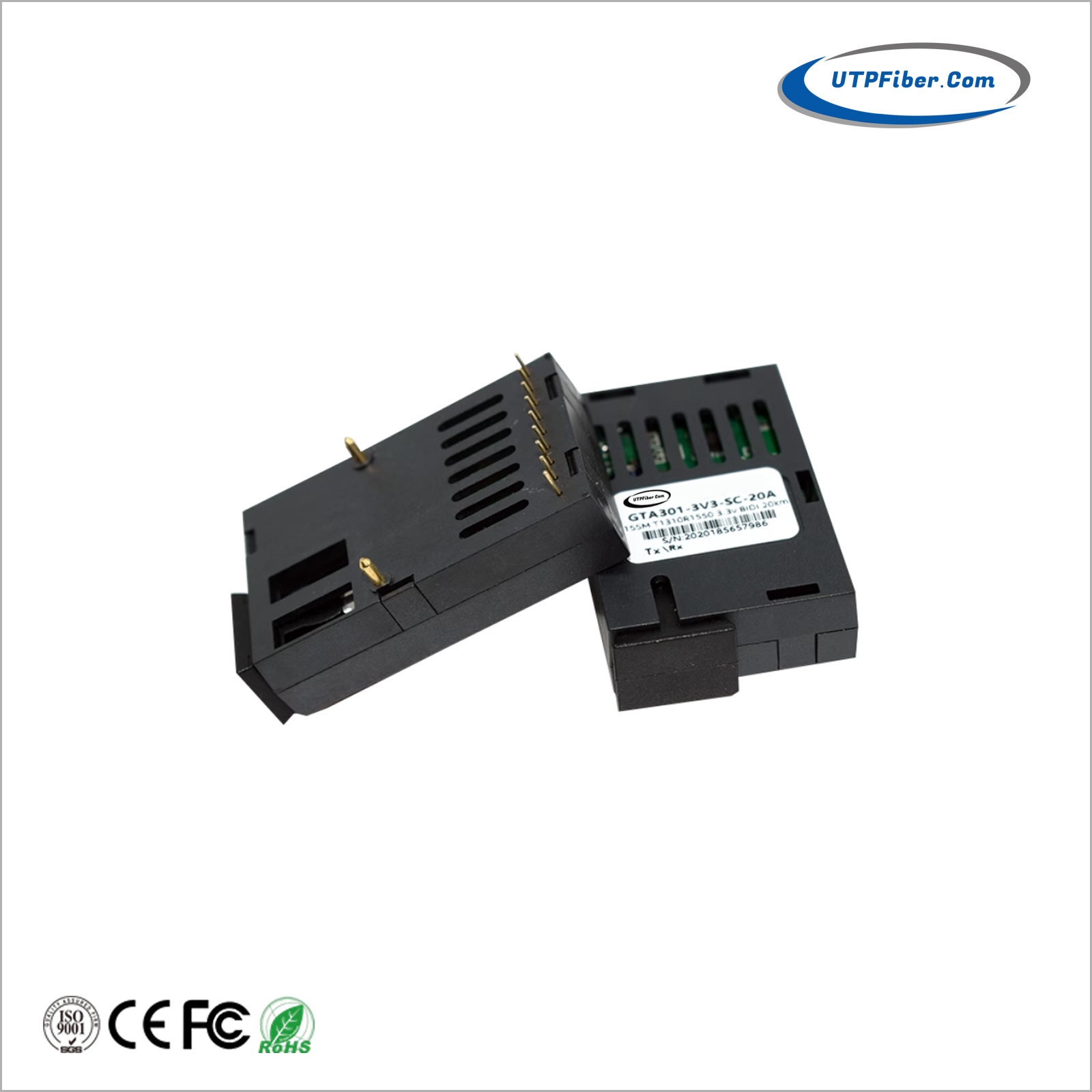

155M Single Fiber BIDI 1x9 Optical Transceiver

Model:UF-BD9-100M Series

SC/FC/ST receptacle optical interface
Standard 1×9 package，and the pin configuration is compatible with the Multisource Agreement
+3.3V Power Supply
Standard PECL data output with signal detect indication
Transmitter section Selects 1310nm FP \1550nmFP LD or 1490nm DFB\1550nm DFB

上一张

下一张

The 1x9 transceiver supports 155Mbps and up to 120Km transmission distance with SMF. The transceiver consists of two sections: The transmitter section incorporates a DFB laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).

SC/FC/ST receptacle optical interface
Standard 1×9 package，and the pin configuration is compatible with the Multisource Agreement
+3.3V Power Supply
Standard PECL data output with signal detect indication
Transmitter section Selects 1310nm FP \1550nmFP LD or 1490nm DFB\1550nm DFB

Applied to optical fiber transmission systems,such as SDH and digital video optical terminal devices with bit rate up to 155Mbps

参数·Parameter	条件 Condition	最小值Min	典型Typical	最大值Max	单位Unit
波长·Wavelength	1310	1270	1310	1350
	1490	1480	1490	1500	nm
	1550	1530	1550	1570
速率·Data Rate	A/B	-	155	-	Mb/s
信号电平·Signal Level	LVPECL	-	1.5~2.3	-	-
极限值·Absolute Maximum Ratings：
存储温度·Storage Temperature	-	-40	-	+85	℃
工作温度·Operating Temperature	商业级(Commercial)	0	-	+70	℃
工作温度·Operating Temperature	工业级 (Industrial)	-40	-	+85	℃
引线焊接温度·Soldering Temperature	-	-	-	260	℃
引线焊接时间·Soldering Time	-	-	-	10	S

Download FileName：UTP 155M 1x9 BIDI Optical Module Datasheet V1.0.pdf Size： 802KB

型号 Model	速率 Data rate	激光器 LD	波长和模式Wavelength and Mode	发射光功率 Po（dBm）	接收灵敏度Sen（dBm）	距离Distance
BD9-100M35-20	155Mb/s	FP	SM 1310nm	-12~-5	≤-32	20km
BD9-100M53-20			SM 1550nm
BD9-100M35-40	155Mb/s	FP	SM 1310nm	-7~-3	≤-34	40km
BD9-100M53-40			SM 1550nm
BD9-100M35-60	155Mb/s	DFB	SM 1310nm	-2~+2	≤-34	60km
BD9-100M53-60			SM 1550nm
BD9-100M45-60	155Mb/s	DFB	SM 1490nm	-5~0	≤-34	60km
BD9-100M54-60			SM 1550nm
BD9-100M45-80	155Mb/s	DFB	SM 1490nm	-2~+2	≤-34	80km
BD9-100M54-80			SM 1550nm
BD9-100M45-100	155Mb/s	DFB	SM 1490nm	-2~+3	≤-35	100km
BD9-100M54-100			SM 1550nm
BD9-100M45-120	155Mb/s	DFB	SM 1490nm	0~+5	≤-35	120km
BD9-100M45-120			SM 1550nm

155M Single Fiber BIDI 1x9 Optical Transceiver

Model:UF-BD9-100M Series
