4K@30HZ HDMI 1x4 Splitter Extender - 328 ft (100m)

Model:UF-HS104-100T/R

►     Supports up to 4K@30Hz resolution

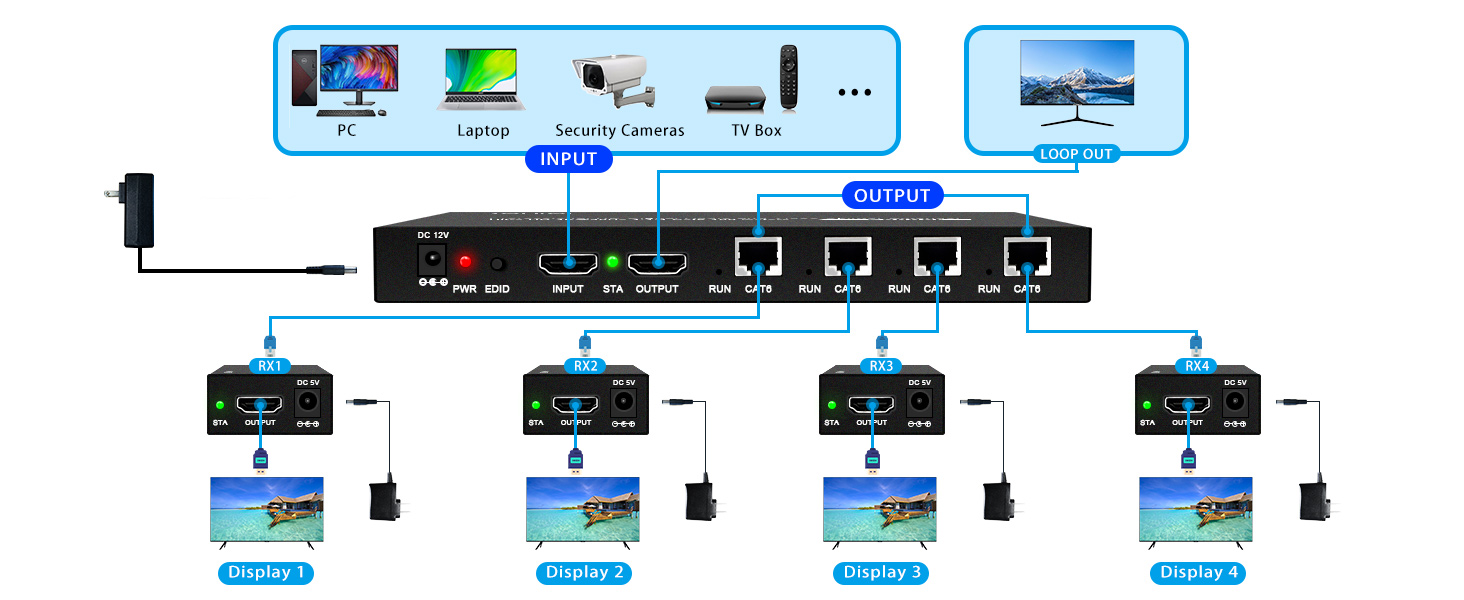

►     Split 1 HDMI input to 4 HDMI outputs and extend the signal up to 328ft (100m) away using the CAT6 network cables

►     Plug and Play

►     EDID Copy function

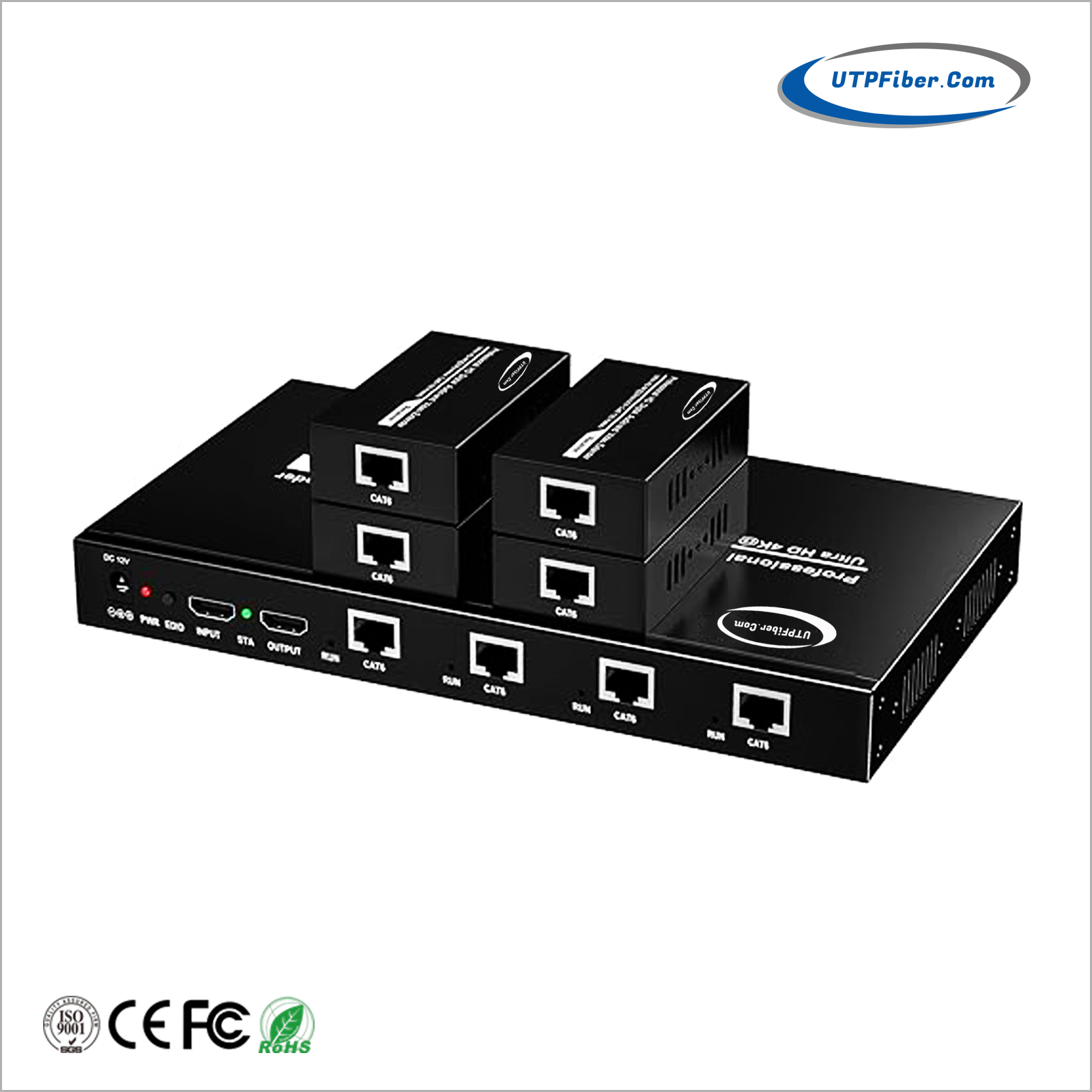

This 4K@30HZ HDMI 1x4 Splitter Extender includes a transmitter unit (TX) and four receiver units (RX). It allows for transmission and extension uncompressed full HD 4K@30Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 100 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports EDID Copy Function and local loop-out. This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.

It distributes your HDMI 4K source signal to up to 4 different remote displays simultaneously with our 1x4 HDMI splitter extender. It's perfect for gaming consoles like PlayStation and Xbox, Blu-Ray players, set-top boxes and streaming devices like Apple TV, Roku and Fire TV.

4K@30HZ HDMI 1x4 Splitter Extender - 328 ft (100m), 100m 4K@30Hz HDMI Extender Splitter 1 in 4 Out, HDMI Extender Splitter 1 x 4, 1x4 4K HDMI Extender Splitter, 4K@30Hz 100M(328fts) HDMI Splitter, 4K@30Hz 1x4 HDMI Extender Splitter, HDMI Extender Splitter Over Cat6/7 up to 100M, 4-Port HDMI Over Cat6 Splitter + Receivers, 4K HDMI 1x4 Splitter Extender Kit, 4K 1x4 HDMI Extender Splitter Balun, 4K30 1x4 Video Splitter and Extender

►     【4K UHD】This HDMI splitter extender supports up to 4K@30Hz resolution,Lossless transmission and zero latency ,delivering stunning visuals with crystal-clear detail.

►     【Split and Extend】Split 1 HDMI input to 4 HDMI outputs and extend the signal up to 328ft (100m) away using the CAT6 network cables.

►     【Plug and Play】No software or drivers required, simply plug and play for easy setup and use. Comes with mounting clips and screws, easily attach it to any surface.

►     【EDID Copy function】Connect the transmitter to the input device and follow simple steps then it can copy the EDID of the input device, greatly improving device compatibility.

►     【Local Loop Out】Allows you to connect a local display device, then can preview or monitor the transmit content without disrupting the main signal.

►     【Indicator design】Both TX and RX have indicators, which means you can know the working status of the entire system in real-time, and no need to manually troubleshoot problems any more when encountering them.

►     【Reliable Performance】Built with high-quality materials, this HDMI splitter extender offers reliable performance and long-lasting durability.

Video

HDMI Compliance

HDMI 1.4b

HDCP Compliance

HDCP 1.2

Maximum Pixel Clock:

225MHz Digital

Maximum Data Rate:

10.2 Gbps

Resolution:

Up to 4Kx2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz

Color Space:

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth:

10-bit, 12-bit, 16-bit

Audio Formats:

PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

ESD Protection:

Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

Impedance:

100Ω

Connector:

HDMI-A [19-pin female]

HDMI Cable:

Less than 5m at 3840*2160@30Hz

UTP

Interface:

RJ45 (IEEE - 568b connectioN)

Transmission Distance:

CAT6/7--- 120m at 3840*2160@30Hz

NOTE: Distance depends on the characteristics and quality of the cables and the type of HDMI source and display. Higher resolutions and longer transmission distances require low-skew cables (<25 ns/100 m) for best performance. We recommend using unshielded solid core CAT6/7 cable.

Network Cable:

Low resistance and consumption oxygen-free copper core (CAT6, CAT6A or CAT7)-UTP

Environmental

Operating Temperature:

-5°C to 70°C (23°F to 158°F)

Storage Temperature:

-40°C to 80°C (-40°F to 176°F)

Relative Humidity:

5% to 95% non-condensing

Storage Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

Transmitter: DC 12V/2.5A

Receiver: DC 5V/1A

Power Consumption:

Transmitter: 14W max.

Receiver: 4W max.

LED Indicators

PWR:

Power Status

STA:

Signal Status

Dimensions (WxDxH):

Transmitter: 210mm (W) × 100mm (D) × 25mm (H),

Receiver: 88mm (W) × 61mm (D) × 18mm (H)

Weight:

Transmitter: 617g,

Receiver:155g

Casing:

Aluminum Case

Mounting Options:

Desktop, Wall Mount

Regulatory Approvals

CE, RoHS, FCC

  • Download FileName:UF-HS104-100 100M 4K HDMI 1x4 Splitter Extender Datasheet V1.0.pdf Size: 564KB

Model

Description

UF-HS104-100

100M 4K@30Hz HDMI 1x4 Splitter Extender (1xTX, 4xRX), - 328 ft (100m)

Mounting Options:

► Transmitter; Desktop, wall mountable

► Receiver; Desktop, rack mountable

Power Options:

► 1 Transmitter: DC 12V/2.5A

► 4 Receiver: DC 5V/1A
