This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.

    The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.

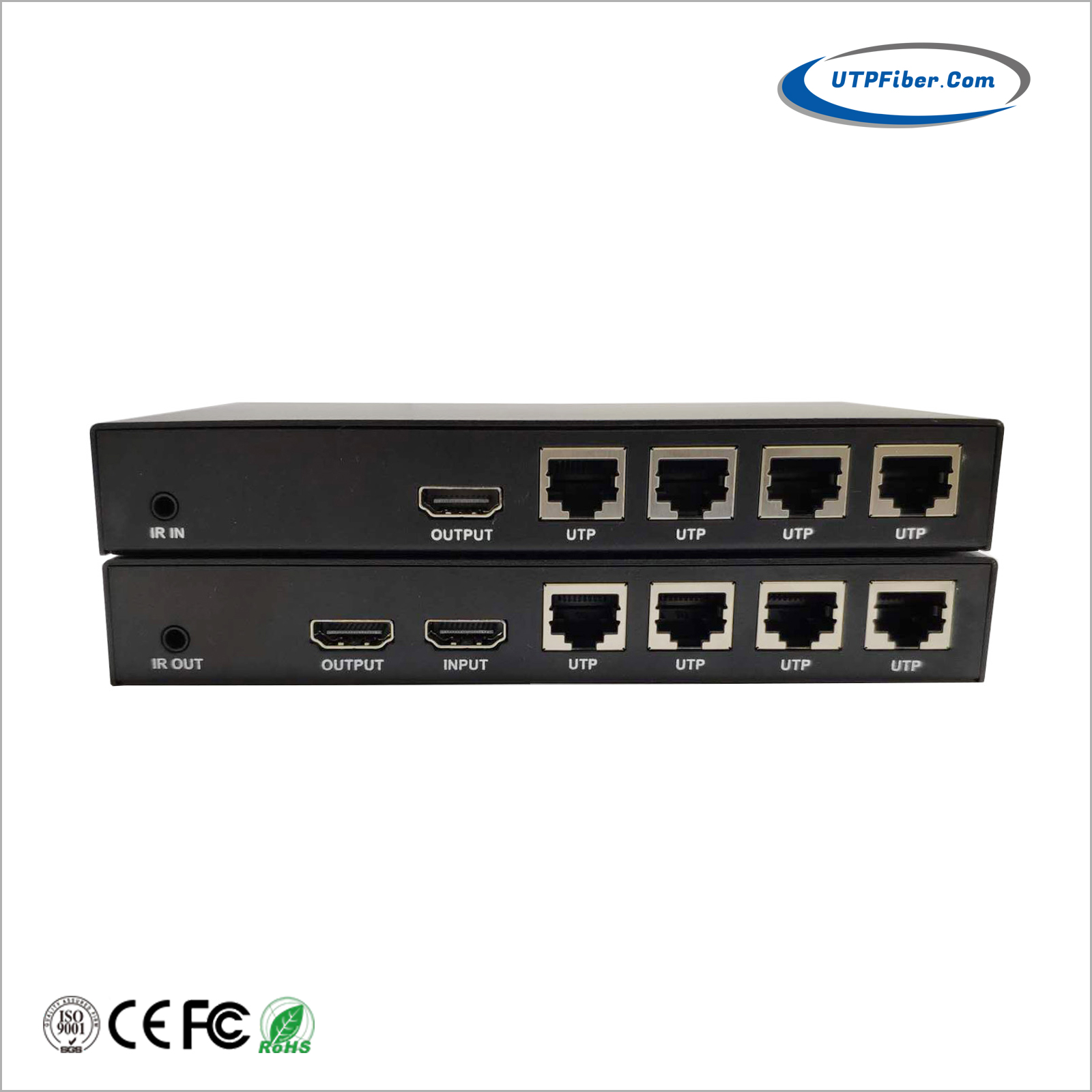

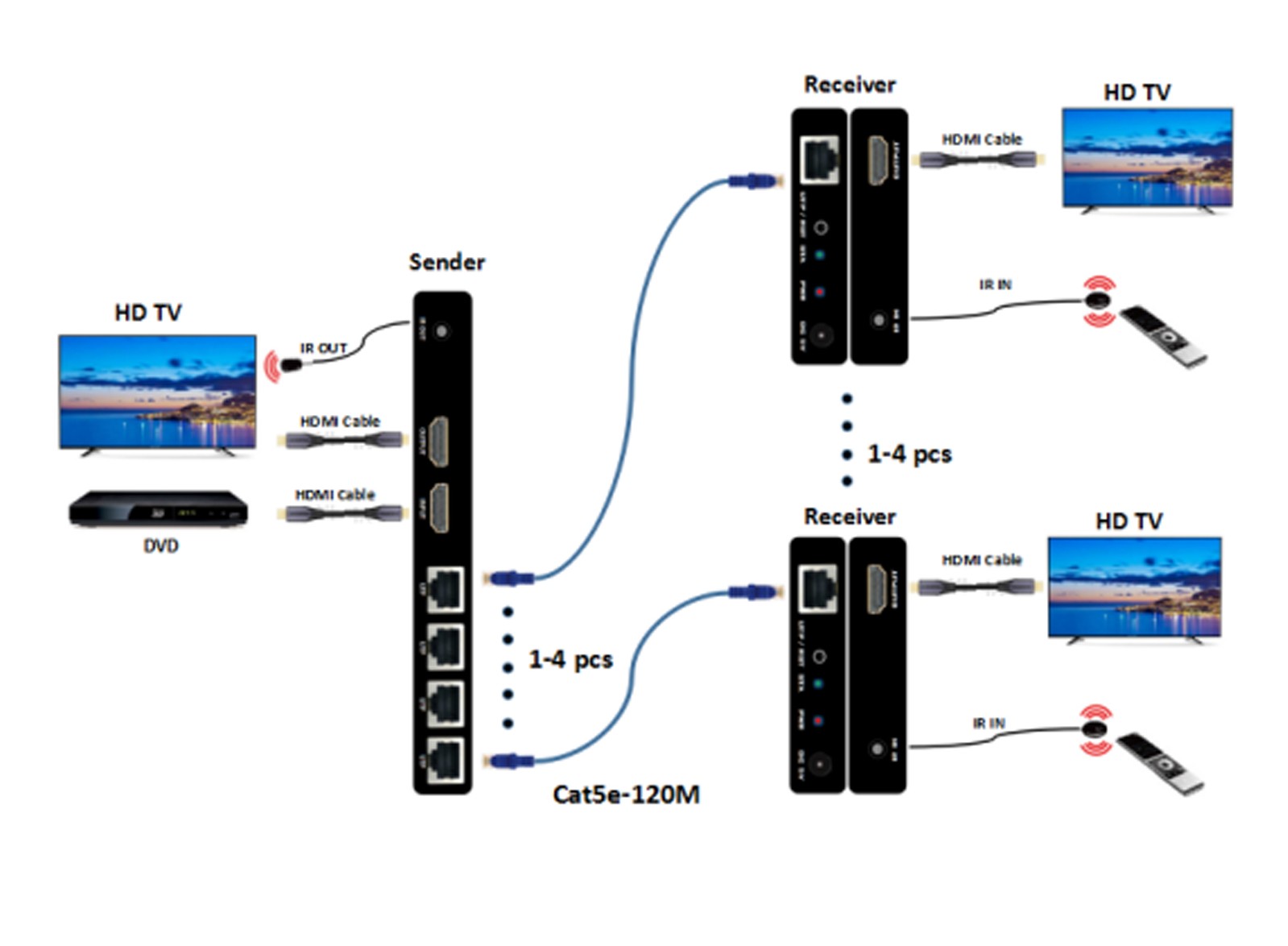

• Sender has 4 RJ45 port , support 1 to 4 receivers transmit,RX have 4 rj45 port.

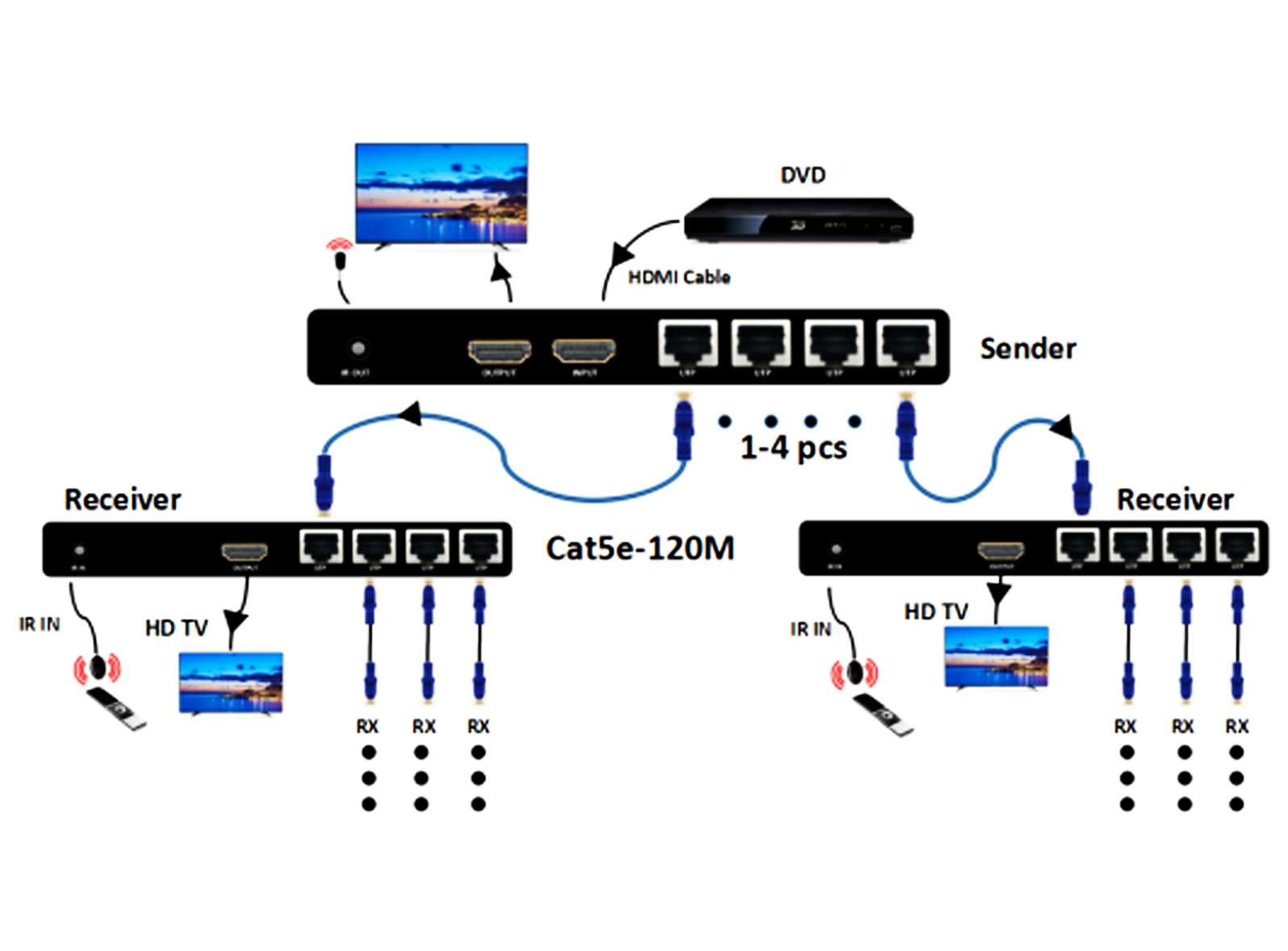

• Support cascade function.
• Distance up to 120m over UTP CAT5E/6 cable.
• Video resolution max up to 1920*1080@60Hz.
• Support IR(38khz) signal pass back control .
• HDMI 1.3 and HDCP 1.2 standard.
• High compatibility, can auto-match source and display device.
• Built-in automatic adjustment system, make the image smooth, clear and stable.
• Built-in ESD protection system; Simple to install, plug and play.
• TCP/IP Ethernet communication.
• Pure Ethernet , Simple Cabling .

• Download FileName：UF-EX105HS 120M HDMI Cascade Splitter Extender over TCP IP User Manual V1.0.pdf Size： 463KB
