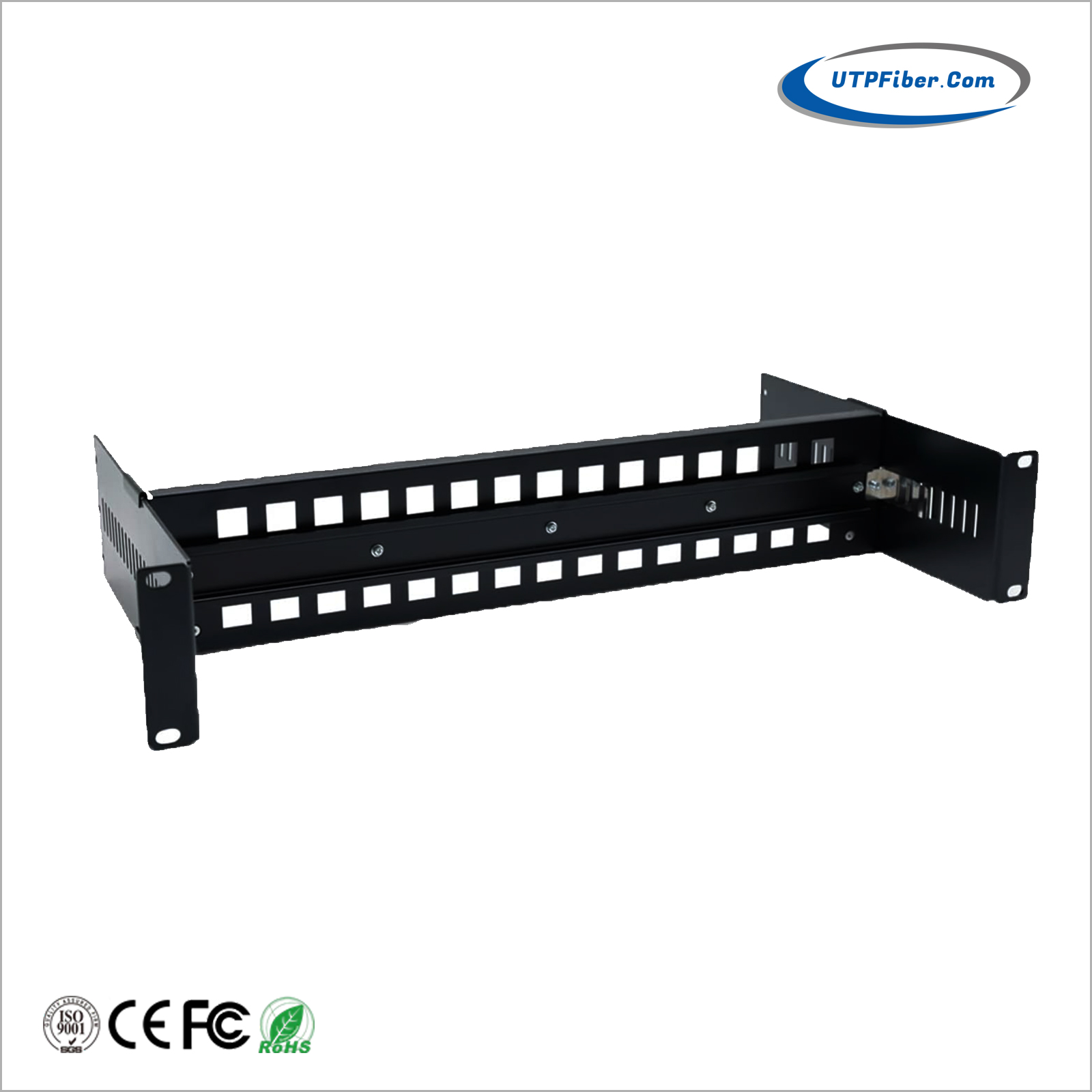

Adjustable 2U 19" Rackmount DIN Rail Bracket Kit – Black Color

Model:UF-DR19B

►     DIN-Rail devices inside a standard 19" rack or cabinet

►     Unique depth adjustment feature to fit equipment in any size

►     One standard 35mm (1.38") DIN-Rail track included

►     User-friendly design

►     Maximum load capacity 8KG

►     Adjustable in depth to fit devices from 1 to 8 inches (2.5 to 20.5cm)

The UF-DR19B black color 19" Rack Mount Adjustable DIN-rail Rack Mount Hardware is installed in a standard 19” rack cabinet to allow DIN-Rail mounted equipment to be rack mounted. The DIN-Rail Rackmount Bracket allows users to mount DIN rail industrial control devices and switches inside a standard 19" rack. The user-friendly design only takes a few seconds to easily clip on or remove DIN rail devices from the rack. The Adjustable 2U 19" Rackmount DIN Rail Kit is adjustable in depth to fit any size rack and can easily solve your installation problems.




19inch Rackmount Din Rail kit, Adjustable DIN Rail Rack-Mount Kit, Adjustable Rack Mount Din Rail Chassis, Adjustable DIN Rail Bracket, DIN Rail Mounting Bracket, Rack Mount DIN Rail Kit, 19 inch Rack Mounting Bracket with Din Rail, 19 inch Rack Din Rail Enclosure, Rack Din Rail Mounting Kit, 19" Rack Din Rail Shelf, 19 inch Rack Rail Mount Kit

►     DIN-Rail devices inside a standard 19" rack or cabinet

►     Unique depth adjustment feature to fit equipment in any size

►     One standard 35mm (1.38") DIN-Rail track included

►     User-friendly design

►     Maximum load capacity 8KG

►     Adjustable in depth to fit devices from 1 to 8 inches (2.5 to 20.5cm)

►     High Strength Aluminum Alloy Material, easy to carry, install and disassembly

►     DIN-rail Media Converters, DIN-rail Industrial PoE Switch and DIN-rail Power Supplies can be suitable for this Rack Mount Bracket


Mechanical

Material

Aluminum

Color

Black

Dimensions (W x H x D)

482.6mm x 92.2mm x 250mm

Rack Height

2U

Net Weight

1.3 kg (2.87 lbs.)

Gross Weight

1.55 kg (3.42 lbs.)

Maximum Load Capacity

8 kg (17.64 lbs.)

Standards and Certifications

RoHS

ANSI/EIA 310-E

IEC 60297-3

IEC/EN 60715

Package Contents

Rackmount DIN-Rail Chassis x 1

Rackmount Chassis Holder x 2

M3*6 Combination Screw x 1

Metal Shrapnel x 2

Packing Box x 1

Working Environment

Operating Temperature

-40~80 (-40 to 176 )

Operating Humidity

5%~90% (non-condensing)

Storage Temperature

-40~85 (-40 to 185 )


  • Download FileName:UF-DR19B Black Color 19-inch DIN-Rail Rackmount Bracket Datasheet V1.0.pdf Size: 887KB

Model

Description

UF-DR19B

19-inch DIN-Rail Rackmount Bracket for DIN-rail products, Black Color
