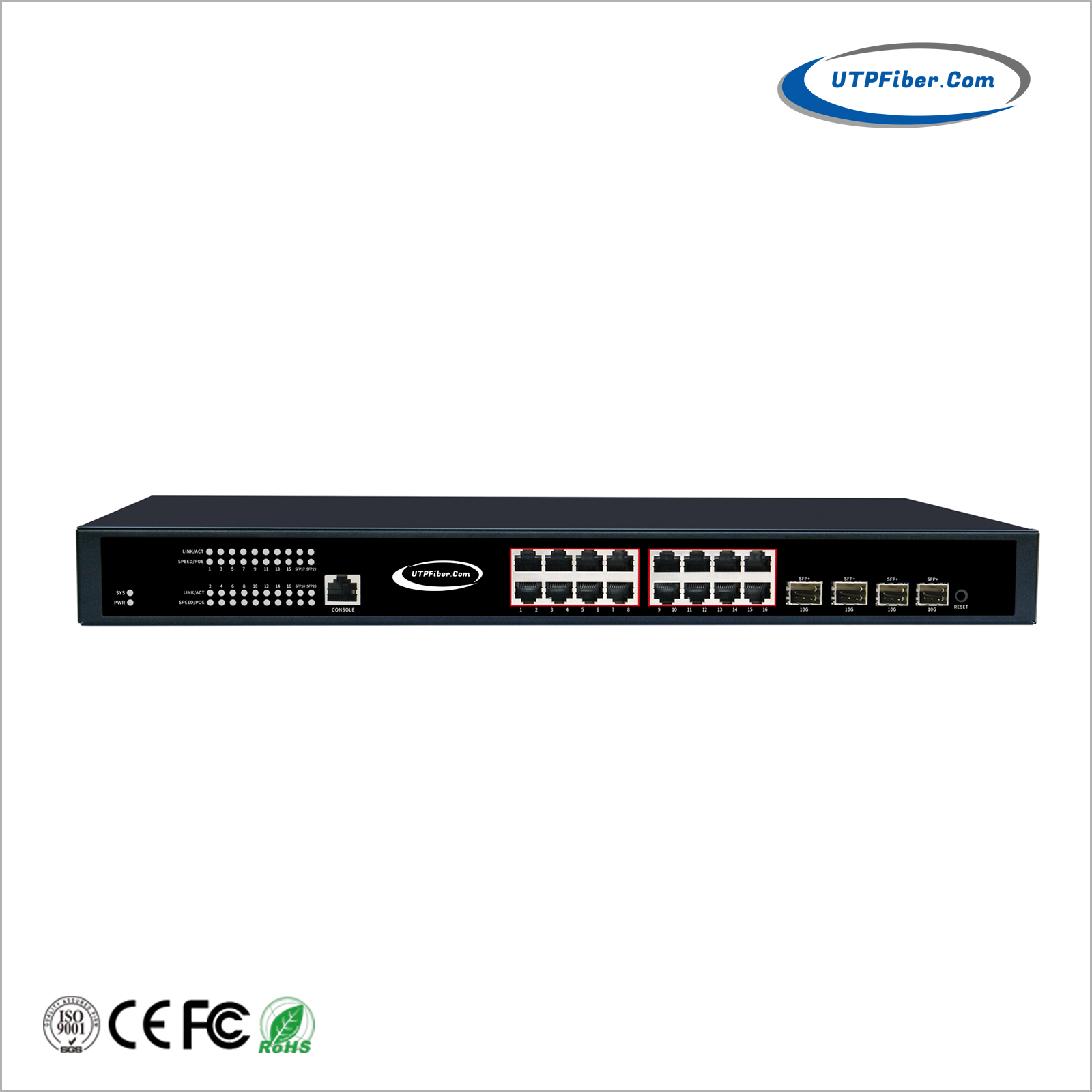

L3 Managed 16-Port 10/100/1000T 802.3at PoE + 4-Port 2.5G/10G SFP+ Ethernet Switch
Model:UF-L34X16GP
► 16-Port 10/100/1000T 802.3at PoE
► 4-Port 2.5G/10GBase-X SFP+
► RJ45 console interface for basic management and setup
► SNMP V1/V2/V3 management
UTP UF-L34X16GP Layer 3 Managed Gigabit Switch supports both IPv4 and IPv6 protocols and Layer 3 OSPFv2 dynamic routing and static routing, and provides 16 10/100/1000BASE-T ports featuring 802.3at PoE+ and 4 extra 2.5/10 Gigabit BASE-X SFP+ fiber slots. Each of the eight Gigabit ports provides 30 watts of power, with a total power budget of up to 250 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.
10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the UF-L34X16GP supports both speed and 10GBASE-SR/LR or 2500BASE-X. With its 4-port,10G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The UF-L34X16GP provides broad bandwidth and powerful processing capacity.
The switch adopts the most cutting-edge Realtek chip. This access switch delivers a compact, cost-effective solution for carrier’s IP MAN and enterprise networks. Based on the high-performance hardware and management platform, it supports function such as ACL, QinQ and QoS. It’s simple management mode and flexible installation can meet the requirement of any scenario.
► 16-Port 10/100/1000T 802.3at PoE
► 4-Port 2.5G/10GBase-X SFP+
► RJ45 console interface for basic management and setup
► Web smart management for easy application.
► Bandwidth management based on port input and output
► SNMP V1/V2/V3 management
► Support loop protection, automatic recovery
► Plug & play, no configuration required
|
Physical Port |
|
|
Port type and quantity: |
4*2.5G/10G Base-X+ 16*10/100/1000 Base-T |
|
Management Port |
Support console |
|
Power Supply |
100-240V/AC |
|
LED Indicators |
PWR，SYS，Link/ACT LED |
|
Power over Ethernet Specifications |
|
|
PoE Standard |
IEEE 802.3at PoE+ PSE Backward compatible with 802.3af PoE |
|
PoE Port |
Port 1-16 |
|
PoE Power Supply Type |
End-span |
|
PoE Power Output |
Per port 54V DC, 30 watts (max.) |
|
Power Pin Assignment |
1/2(+), 3/6(-) |
|
PoE Power Budget |
250 watts (max.) |
|
PoE Management |
Support |
|
Standard Conformance |
|
|
Regulatory Compliance |
FCC Part 15 Class A, CE |
|
Standards Compliance |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 |
|
Network Size – length of cable |
|
|
Twisted pair (TP): |
0-100 m（CAT5e,CAT6） |
|
Single mode Fiber (SMF): |
20/40/60/80/100 km |
|
Multimode Fober (MMF): |
550 m |
|
Network Topology |
|
|
Ring topology |
Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
Hybrid topology |
Support |
|
Electrical Specifications |
|
|
Input voltage |
AC 100-240V 50/60Hz |
|
Power consumption: |
≤40W |
|
Layer 2 Switching |
|
|
Switching capacity |
128G |
|
Packet forwarding rate |
95.23Mpps |
|
MAC address table |
16K |
|
Buffer |
12M bit |
|
Forwarding delay |
<10us |
|
MDX/MIDX |
Support |
|
VLAN |
4K |
|
Jumbo frame |
12K bytes |
|
GVRP VLAN |
Support |
|
Protocol VLAN |
Support |
|
Voice VLAN |
Support |
|
Surveillance VLAN |
Support |
|
MAC VLAN |
Support |
|
Ethert channel/ 802 .3ad |
Support |
|
LACP |
Support |
|
Interface Speed |
Support |
|
Duplex Mode |
Support |
|
Flow Control |
Support |
|
Jumbo frame |
Support |
|
DHCP Client |
Support |
|
SNTP Client |
Support |
|
Port Statistics |
Support |
|
Protected Ports |
Support |
|
EEE |
Support |
|
Ethernet Ring Protection Switching |
Support |
|
LLDP |
Support |
|
LLDP 802.1 TLV |
Support |
|
MSTP / RSTP / STP |
Support |
|
STP BPDU Filter |
Support |
|
STP BPDU guard |
Support |
|
STP Port Fast |
Support |
|
IGMP Snooping |
Support |
|
MLD Snooping |
Support |
|
MVR |
Support |
|
DHCP Server |
Support |
|
Layer 3 Route |
|
|
IPV4 management |
Support |
|
IPV6 management |
Support |
|
Dynamic Routing |
OSPF, RIP |
|
Static Routes IPv6 |
Support |
|
ARP |
Support |
|
Loopback Interface |
Support |
|
Convergence |
|
|
ACL |
Support MAC Standard/Extended ACL Support IPV4 Standard/Extended ACL Support IPV6 Standard/Extended ACL |
|
QoS |
Support QoS Remarking Support Port Trust Support Port bandwidth Support egress queuing bandwidth Support SP，WRR Support COS，DSCP，IP Priority |
|
|
|
|
Management |
|
|
User Management |
Support |
|
System Log |
Support |
|
Upgrade Firmware |
Support |
|
Configuration File Download/Upload |
Support |
|
SNMP |
Support SNMP V1/V2/V3 |
|
WEB |
Support |
|
Console |
Support |
|
CLI |
Support |
|
Telnet/SSH |
Support |
|
RMON |
Support |
|
Security |
|
|
management channel configuration |
Support |
|
AAA |
Support |
|
802.1X |
Support |
|
MAC-Based |
Support |
|
WEB-Based |
Support |
|
DoS |
Support |
|
ARP |
Support |
|
DHCP Snooping |
Support |
|
IP Source Guard |
Support |
|
Port Security |
Support |
|
Protected Ports |
Support |
|
Storm control |
Support |
|
Equipment diagnosis |
|
|
Console log |
Support |
|
RMA log Flash log |
Support |
|
Port Mirror |
1: 1 or 1: M |
|
Ping |
Support |
|
Traceroute |
Support |
|
Fiber module info |
Support |
|
UDLD protocol |
Support |
|
Environment |
|
|
Operate temperature |
-10ºC to 50ºC |
|
Storage temperature |
-40ºC to 70ºC |
|
Relative humidity |
Working humidity 10% to 90% RH Storage humidity 5% to 90% RH |
|
Heat Dissipation Method |
Fan |
|
MTBF |
100,000H |
|
Mechanical Dimensions |
|
|
Dimensions (WxHxD): |
440*280*44mm (W*D*H) |
|
Mounting |
Standard Rack Mounted |
|
Weight |
4.2kg |
|
EMC & INGRESS PROTECTION |
|
|
Surge protection for power |
Common mode 6KV; differential mode: 4KV |
|
Surge protection for Ethernet port |
Common mode 6KV; differential mode: 4KV |
|
ESD |
Air 8K, contact 15K |
|
Free fall |
0.5m |
|
Accessories |
|
|
Accessories |
Device, Power cord, User manual |
- Download FileName：UF-L34X16GP 16-Port 1000T + 4-Port 2.5G or 10G SFP+ L3 Managed PoE Switch Datasheet V1.0.pdf Size： 473KB
|
Model |
Description |
|
UF-L34X16GP |
L3 16-Port 10/100/1000T 802.3at PoE + 4-Port 2.5G/10G SFP+ Managed Switch, PoE Power Budget: 250W |
|
Mounting Options |
► Desktop or Rack-mounted |
