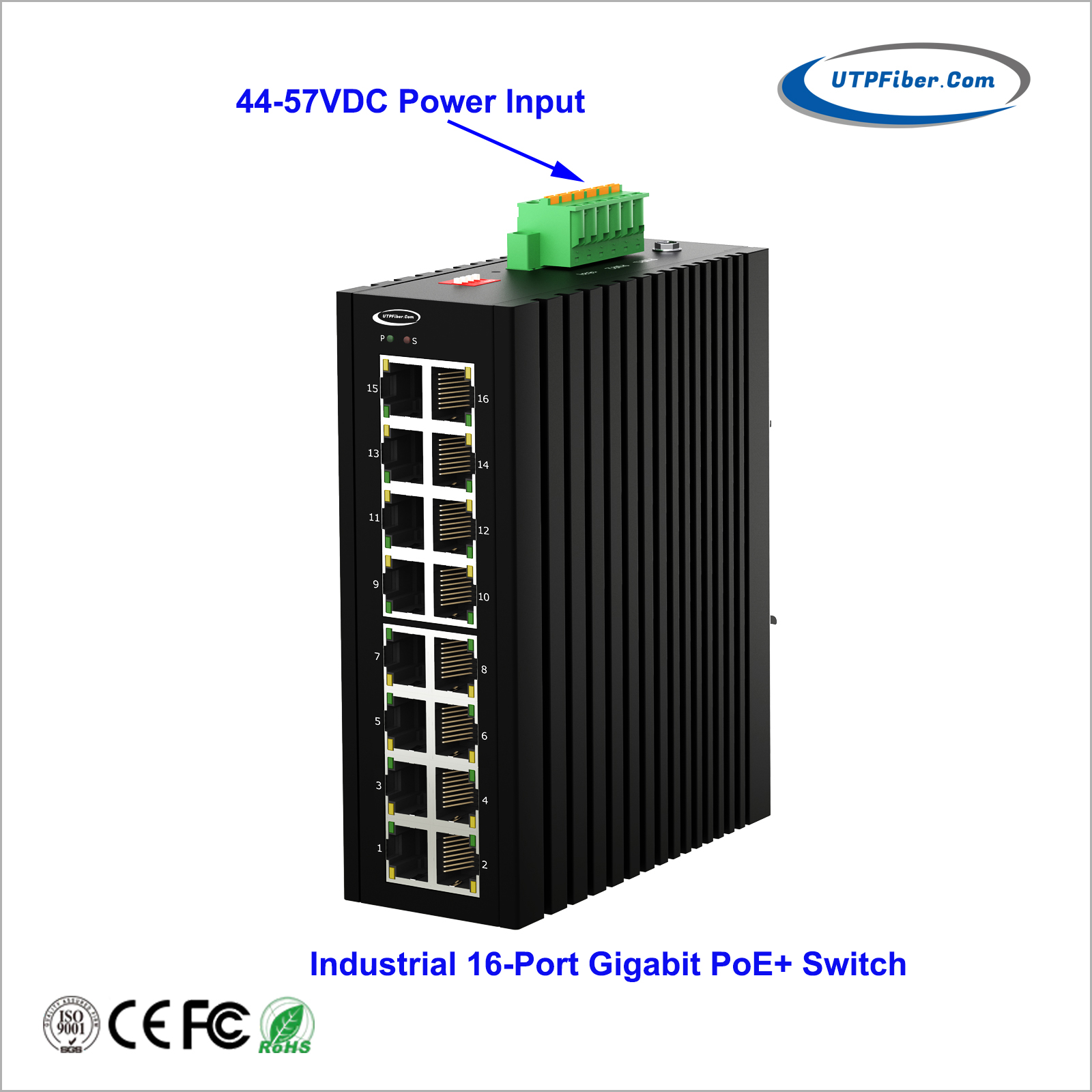

Industrial 16-Port 10/100/1000T 802.3at PoE+ Switch
Model:UF-IES016GP
► 16*10/100/1000Base-T RJ45 PoE/PoE+ ports
► DC 44-57V input, redundant power supply with polarity reverse/over-voltage protection
► Support one output relay alarm (terminal block Pin 5/6)
► Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
► Support powerful Dip switch function: 1.Port isolation; 2. 250m long distance(1-4 ports); 3. QoS(1-2 ports) ; 4.PoE watchdog
► IP40 fan-less and Din-rail hardware design
The UTP UF-IES016GP is the highly reliable industrial PoE switch with 16-port 10/100/1000-T PoE/PoE+. It complies with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, it is also featuring with port isolation, 250m long distance transmission mode(1-4 ports), QoS(1-2 ports) and PoE watchdog function, which all can be configured by the Dip switch on the top panel.

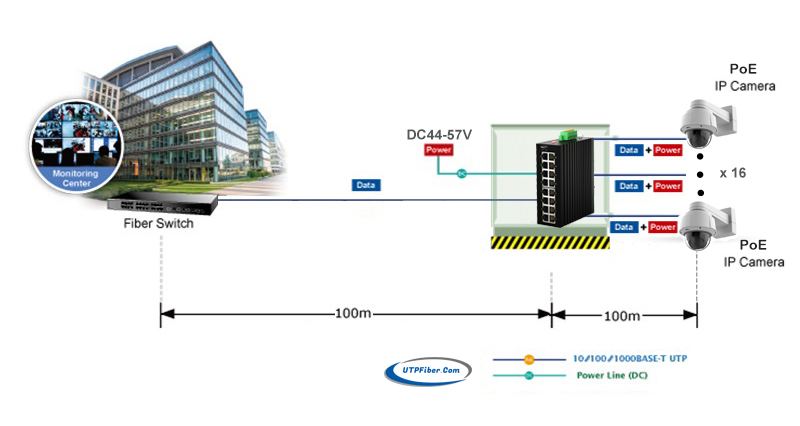

UF-IES016GP is a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and crucial.
► 16*10/100/1000Base-T RJ45 PoE/PoE+ ports
► DC 44-57V input, redundant power supply with polarity reverse/over-voltage protection
► Support one output relay alarm (terminal block Pin 5/6)
► Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
► Support powerful Dip switch function: 1.Port isolation; 2. 250m long distance(1-4 ports); 3. QoS(1-2 ports) ; 4.PoE watchdog
► Support 10K Bytes Jumbo frame
► Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
► IP40 fan-less and Din-rail hardware design
► Operation temperature: -40 ℃ ~+80℃
|
Model No. |
UF-IES016GP |
|
|
Interface |
Fiber ports |
Copper RJ45 ports |
|
0 |
16 |
|
|
Ethernet |
16*10/100/1000Base-T PoE/PoE+ |
|
|
Alarm port |
One relay output for power failure. Alarm relay current carry ability: 1A@24VDC |
|
|
Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE |
|
|
Dip Switch |
1. Port isolation 2. 250m long distance mode(1-4 ports) 3. QoS(1-2 ports） 4. PoE watchdog |
|
|
LED Indicators |
||
|
P(Power indicator) Green |
Off: the device is power off or failed |
|
|
On: the device power on is normal |
||
|
S(PoE usage indicator) Red |
Off: total PoE usage ＜rated 50% |
|
|
Blinking: rated 50%＜total PoE usage＜rated 90% |
||
|
Normal on: total PoE usage≥rated 90% |
||
|
1-16 (Copper ports) |
Green indicators |
Yellow indicators |
|
Off: ports link down |
||
|
On: ports link up |
On: PoE working |
|
|
Blinking: receiving data |
|
|
|
Power parameters |
||
|
Input voltage |
44-57VDC, redundant power input |
|
|
Input current |
0.7A Max |
|
|
Total power consumption |
Full loading without PoE ≤8W PoE power budget ≤240W |
|
|
Connector |
Removable 6-pin terminal block, pin 5/6 for relay alarm output |
|
|
Reverse polarity protection |
Support |
|
|
Over-voltage protection |
Support |
|
|
Over-current protection |
Support |
|
|
Switching features |
||
|
Switching capacity |
32G |
|
|
Packet forwarding rate |
47.6Mpps |
|
|
MAC address table |
8K |
|
|
VLAN |
4K |
|
|
Buffer |
2M |
|
|
Forwarding delay |
<5us |
|
|
Jumbo Frame |
Support 10Kbytes |
|
|
MDX/MIDX |
Support |
|
|
Watchdog |
Support |
|
|
Network Topology |
||
|
Star topology |
Support |
|
|
Bus topology |
Support |
|
|
Tree Topology |
Support |
|
|
Mechanical structure |
||
|
Case protection |
IP40 |
|
|
Installation method |
Din-rail |
|
|
Dimension(W*D*H)mm |
54*115*158mm |
|
|
Weight |
1.39 Kg |
|
|
Operating environment |
||
|
Operating temperature |
-40℃~+80℃ |
|
|
Storage/transportation temperature |
-40℃~+85℃ |
|
|
Relative humidity |
5%~95%（non-condensing） |
|
|
Industry standard |
EMI：FCC Part 15B Class A |
|
|
Surge protection of power: IEC 61000-4-5 6KV/4KV（8/20us） |
||
|
Surge protection of Ethernet ports：IEC 61000-4-5 6KV/2KV（10/700us） |
||
|
RS: IEC 61000-4-3 80 MHz-1 GHz：10 V/m |
||
|
EFT: IEC 61000-4-4 power interface: 4K；Ethernet ports: 2K |
||
|
CS: IEC 61000-4-6 10V |
||
|
ESD: IEC 61000-4-2 Level 4（8K/15K） |
||
|
Shock: IEC 60068-2-27 |
||
|
Free fall: IEC 60068-2-32 |
||
|
Vibration: IEC 60068-2-6 |
||
|
Certification |
CCC/CE/FCC/RoHS |
|
|
Warranty |
5 years |
|
- Download FileName：UF-IES016GP Industrial 16-Port Gigabit PoE Switch Datasheet V1.0.pdf Size： 742KB
|
Model |
Description |
|
UF-IES016GP |
Industrial 16-Port 10/100/1000T 802.3at PoE Switch |
|
Mounting Options |
► DIN-Rail Mount Installation |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
