16-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port 1000X SFP Ethernet Switch
Model:UF-SW16P2G1SFP Series
► 16*10/100Mbps POE port, 2*10/100/1000Mbps UP-Link port, and 1*1000Mbps SFP port
► 100m Transmission Distance, 250m after use extend function
► Compatible with IEEE802.3AF/AT
► Whole Power: 250W (52V 4.8A)
UF-SW16P2G1SFP provides 16-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port 1000X SFP, a total 250-watt PoE budget and extra two uplink ports to fulfill the demand of sufficient PoE power for HD IP surveillance and Wi-Fi system in a small-scale but high-performance network. With the rackmount metal housing, it makes the placement of the unit convenient and provides a quick and easy PoE PDs deployment with power feeding. It's up to 250m transmission distance on extension mode under the 10Mbps.
► 16*10/100Mbps POE port, 2*10/100/1000Mbps UP-Link port, and 1*1000Mbps SFP port
► 100m Transmission Distance, 250m after use extend function
► Compatible with IEEE802.3AF/AT
► Whole Power: 250W (52V 4.8A)
► All port supported by MDI/MDIX auto flip and self-negotiation
► Supply 16pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
► Add high level lightning protection device, up to 6000V.
► Each port max. power supply reached 30W.
► Low heat design, safe and reliable, high stability

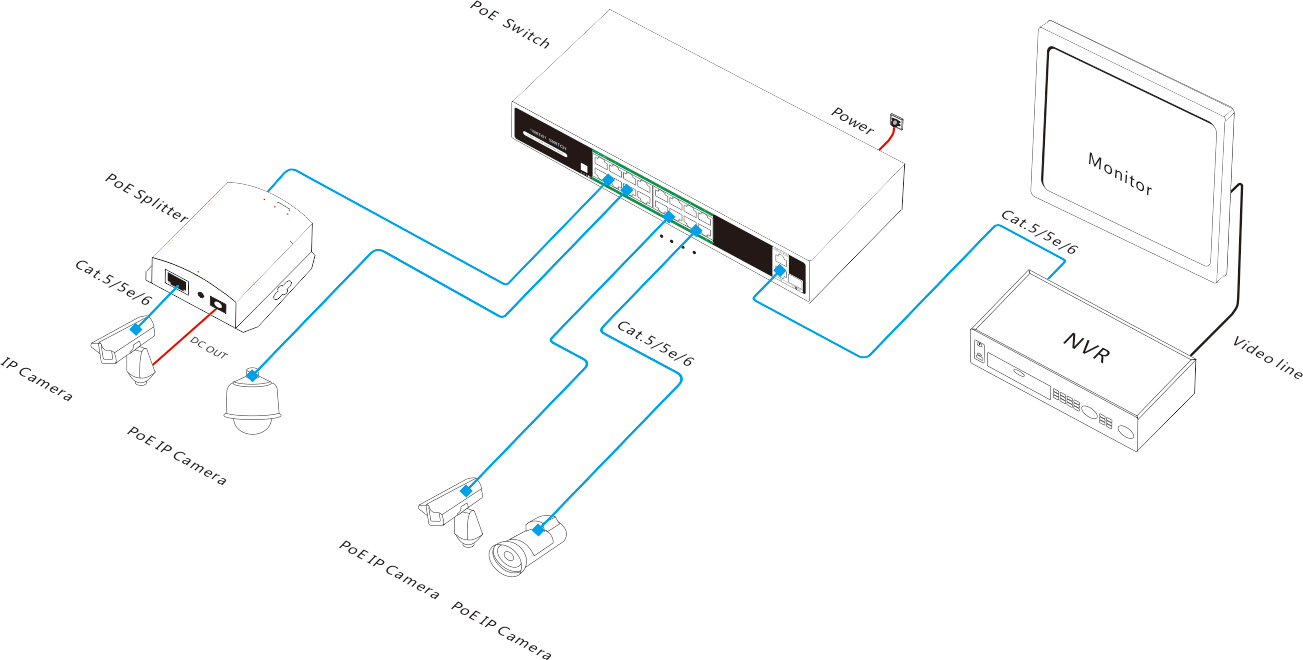

► Application: Wireless Access Point or IP Camera
|
Product Name |
16-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port 1000X SFP Ethernet Switch |
|
Product Model |
UF-SW16P2G1SFP |
|
Power Pin Assignment |
1/2(+), 3/6(-) |
|
PoE Output Power |
15.4W/30W |
|
PoE Power Budget |
250W |
|
Connector |
16*10/100mbps POE port, 2*10/100/1000Mbps UP-Link port, 1* 1000Mbps SFP |
|
Network Medium |
Cat5 (UTP) or more |
|
Transmission Distance |
0~250 Meters |
|
Extension Mode |
1-16 Port of POE power supply support Extend mode |
|
Technology |
|
|
Network Standards |
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3atf Power over Ethernet |
|
PoE power |
30W per port(IEEE802.3af/at). Wiring: Data & power provided over pairs 1/2 and 3/6 |
|
Processing types |
Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
|
Address database Table Size |
8K MAC address |
|
Backboard Bandwidth |
8.8G |
|
Network Latency |
Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
|
Power |
|
|
Input |
AC 110V-240V |
|
PoE power consumption |
30W per port (IEEE802.af/at) |
|
Overload current protection |
Present |
|
Mechanical |
|
|
Casing |
Metal |
|
Installation |
Desktop/Rackmount |
|
Interface |
|
|
LED Indicators |
System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
|
Environment specification |
|
|
Operating temperature |
-10-55℃(32-104℉) |
|
Storage temperature |
-40-70℃(14-158℉) |
|
Operating humidity |
90% maximum relative humidity, non-condensing |
|
Storage humidity |
95% maximum relative humidity, non-condensing |
|
Regulatory Approval |
|
|
ISO |
Manufactured in ISO9001 facility |
|
Safety |
CE/CCC |
|
Warranty |
2 years |
|
Dimensions |
312*185*46mm(L*W*H) |
|
Weight |
2.25Kg |
- Download FileName：UF-SW16P2G1SFP Unmanaged 16-Port 100M PoE Switch Datasheet V1.0.pdf Size： 558KB
|
Model |
Description |
|
UF-SW16P2G1SFP |
16-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port 1000X SFP Ethernet Switch (250 watts) |
|
Mounting Options |
► Desktop/Rackmount |
