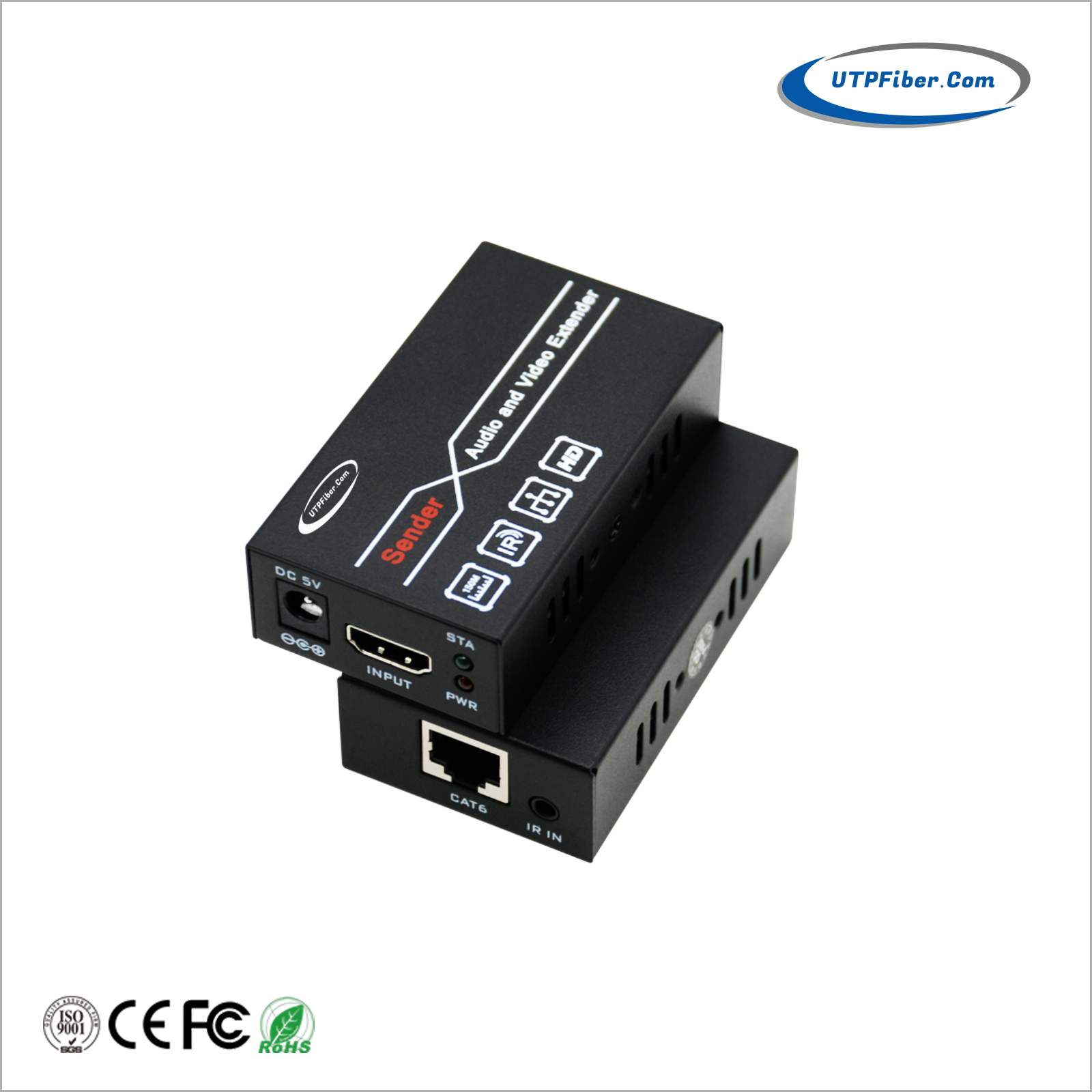

The UF-HEX-150 HDMI Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 150meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.
► Compact size and Slim design, strong anti-interference; easy installation
► Distance up to 150m over UTP CAT5E/6 cable
► Video resolution max up to 1920*1080@60Hz

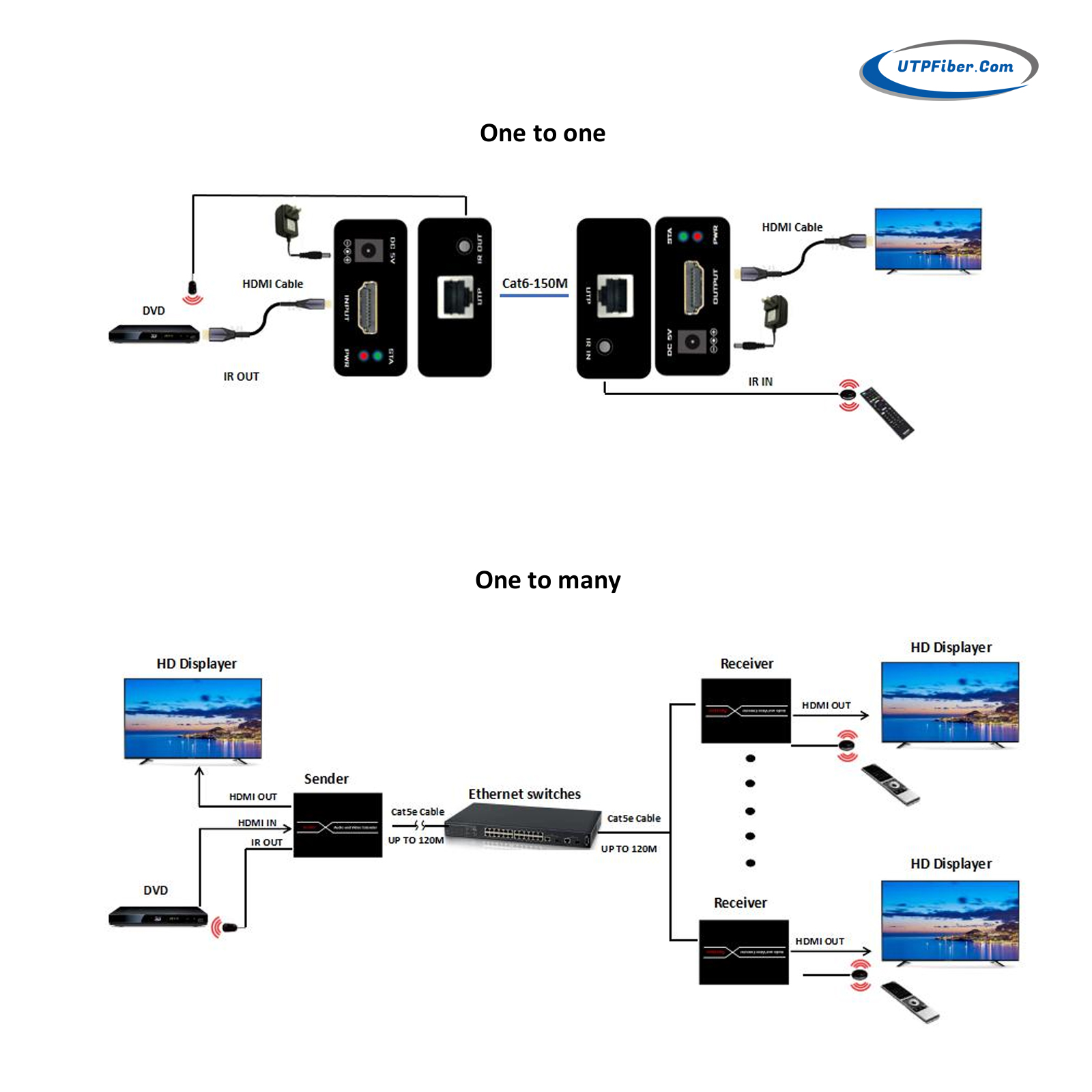

► Support 1 to many receivers transmit(253pcs RX over Ethernet switch)
► Support IR(38khz) signal pass back control
► Support HDMI 1.3 and HDCP 1.2 standard
► High compatibility, can auto-match source and display device
► Built-in automatic adjustment system, make the image smooth, clear and stable
► Built-in ESD protection system; Simple to install, plug and play
► TCP/IP Ethernet communication
► Real-Time Video/Audio Transmission over IP
► Pure Ethernet, Simple Cabling
Parameter |
Description |
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
Maximum pixel clock |
165MHz |
|
Maximum data rate |
6.75Gbps |
|
Resolution |
Max: 1920X1080@60Hz |
|
Connector |
HDMI-A |
|
Impedance |
100Ω |
|
IR |
Interface |
3.5mm earphone seat |
Signal direction |
Unidirectional |
|
Signal type |
Digital |
|
IR frequency |
38kHz (Other Choice20-60kHz) |
|
Ethernet |
Interface |
RJ45(568B) |
Transmission distance |
UTP CAT5e---150m |
|
Other |
Power supply |
The power adapter: DC 5V |
Power dissipation |
MAX 4W |
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
Humidity |
Operating: 5% ~ 90% |
|
Dimension (LxWxH) |
79*43*23mm |
|
The warranty |
1-year free warranty |
Model |
Description |
UF-HEX-150T/R |
1080P@60Hz HDMI over TCP/IP Extender with IR Control - 150m over a single CAT5e/6 cable, HDMI 1.3, HDCP 1.2 compliant, Support point-to-point and point to mutil-point over Ethernet switch transmission, including Transmitter & Receiver, used by pairs |
Mounting Options |
► Desktop |
Power Options |
►1A 5VDC Power Supply |
► 2 x 5V 1A external power adapter is included. |
