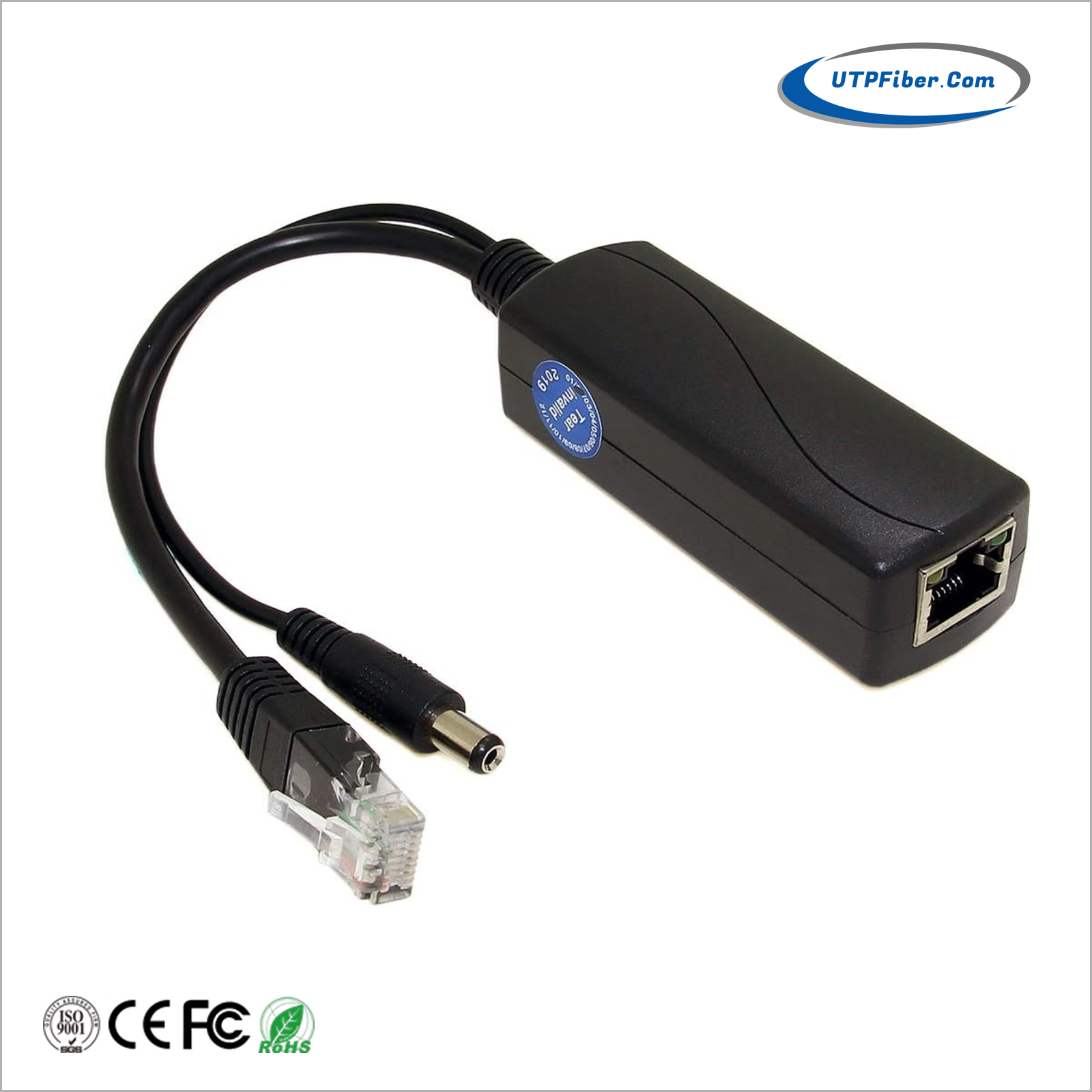

10/100/1000M 12V 1A PoE Splitter

Model:UF-SPG12V1A

►    DC output 12V 1A

►    Comply to IEEE802.3af/at

►    Plug & Play

UF-SPG12V1A PoE splitter, used for Ethernet power supply application scenarios, device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at” POE power supply; DC output 12V 1.25A; The POE signal can be separated into network signal and electric power.

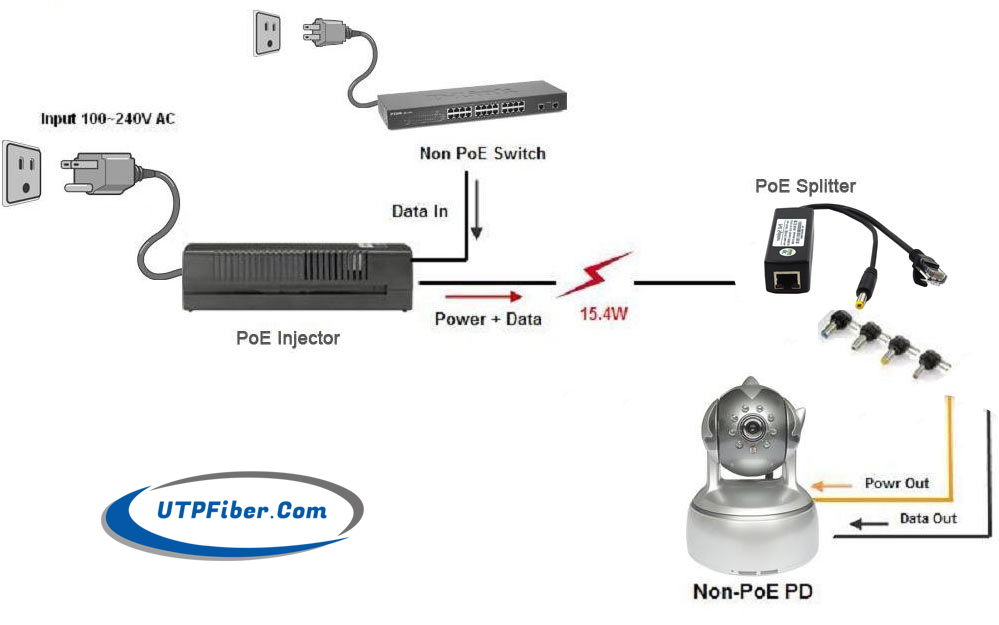

The PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other PoE practical place, and is not restricted by layout of power line.



10/100/1000M 12V 1A PoE Splitter

►    DC output 12V 1A

►    52V: MAX transmission 150M (With full copper low resistance network lines)

►    Comply to IEEE802.3af/at

►    Power Input: DC38~56V

►    Plug & Play

►    Built-in high performance chip and high specification circuit board

►    Stable:AKros AS1138, with lightning protection

►    RJ45 full shield port

►    Full bridge design, non polarity input

Model

UF-SPG12V1A

DC out

12V 1.25A

Power

15W

distance

10BASE-T: cat 5 UTP(≤100m)

100BASE-TX: cat 5 and above UTP(≤100m)

1000BASE-TX: cat 5 and above UTP(≤100m)

Port

1 GE (10/100/1000M) POE input+1 Network+1 DC output

POE

IEEE POE++/IEEE 802.3af /IEEE802.3at,

IEEE802.1af DTE Power via MDI

Network protocol

IEEE 802.3i 10BASET

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x Flow Control

Environmental

Working Temperature:-20°55°C

Storage temperature:-40°85°C

Working Humidity: 10%90% RH non-condensing

Storage Humidity: 5%90% RH non-condensing

Radiation

CE mark, FCC Part 15 Class BRoHS

Product Size

250mm*34mm*26mm

Weight

0.2kg

  • Download FileName:UF-SPG12V1A 101001000M 12V 1A PoE Splitter Datasheet V1.0.pdf Size: 607KB

Model

Description

UF-SPG12V1A

PoE Splitter: 1x10/100/1000M POE input + 1xNetwork +1xDC output, MAX 15 watts, DC output 12V 1.25A
