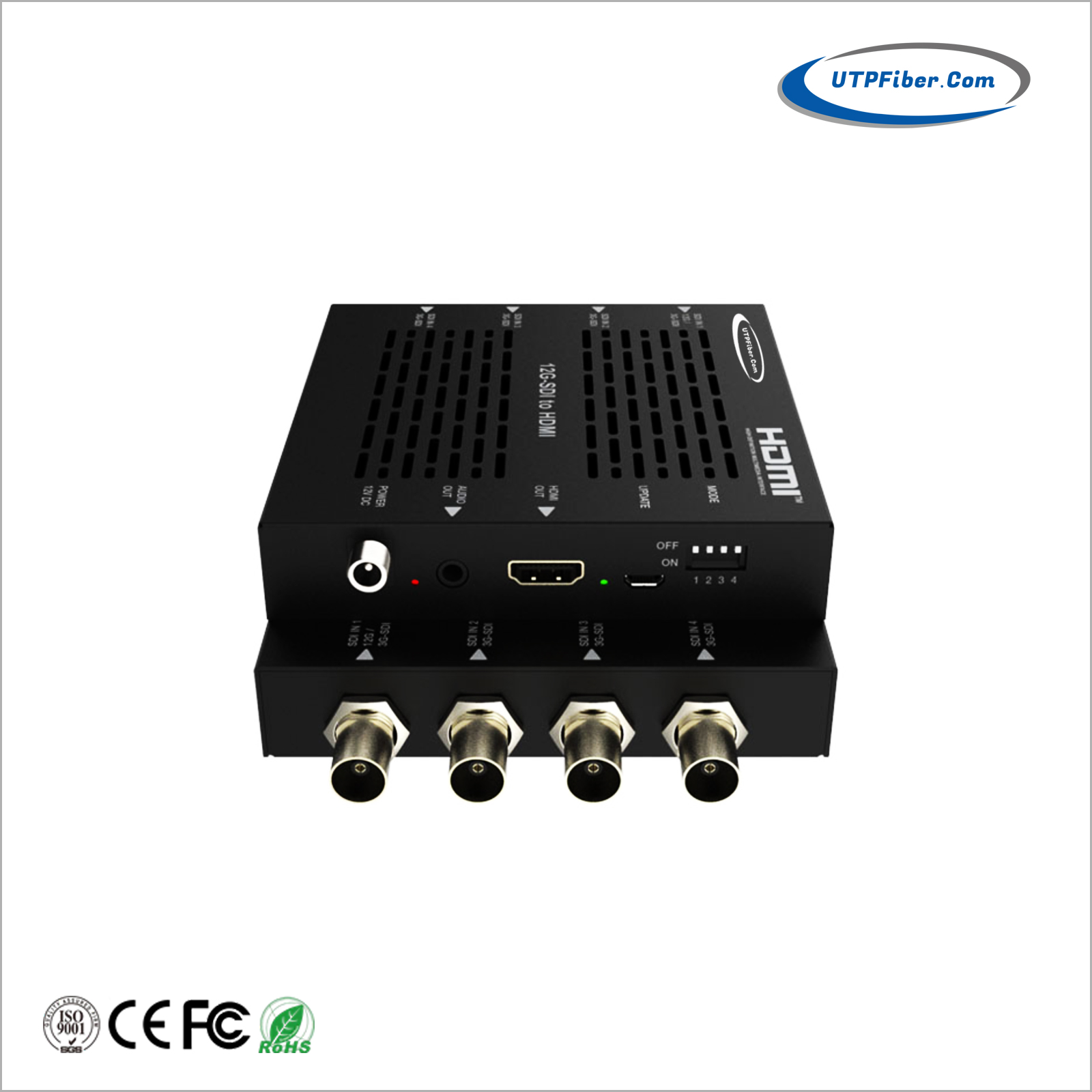

1x12G-SDI or 4x3G-SDI to 4K HDMI Converter
Model:UF-VC12GHD
► Compatible with HDMI 2.0b, output without HDCP, video bandwidth up to 18Gbps
► SDI video bandwidth up to 12Gbps
► Maximum transmission distance: 100m/328ft in 4×3G-SDI mode, 60m/197ft in 12G-SDI mode
► Support video resolution up to 4K2K@60Hz YCbCr 4:2:2

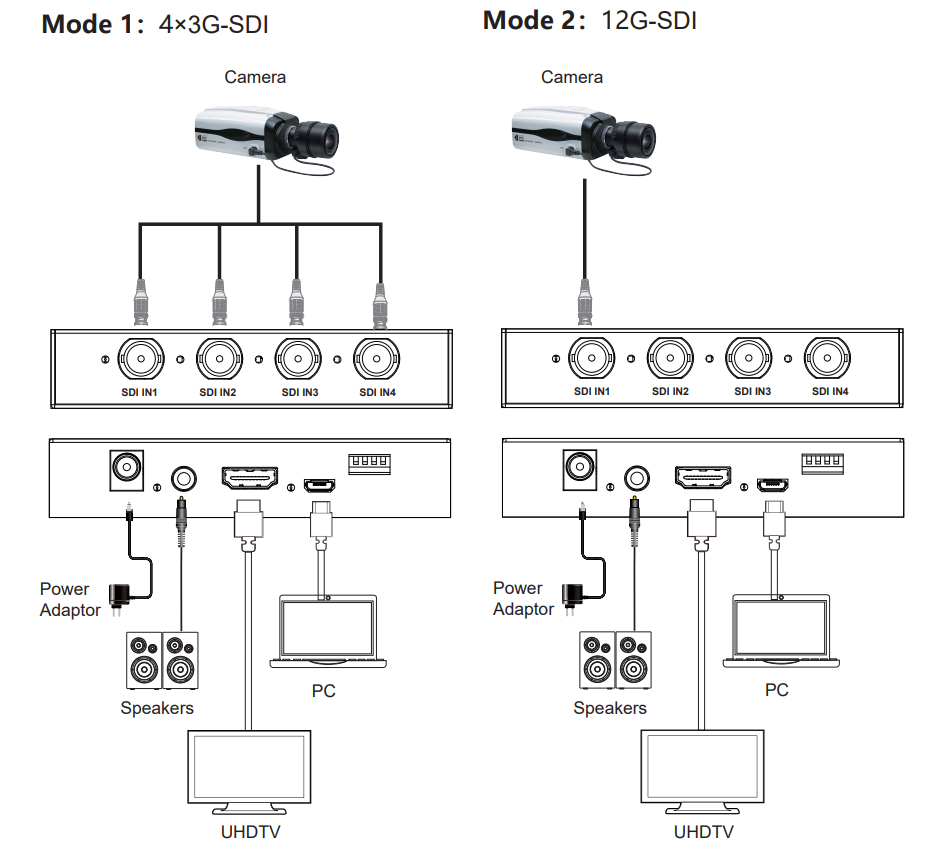

The UF-VC12GHD 12G-SDI to HDMI Converter is designed to work under two modes: 4x3G-SDI and 12G-SDI. In 4x3G-SDI mode, 4ch 3G-SDI signals can be converted to a 4K HDMI signal and transmitted with a distance up to 100m/328ft; in 12G-SDI mode, the 12G-SDI signal can be converted to 4K HDMI signal directly and distributed to a display 60m/197ft away. It supports video resolution up to 4K2K@60Hz and LPCM audio format.
► Compatible with HDMI 2.0b, output without HDCP, video bandwidth up to 18Gbps
► Compatible with SDI standards: SMPTE ST-2082, SMPTE ST-2081, SMPTE 425M-AB, SMPTE 424M, SMPTE 292M, and SMPTE 259M-C, video bandwidth up to 12Gbps
► Maximum transmission distance: 100m/328ft in 4×3G-SDI mode, 60m/197ft in 12G-SDI mode
► Support video resolution up to 4K2K@60Hz YCbCr 4:2:2
► Support DIP switch control
► Support LPCM audio format
► Support audio extract to analog output
► Compact design for easy and flexible installation
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b |
|
SDI Compliance |
SMPTE ST-2082, SMPTE ST-2081, SMPTE 425M-AB, SMPTE 424M, SMPTE 292M, SMPTE 259M-C |
|
SDI Formats |
SD/HD/3G/12G-SDI |
|
Video Bandwidth |
SDI: up to 12Gbps HDMI: up to 18Gbps |
|
Video Resolution |
480i ~1080p50/60Hz, 4Kx2K@24/30Hz，4K60 |
|
Color Depth |
8/10-bit |
|
Color Space |
YCbCr 4:2:2 |
|
Audio Format |
LPCM |
|
Connection |
|
|
Inputs |
4 × SDI IN [BNC] |
|
Outputs |
1 × HDMI OUT [Type A 19-pin Female] 1 × AUDIO OUT [3.5mm Stereo Mini-jack] |
|
Control |
1 × Micro USB [for upgrade] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
210mm (W) × 69mm (D) × 20mm (H) |
|
Weight |
400g |
|
Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 12V/1A (US/EU standard, CE/FCC/UL certificated) |
|
Power Consumption |
10W |
|
Operation Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
- Download FileName：UF-VC12GHD 12G-SDI to 4K HDMI Converter Datasheet V1.0.pdf Size： 1.11MB
|
Model |
Description |
|
UF-VC12GHD |
1x12G-SDI or 4x3G-SDI to 4K HDMI Converter |
|
Mounting Options |
► Desktop or Wall-Mount Installation |
|
Power Options |
► 12VDC Power Supply |
