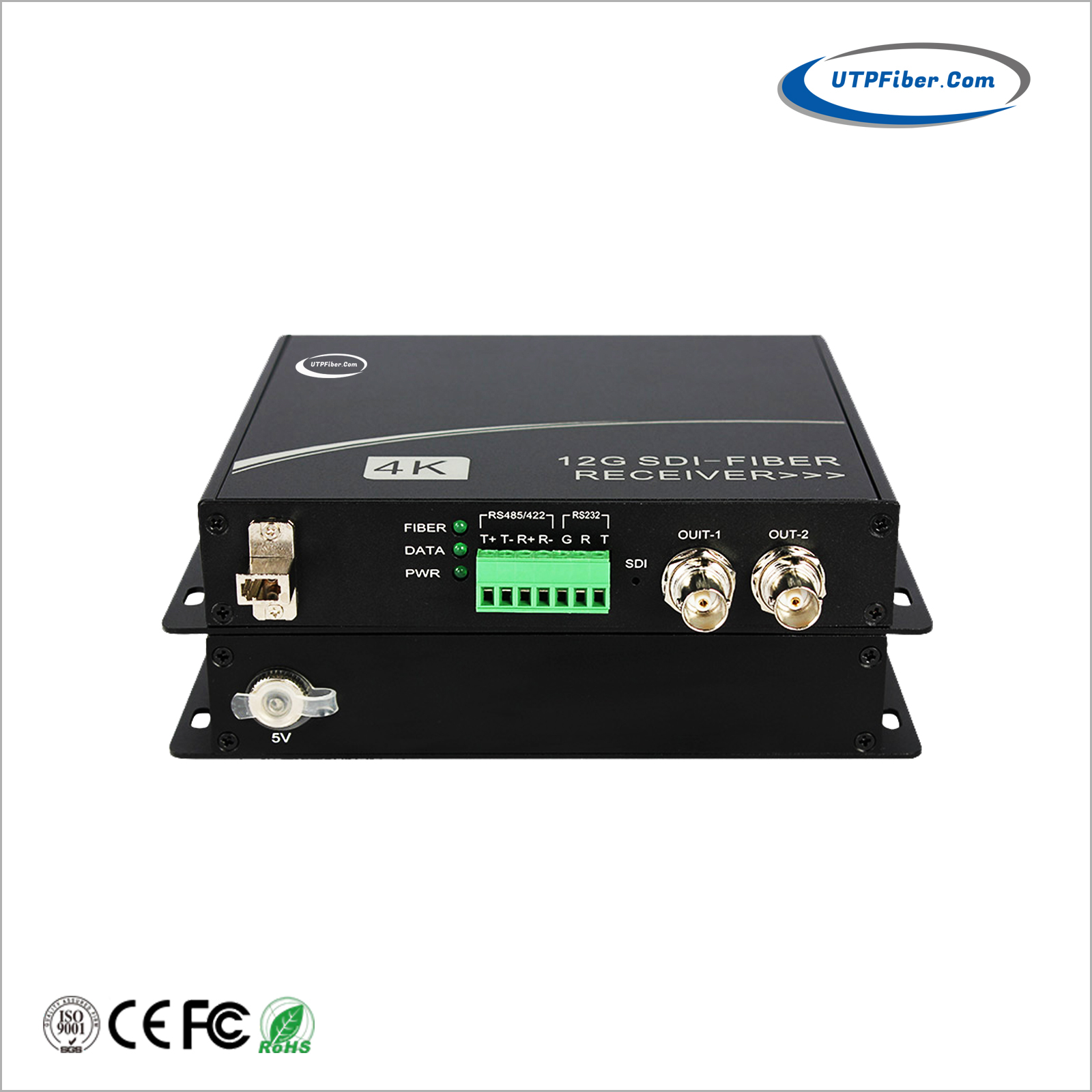

The UF-12GSDI-1V1HD 12G/6G/3G/HD/SD-SDI Fiber Extender with Bi-Directional RS232/422/485 is an ideal and cost-effective solution designed for transmission of multi-rate SDI video, with embedded audio and metadata over a single-mode fiber optic cable. The transmitter module receives one 12G/6G/3G/HD/SDI electrical input, perfectly converts SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 2082 or DVB-ASI electrical SDI signal to single-mode optic SDI signals. The receiver module receives the corresponding optical signals through input SFP connector, and then perfectly converts it back to electrical signals.

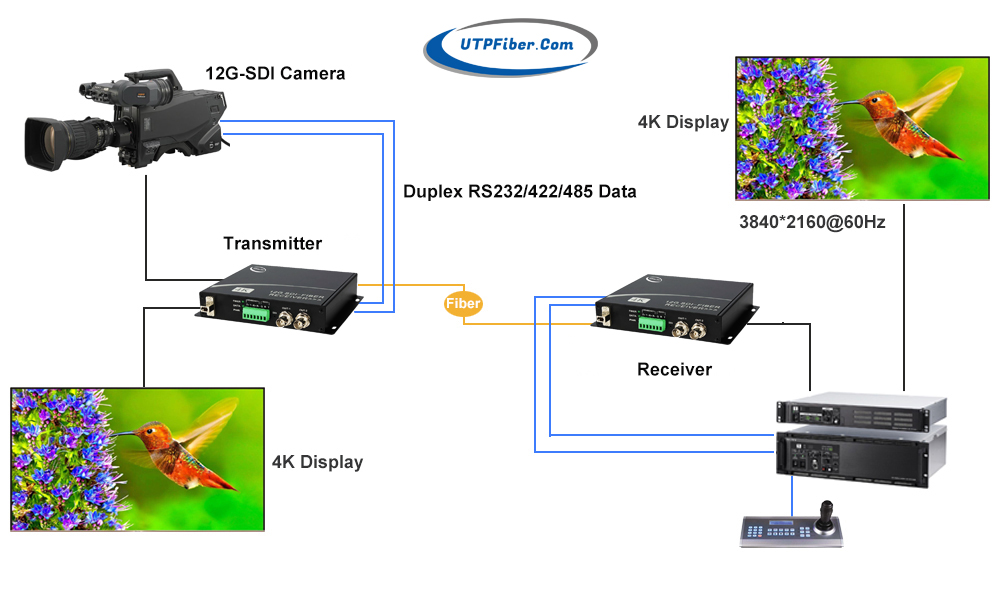

Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signals and keep the integrity of signal quality. The UF-12GSDI-1V1HD is perfect for today’s broadcast or surveillance applications, including super long ranged A/V & serial control transmission, video production, video editing, studio to studio and studio to CATV head end. UF-12GSDI-1V1HD is equipped with bi-directional RS-232/422/485 serial port control. This bonus feature allows users to boost RS-232/422/485 control distance up to 20km through optical fiber cables. In addition, since the optical transmission is inherently secure and immune to the outside electronical interferences, the potential applications are particularly favored in government, military, and medical environments.

►     Each SDI channel includes 8-channel audio embedded

►     Automatic cable equalization to ensure signal integrity

►     Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

►     Integrated Clocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270Mbps

►     Directly compatible with 12G/6G/3G-SDI camera systems

►     Long transmission capability up to 20 km

►     Supports hot swapping and hot plugging

►     Full digital non-compression broadcast level transmission

►     super optic dynamic range and free of adjustment

►     fiber optic WDM/CWDM/DWDM technique

►     Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720

►     Supports Duplex RS232/422/485

• Download FileName：UF-12GSDI-1V1HD 12G-SDI Fiber Converter w RS232 422 485 Datasheet V1.0.pdf Size： 494KB
