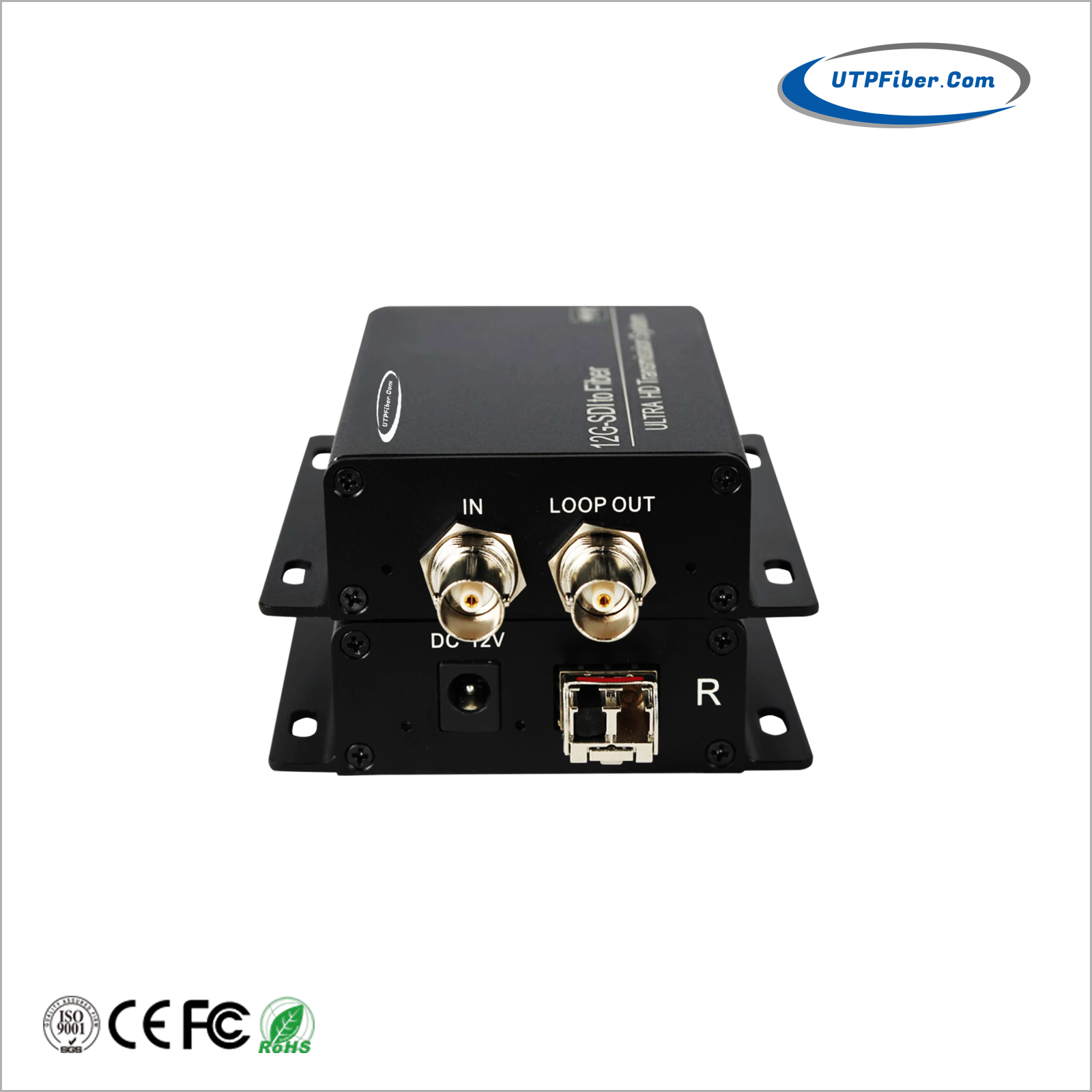

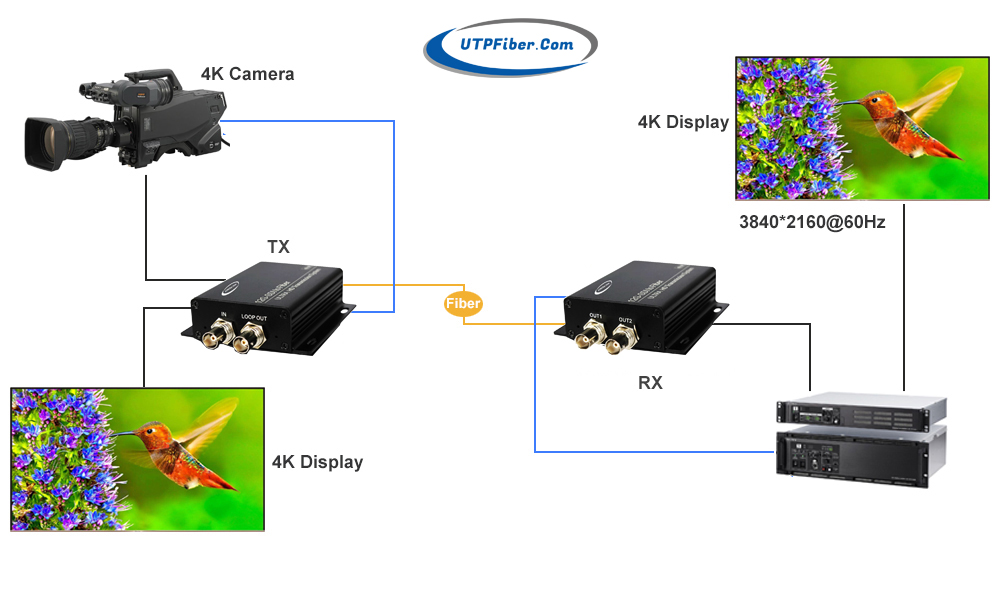

UF-12GSDI-1V Series Mini-type 12G-SDI Fiber Converter supports 1-channel 12G Video (audio embedded) & transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. The 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P，1080I, 720P.

►     Each SDI channel includes 8-channel audio embedded

►     Automatic cable equalization to ensure signal integrity

►     Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

►     Integrated Clocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270Mbps

►     Directly compatible with 12G/6G/3G-SDI camera systems

►     Long transmission capability up to 20 km

►     Terminal block power input for industrial application

►     Supports hot swapping and hot plugging

►     Full digital non-compression broadcast level transmission

►     super optic dynamic range and free of adjustment

►     fiber optic WDM/CWDM/DWDM technique

►     Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720

• Download FileName：UF-12GSDI-1V Mini 12G-SDI Fiber Converter Datasheet V1.0.pdf Size： 386KB
