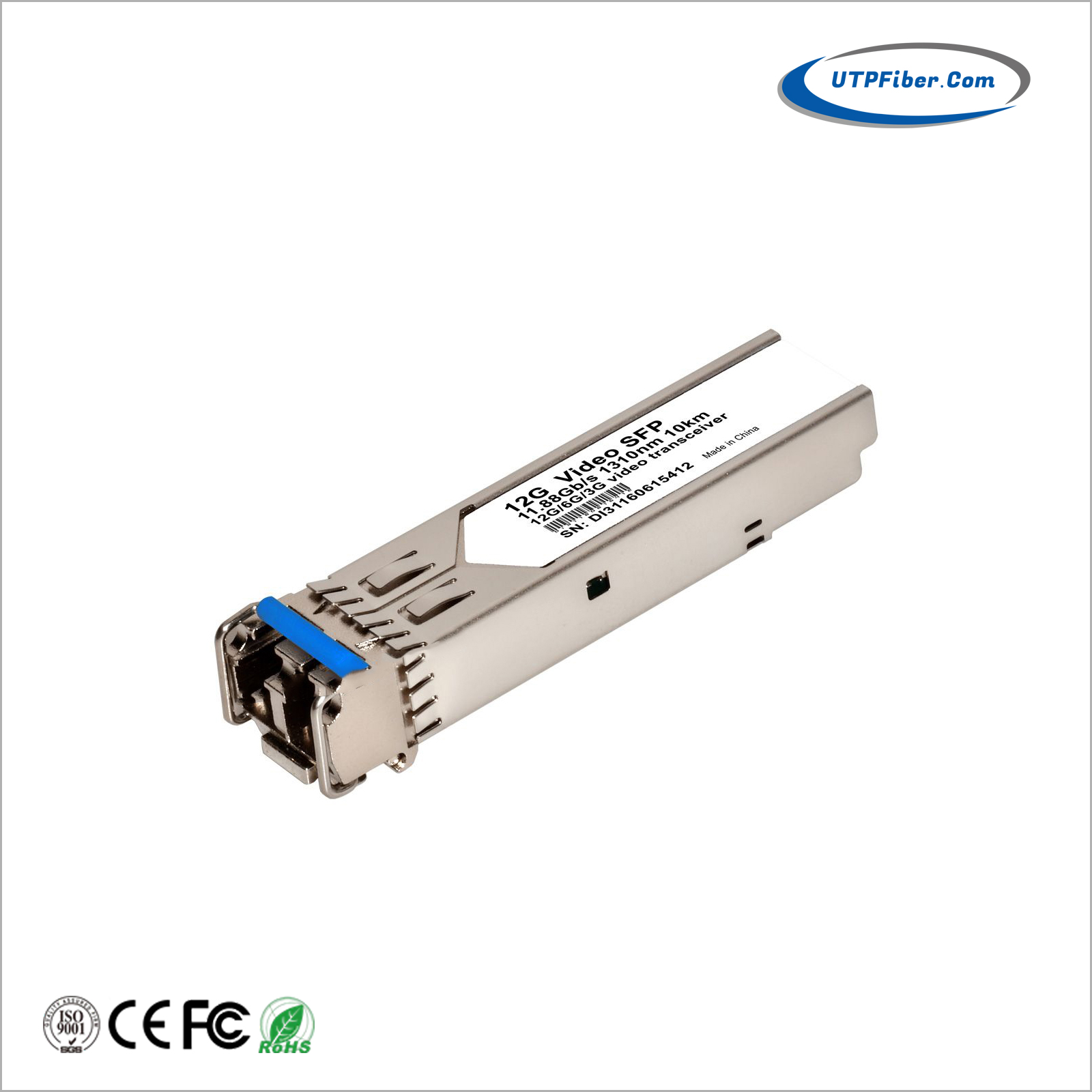

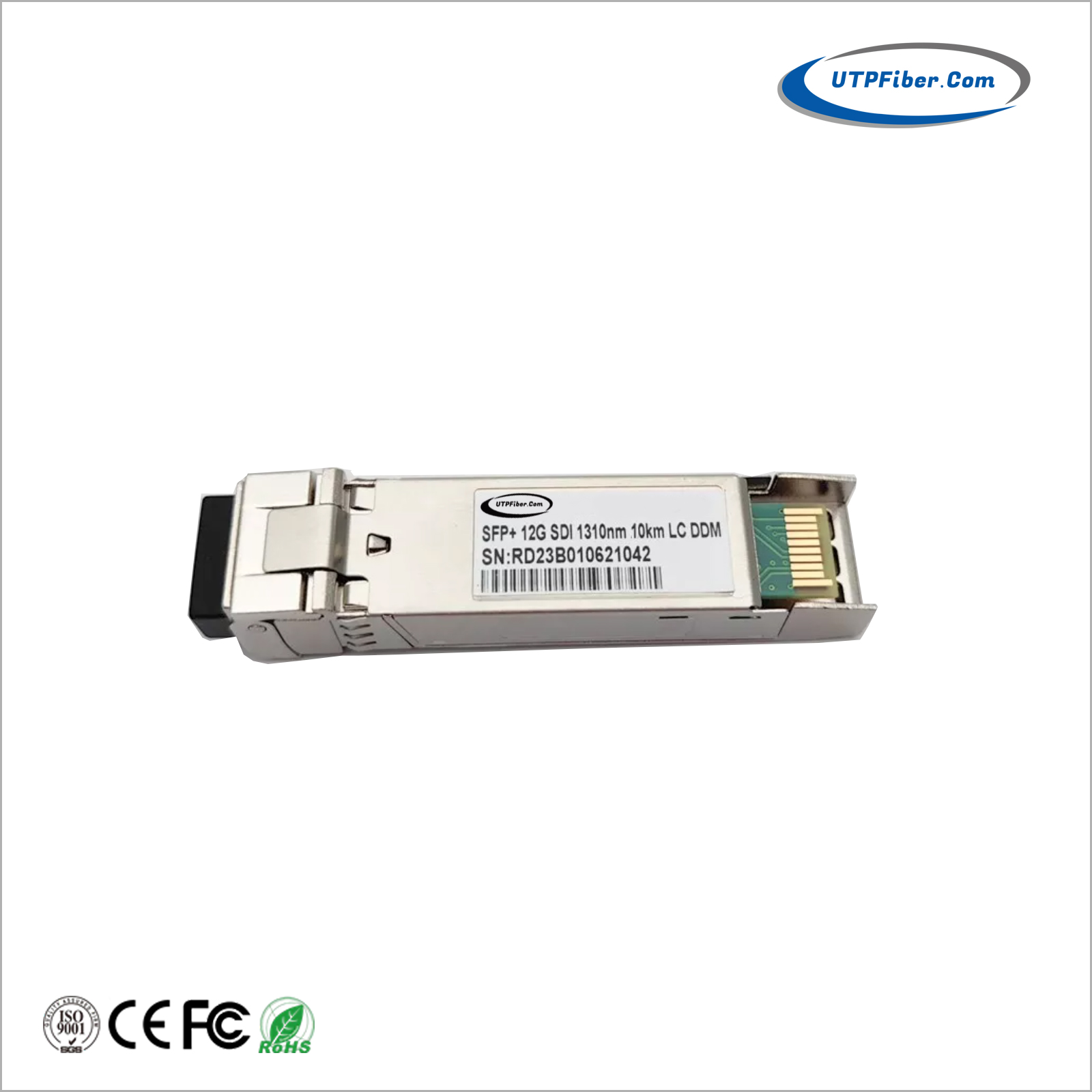

12G-SDI CWDM SFP+ Video 10km Transceiver for SD/HD/3G/6G/12G-SDI
Model:UF-CSFP-12GXX-10
- Available in a hot-pluggable SFP+ package
- Full-duplex transceiver integrated module
- CWDM DFB laser and PIN receiver
- Supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI video pathological modes
- The transmission distance can be up to 10km through single-mode optical fiber
12G CWDM SFP+ Video Transceiver Module (SMF, 1270nm~1610nm, 10km, LC, DOM)
The 12G CWDM SFP+ optical transceiver module is specially designed for broadcast video transmission applications over single-mode fiber (SMF). It supports data rates from 270Mbps to 11.88Gbps per 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI standards. This 12G-SDI transceiver is ideal for 10km pathological signal pattern transmission. Using CWDM technology, this 12G SFP+ allows users to multiplex up to 18 wavelengths on a single fiber. By doing so, the network operator can maximize the transmission capacity without deploying new fiber.
- Available in a hot-pluggable SFP+ package
- Full-duplex transceiver integrated module
- CWDM DFB laser and PIN receiver
- Complies with SMPTE ST-297/2081/2082 standards
- Supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI video pathological modes
- The transmission distance can be up to 10km through single-mode optical fiber
- The maximum power consumption is less than 1.5W
- Metal housing for reduced EMI
- Dual LC optical interfaces
- Optional MSA or Non-MSA pins
- Commercial grade operating temperature range from 0 to 70 degrees Celsius
- The supply voltage is 3.3V
- RoHS compliant (lead-free)
| Product Series | 12G-SDI SFP+ | Manufacturer | UTP Fiber |
| Manufacturer Part# | UF-CSFP-12GXX-10 | Form Factor | SFP+ |
| Data Rate | 12 Gbps | Wavelength |
1270nm,1290nm,1310nm,1330nm,1350nm,
1370nm,1390nm,1410nm,1430nm,1450nm, 1470nm,1490nm,1510nm,1530nm,1550nm, 1570nm,1590nm,1610nm |
| Media Type | SMF | Max Distance | 10 km |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | -3.0 ~ +2.0 dBm | Receiver Sensitivity | < -11.0 dBm |
| Extinction Ratio | > 3.5 dB | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Max Power Consumption | 1.0 W |
| DDM/DOM | Yes | Compliance |
RoHS, CE, REACH SFP+ MSA, SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M |
| Environment |
Operating Temperature: 0~70 °C Storage Temperature: -40~85 °C Operating Humidity: 5%~85% Storage Humidity: 5%~95% |

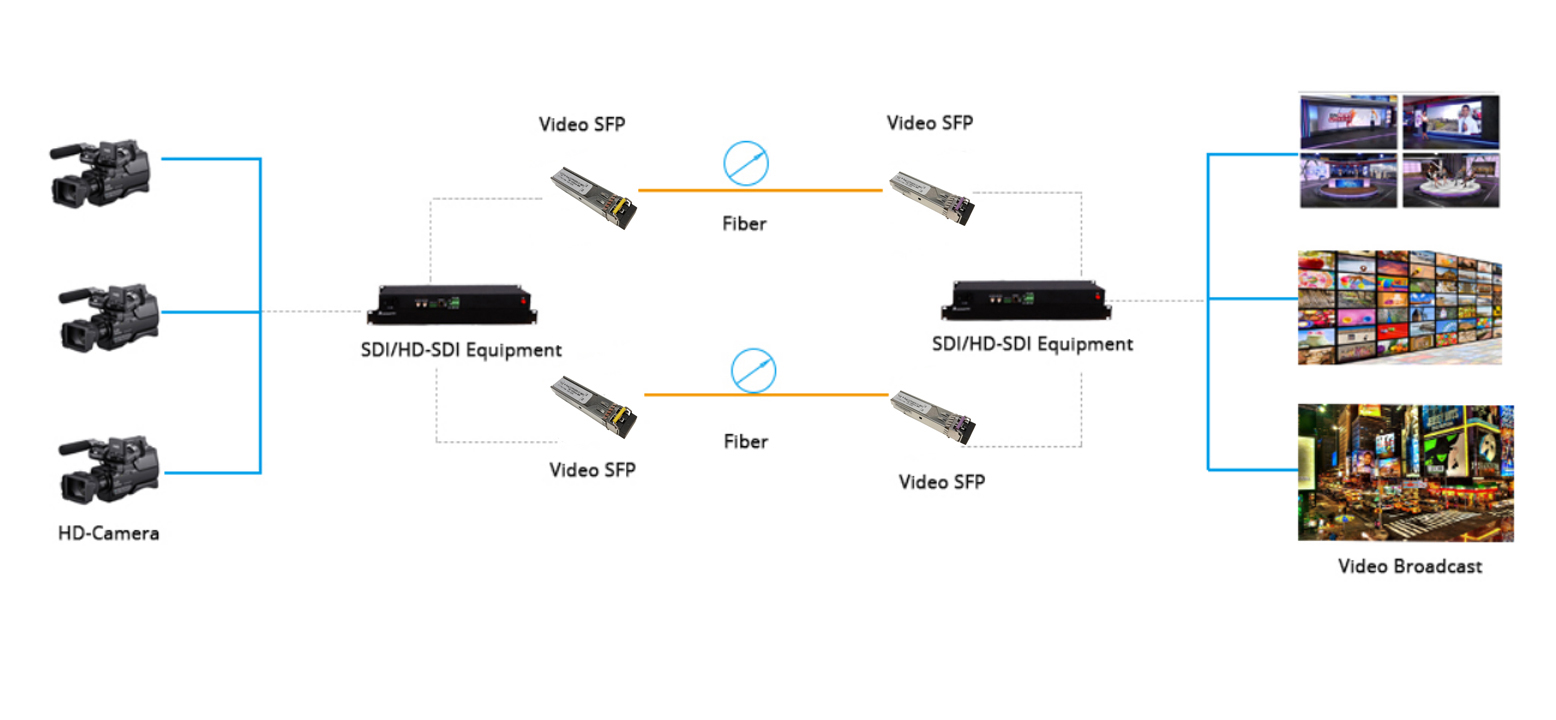

Application |
SMPTE ST-297-2015, ST2081 & ST-2082 UHDTV/HDTV/SDTV Service Interfaces High-density Video Routers |
| Shipping Weight | 0.03 kg | Dimensions (L x W x H) | 56.5 x 13.9 x 8.5 mm |
- Download FileName：UF-CSFP-12Gxx-10 12G-SDI CWDM SFP 1270nm-1610nm 10km Datasheet V1.0.pdf Size： 824KB
|
Model |
Description |
|
UF-CSFP-12G27-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G29-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G31-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G33-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G35-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G37-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G39-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G41-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G43-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G45-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G47-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G49-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G51-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G53-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G55-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G57-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G59-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 10km, LC, DDMI, MSA |
|
UF-CSFP-12G61-10 |
12Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 10km, LC, DDMI, MSA |
