95W 802.3af/at/bt 10GbE Power over Ethernet Injector

Model:UF-PJ10G-90W

►    IEEE 802.3af/at/bt compliant

►    Supports 10/100/1000 Mbps and 1Gb/2.5Gb/10Gb applications

►    Output power up to 95W over four pairs with auto-detection on power requirement

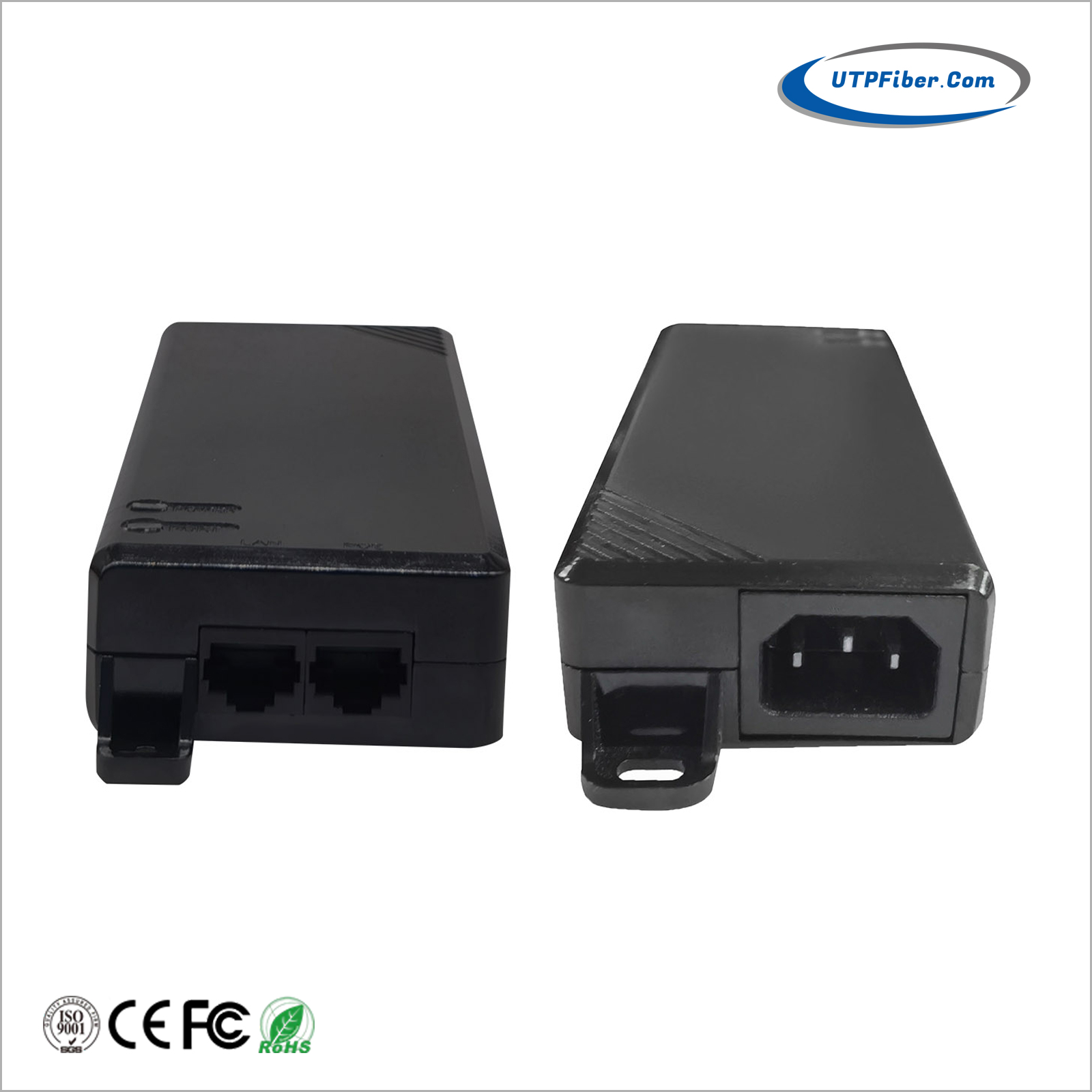

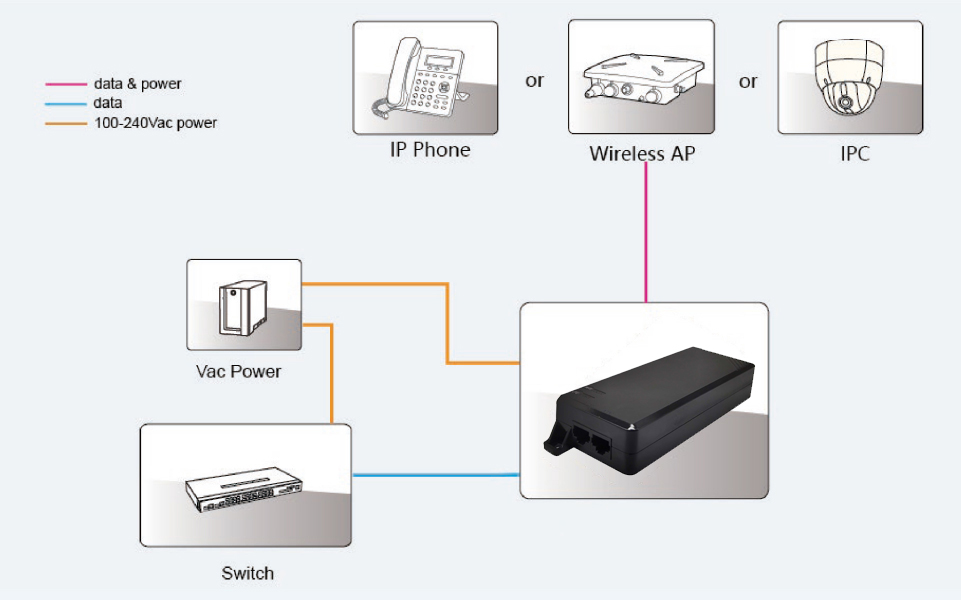

UF-PJ10G-90W is a single port PoE Injector with 4 Pair PoE up to 95 watts of power at 56 VDC at 1.7 amp. Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, it supports 10/100/1000Mbps/10GBps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device. Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with Wall-mounted. Designed for indoor use, it operates with a wide input voltage of 100-240 VAC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.








PoE Injector 95W 10Gbps, 56V 10G 4Pair 95W PoE++ Injector, 10G 95W AC PoE Power Supply, Power over Ethernet Adapter 10GbE 95W, 10Gbps AC PoE Injector 95W, 10GbE 95W PoE++ Injector

►     IEEE 802.3af/at/bt compliant

►     Build-in detection chip inside, which will detect and classify PD before powering it (Active PoE)

►     Backward compatible for legacy PoE

►     Supports 10/100/1000 Mbps and 1Gb/2.5Gb/10Gb applications

►     Output power up to 95W over four pairs with auto-detection on power requirement

►     Leverage energy efficient PoE up to 95W with full power capabilities mount use

►     Fan-less design ideal for silent operation

►     Wall mounted with mounting hole or placed on desk

►     Simple plug-and-play installation




Parameter

Description

Key Features

PoE++, IEEE802.3BT

High speed 10G data rates

Power for 802.11ax Wave 2 Access Points, Pan-Tilt-Zoom (PTZ) Cameras and Video-Phones

Part Number

UF-PJ10G-90W

Ports condition

LAN Port*1, AC Input Port*1, PoE Output Port*1

Regulatory Compliance

IEEE802.3bt
RoHS Compliance
WEEE Compliance

Pass Through Data Rates

10GBit/s

Output

pin Assignment and Polarity:

4/5(+),7/8(-) and 3/6(+),1/2(-)

Output Power Voltage:56Vdc User

Port Power: 95W Guaranteed

Input

AC Input Voltage: 100-240 VAC
Frequency: 50/60Hz Typ.
AC Input Current:1.5A

Working Environment

Operating Temperature: 0 to 40
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20
 to 70
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters

AC Surge Protection

Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics

Case: Plastic
Color: Black
Mounting: Wall-mounted
IP Rated: IP40
Connectors: Shielded RJ-45*2
Size: 147 x 62 x 30mm
Weight: 450g

LED Indicator

Power Indicator : Power Status
PoE Load Indicator : PoE Status

Warranty

2 years

Safety Approvals

cUL/UL/FCC/CE

EMI

FCC CFR47 Part 15, EN55024, EN55032

EMS

IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)

IEC61000-4-3(RS) 10V/m(80MHz~2GHz)

IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV

IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM

IEC61000-4-6(CS) 10V(150kHz~80MHz)

Immunity

IEC60068-2-6(Vibration)

IEC60068-2-27(Impact)

IEC60068-2-32(Free Fall)

  • Download FileName:UF-PJ10G-90W 10G 95W PoE Injector Datasheet V1.0.pdf Size: 361KB

Model

Description

UF-PJ10G-90W

Single Port 95W 802.3af/at/bt 10GbE Power over Ethernet Injector with power cord

Mounting Options

► Desktop or Wallmount installation

Power Options

► 100-240V voltage input
