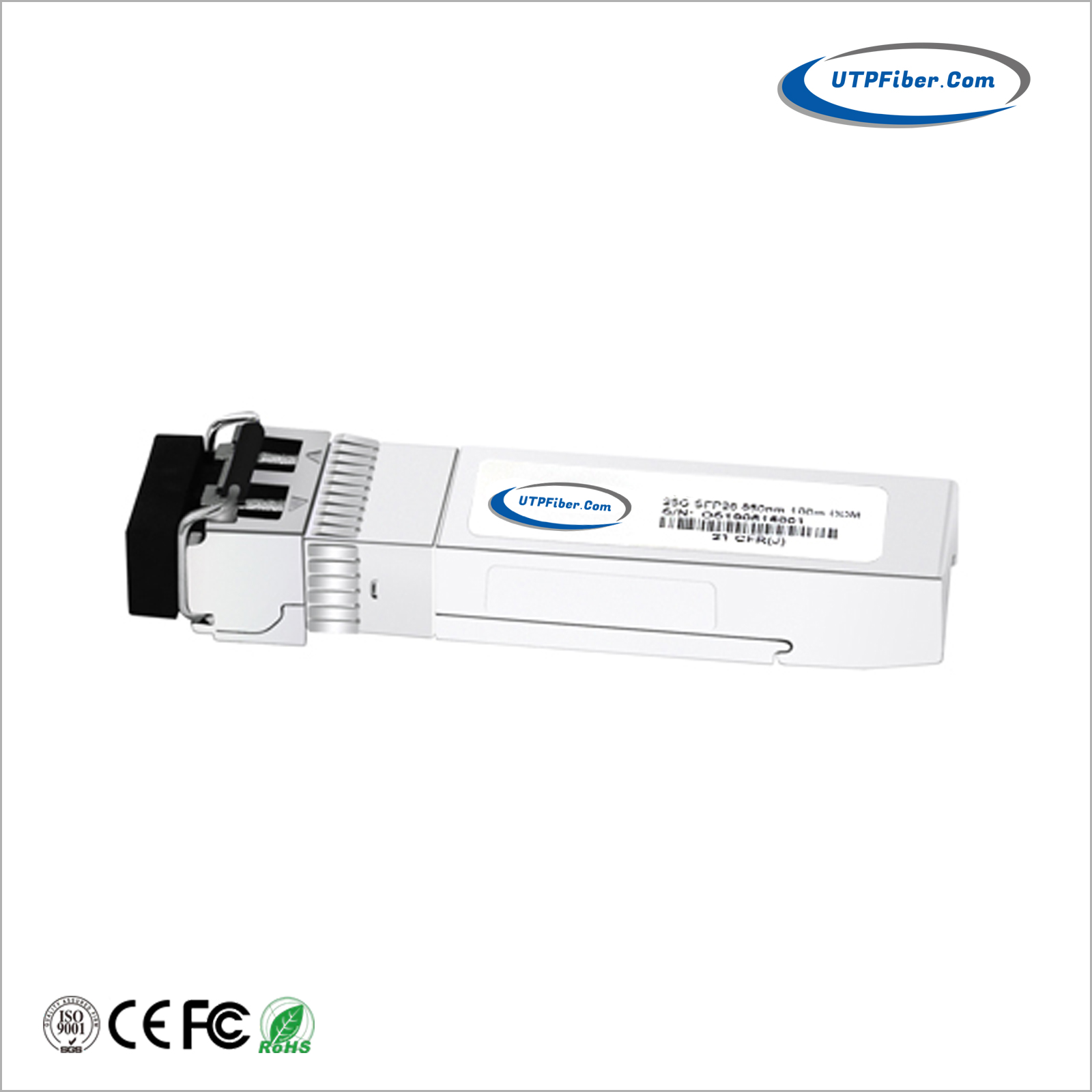

10/25GBASE-SR SFP28 850nm 400M optical transceiver Module

Model:UF-10/25G-SR

Hot-pluggable SFP28 form factor
Supports 25Gbps and 10Gbps dual data rates
Maximum link length of OM3 MMF 100m and OM4 MMF 300m

上一张

下一张

The UTP UF-10/25G-SR is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates UTP proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Hot-pluggable SFP28 form factor
Supports 25Gbps and 10Gbps dual data rates
Maximum link length of OM3 MMF 100m and OM4 MMF 300m
850nm VCSEL laser and PIN photo-detector
Internal CDR on both Transmitter and Receiver channel
Duplex LC receptacle
Single 3.3V power supply
Power dissipation < 1W
Digital diagnostics functions are available via the
I2C interface
Operating case temperature range of 0°C to +70°C (Commercial) or -20°C to +85°C (Extend)
RoHS-6 compliant

Model Name	UF-10/25G-SR	Vendor Name	UTP Fiber
Form Factor	SFP28	Data Rate	10/25 Gbps
Wavelength	850nm	Distance	400m@OM4 300m@OM3
Connector	LC Duplex	Cable Type	OM3/OM4 MMF
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-7.3 to +2.4dBm (10G) -6 to +2.4dBm (25G)	Receiver Sensitivity	<-9.9dBm (10G) <-8.7dBm (25G)
Power Consumption	<1.2W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	1E-12
Protocols	IEEE 802.3ba, SFP28 MSA	Warranty	2 Years

Download FileName：UF-1025G-SR 10G+25GBASE-SR SFP28 Dual-rate 850nm 300m Datasheet V1.0.pdf Size： 542KB

Part Number	Product Description
UF-10/25G-SR	10/25GBASE-SR SFP28 Dual-rate, 850nm; OM4, MMF 100m~300m, DDM, 0ºC ~ +70ºC
UF-10/25G-SRT	10/25GBASE-SR SFP28 Dual-rate, 850nm; OM4, MMF 100m~300m, DDM -25ºC~ +85ºC
