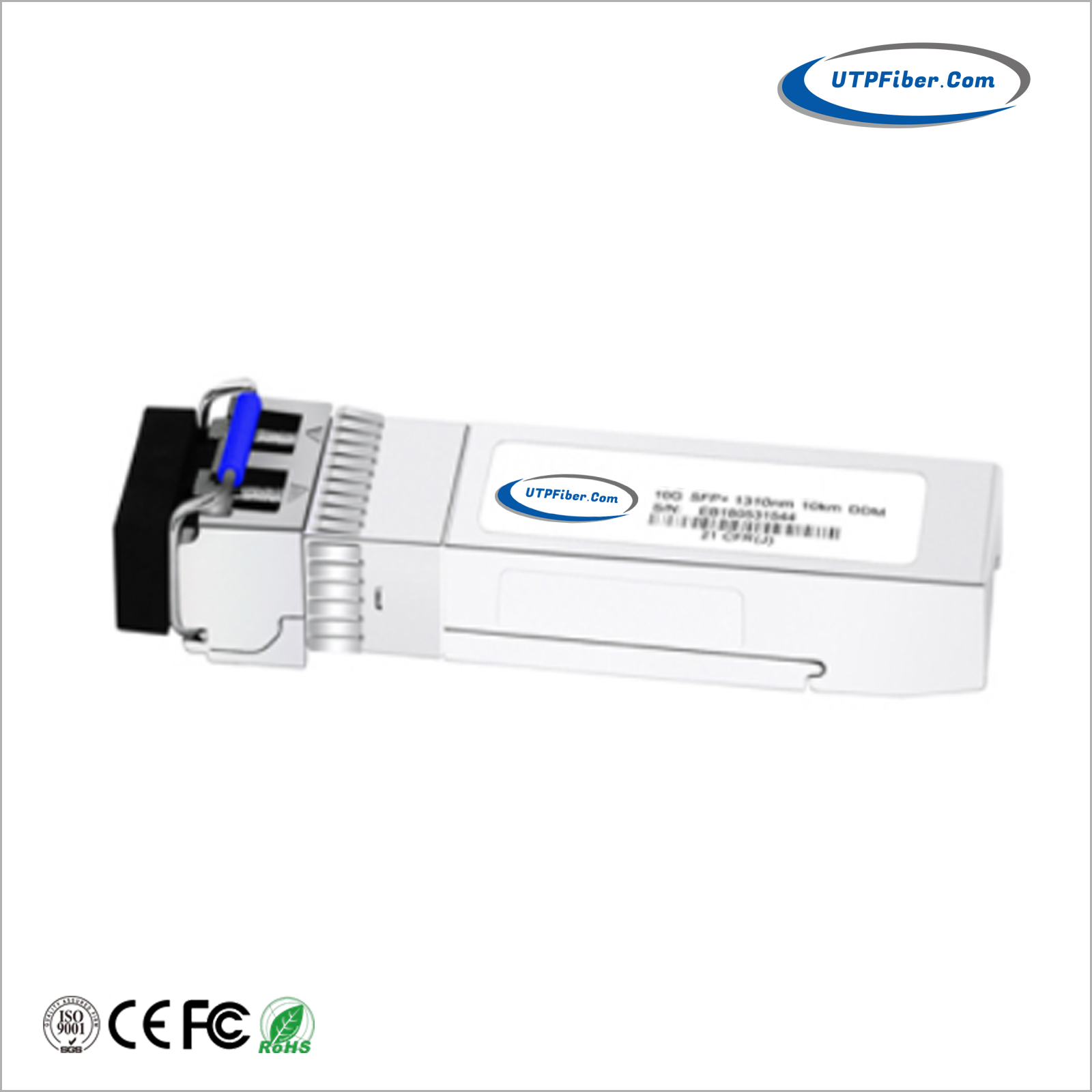

10/25GBASE-LR SFP28 1310nm 10km DOM Duplex LC SMF Optical Transceiver

Model:UF-10/25G-LR

Hot-pluggable SFP28 form factor
Supports 25Gbps and 10Gbps dual data rates
Maximum link length of 10km
1310nm DFB laser and PIN photo-detector
LC duplex connector

上一张

下一张

The UTP UF-10/25G-LR is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and CPRI Option 10 Applications. It is ahigh performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 10km. This module is designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates UTP proven circuit and technology to provide reliable long life, high performance, and consistent service.

Hot-pluggable SFP28 form factor
Supports 25Gbps and 10Gbps dual data rates
Maximum link length of 10km
1310nm DFB laser and PIN photo-detector
Internal CDR on both Transmitter and Receiver channel
LC single connector
Low power consumption <1.5 W
Single +3.3V±5% power supply
Compliant with SFF-8472
RoHS 6 Compliant
Operating temperature range:
Commercial: 0°C to +70°C
Industrial: -40°C to +85°C

Model Name	UF-10/25G-LR	Vendor Name	UTP Fiber
Form Factor	SFP28	Max Data Rate	25.78Gbps
Wavelength	1310nm	Max Cable Distance	10km
Connector	Duplex LC	Media	SMF
Transimitter Type	DFB	Receiver Type	PIN
TX Power	-7~2.5dBm	Receiver Sensitivity	＜13.5dBm
Powerbudget	5.5dB	Receiver Overload	2.5dBm
Power Consumption	≤1.5W	Extinction Ratio	>3dB
Commercial Temperature Range	0 to 70°C	Protocols	SFF-8472, SFF-8024, SFF-8431, SFF-8432, CEI-28G-VSR

Download FileName：UF-1025G-LR 10G+25GBASE-LR SFP28 Dual-rate 1310nm 10km Datasheet V1.0.pdf Size： 741KB

Part Number	Product Description
UF-10/25G-LR	10/25GBASE-LR SFP28 Dual-rate 1310nm 10km DOM Duplex LC, 0ºC ~ +70ºC
