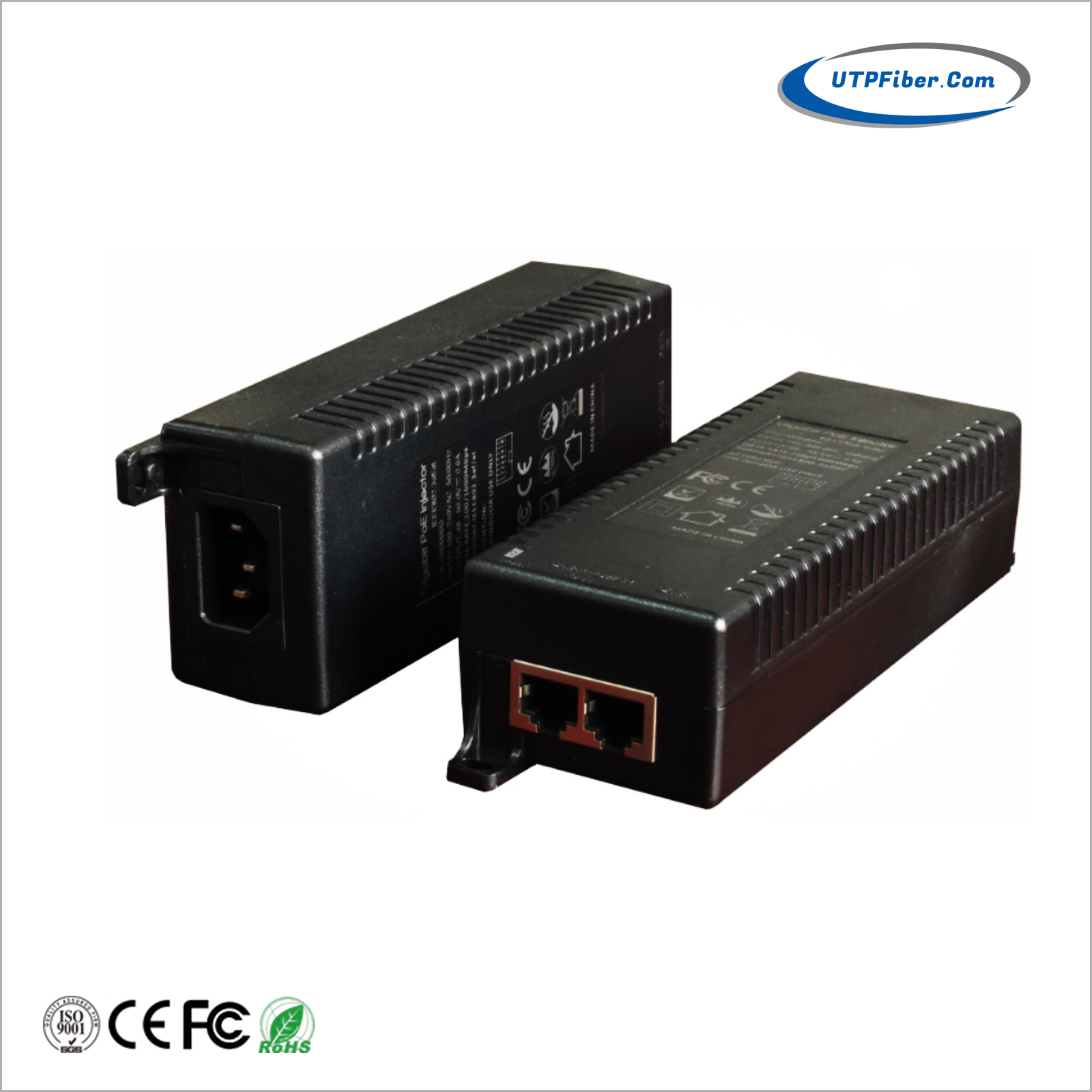

Single Port 10/100M IEEE802.3at 30W PoE Injector

Model:UF-PJ4830

►    Up to 30W of PoE Power

►    Compliant with IEEE802.3af/at Standard

►    Support 10/100Base-TX

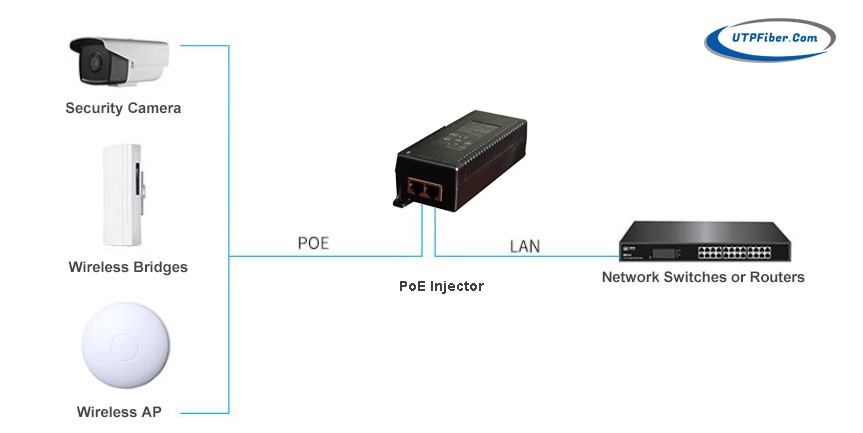

UF-PJ4830 30W – 48V 10/100M PoE Injector is a long-distance driving, fast network performing, strong PoE Output IEEE802.3af/at certified midspan. It is a single port indoor PoE injector that can provide up to 30W based on the IEEE 802.3af/at standard. The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP video phones and other power Ethernet end terminals with 30W of power. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.



Single Port 10/100M IEEE802.3at 30W PoE Injector

►    Up to 30W of PoE Power

►    Compliant with IEEE802.3af/at Standard

►    Support 10/100Base-TX

►    Compliant with Limited Power Source (LPS)

►    High Efficiency > 85%

►    Low No Load Power Consumption < 0.5W

►    Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)

►    Over-Voltage/Load/Temperature & Short Circuit protections

►    Plug & Play, no configuration required

►    Safe and Reliable Power to WLAN Access Points

►    Automatic Detection and Protection of Non-standard Ethernet Terminals

►    Injects 48V DC through a CAT 5 cable, use all 2 pairs into remote devices such as wireless AP, IP phone, web camera and other functions


Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

148,800pps (100Mbps)

Cabling:

10/100Base-TX: Cat5 or above

Maximum Distance:

IEEE802.3af/at PoE (30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)

Connector:

LAN: 1 x RJ-45 STP, “Data” Input Port

POE: 1 x RJ-45 STP, “Data + Power” Output Port

AC Connector: 1 x AC Input power socket, IEC-60320 C13

Environmental

Operating Temperature:

-10°C to 50°C (14°F to 122°F)

Storage Temperature:

-20°C to 70°C (-4°F to 158°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Voltage Range:

100-240V AC @50/60Hz.

Output Voltage:

DC 48V

Power Consumption:

35 watts max.

PoE (Power over Ethernet)

Standard:

IEEE 802.3af

IEEE 802.3at

Port:

RJ45

Pin Assignment

Data provide over pairs 1/2(+) and 3/6(-)

Power over spare pairs 4/5(+) and 7/8(-)

PoE Power Output

DC 48V/30-watt PoE via 2-pairs

LED Indicators

Power:

Power Status

PoE:

PoE Status

Dimensions (W×D×H):

145 x 58 x 39mm

Weight:

0.25Kg

Casing:

Plastic Case

Mounting Options:

Desktop

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV

  • Download FileName:UF-PJ4830 10100M 30W PoE Injector Datasheet V1.0.pdf Size: 677KB

Model

Description

UF-PJ4830

Single Port 10/100M IEEE802.3at PoE Injector with power cord

Mounting Options

► Desktop or Parallel Slide-in installation

Power Options

► 100-240V voltage input
