1U Rackmount 2-Port 100G QSFP28 to 2-Port QSFP28 Transponder OEO Converter
Model:UF-MC100G-3R
- 100G 2xQSFP28 Slot to 100G 2xQSFP28 Slot OEO line card
- Client side supports 100G QSFP28 LR4/ZR4 modules
- Line side supports 100G QSFP28 LR4/ZR4/PAM4 modules

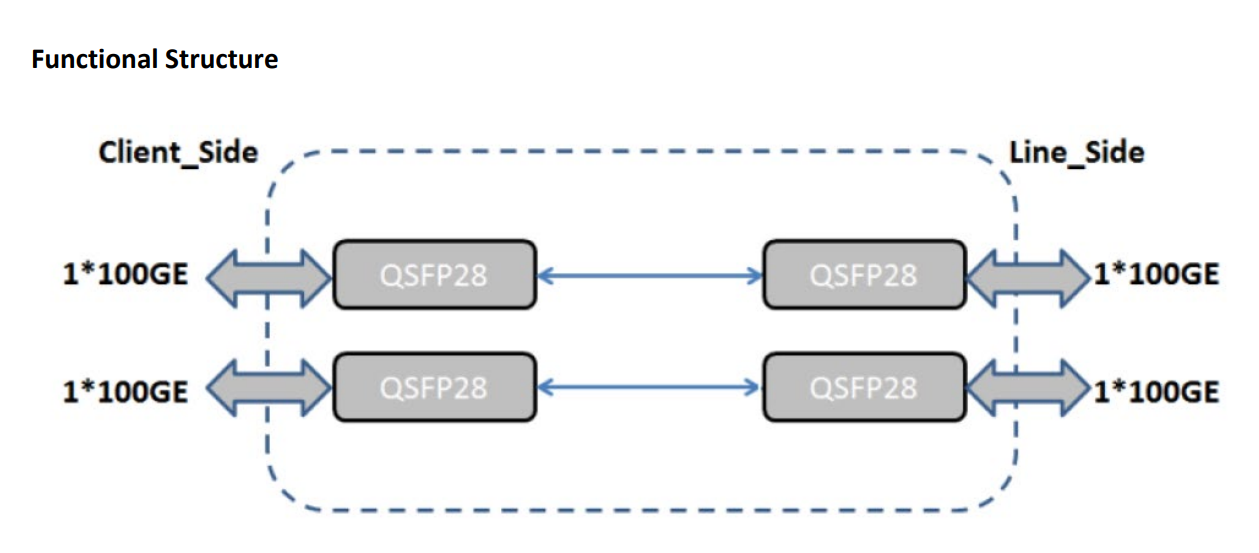

- Supports 2xQSFP28 to 2xQSFP28 bidirectional 100GE service access
- Support for SNMP-based network management while
- Support CLI, WEB, TELNET, and other network management approach (full graphical management)
- Support 1U rack management and 1-slot powered chassis compatibility
The 100G OEO Line card Connection between 100G QSFP28 fiber to 100G QSFP28 fiber 100Gbps equipment function as fiber mode converter. or as fiber repeater for long distance transmission., mainly used in 100G Ethernet, data center and other optical communication systems

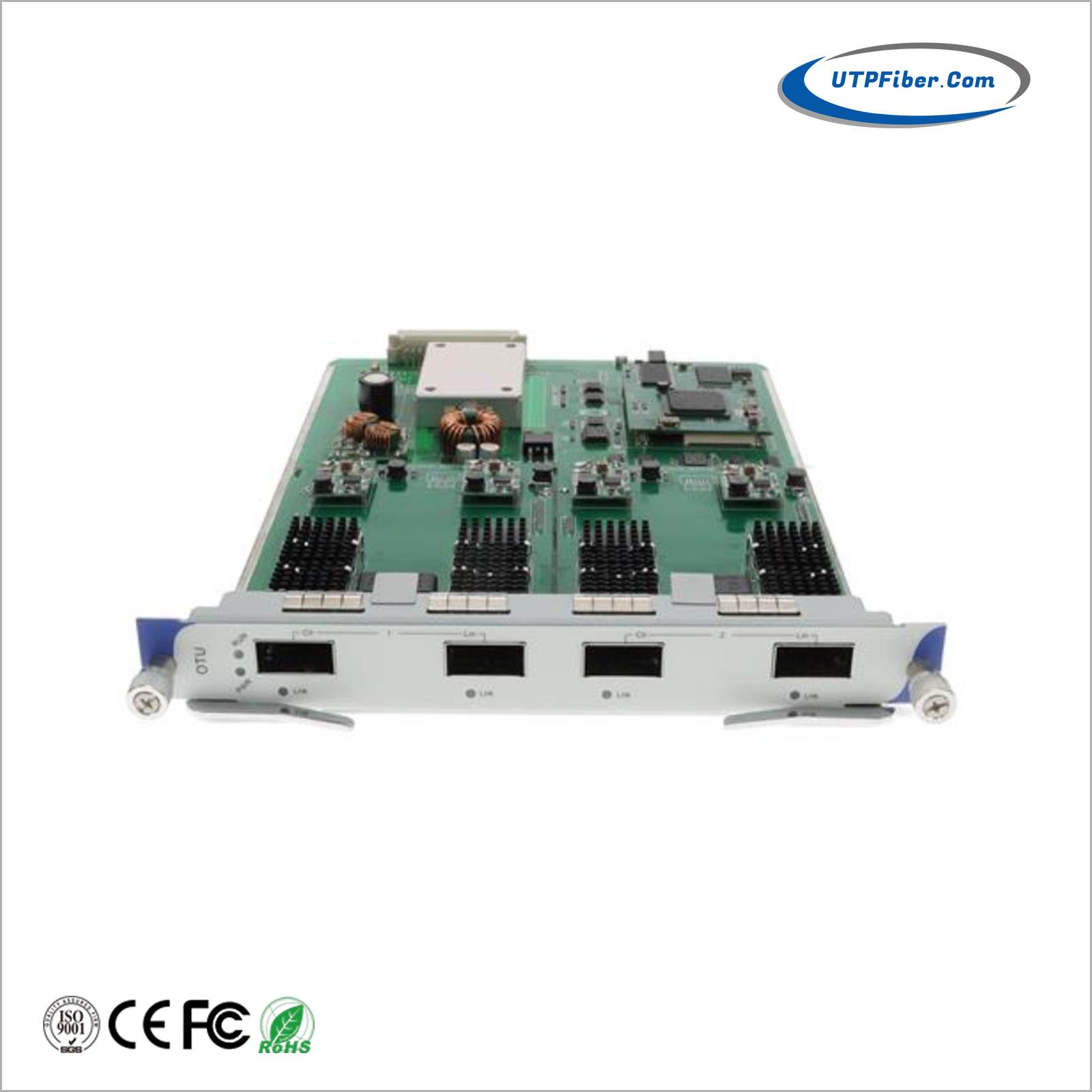

This dual OEO card offers two independent 100G optical to electrical to optical ports. The card provides support for LR4, ZR4, and PAM4 QSFP28 Modules. The card supports SNMP management, with CLI, WEBGUI, and Telnet management interfaces. The card is installed in the 1U rack mount chassis.
- 100G 2xQSFP28 Slot to 100G 2xQSFP28 Slot OEO line card
- Client side supports 100G QSFP28 LR4/ZR4 modules
- Line side supports 100G QSFP28 LR4/ZR4/PAM4 modules
- Supports 2xQSFP28 to 2xQSFP28 bidirectional 100GE service access
- Support for SNMP-based network management while
- Support CLI, WEB, TELNET, and other network management approach (full graphical management)
- Support 1U rack management and 1-slot powered chassis compatibility
|
Name |
100G 2*QSFP28 to 2*QSFP28 OEO Line Card |
|
Access service type |
100GE |
|
Occupy business slots |
1 slots |
|
Network management function |
Support port working status monitoring: transmit optical power, receive optical power, temperature, etc. and port opening/closing Support line side working mode |
|
Client side interface |
Support 2 QSFP28 modules, LC/UPC interface |
|
line side interface |
Support 2 QSFP28 modules, LC/UPC interface |
|
Max power consumption |
Per QSFP28 support max in 10W, whole Line card support Max 45W |
- Download FileName：UTP 100G QSFP28 to QSFP28 OEO Converter Datasheet V1.0.pdf Size： 1.15MB
|
Model |
Description |
|
UF-MC100G-3R |
1U Rackmount 2*QSFP28 Slot to 2*QSFP28 Slot 100G OEO Fiber to Fiber Media Converter |
|
QSFP28 Options: |
► QSFP28 option. Please select your QSFP28 on our SFP Options Page |
|
► QSFP28 module is to be purchased separately. |
|
|
Mounting Options: |
► Desktop ►Media converter Chassis installation |
|
Power Options: |
► 220VAC Power Supply |
