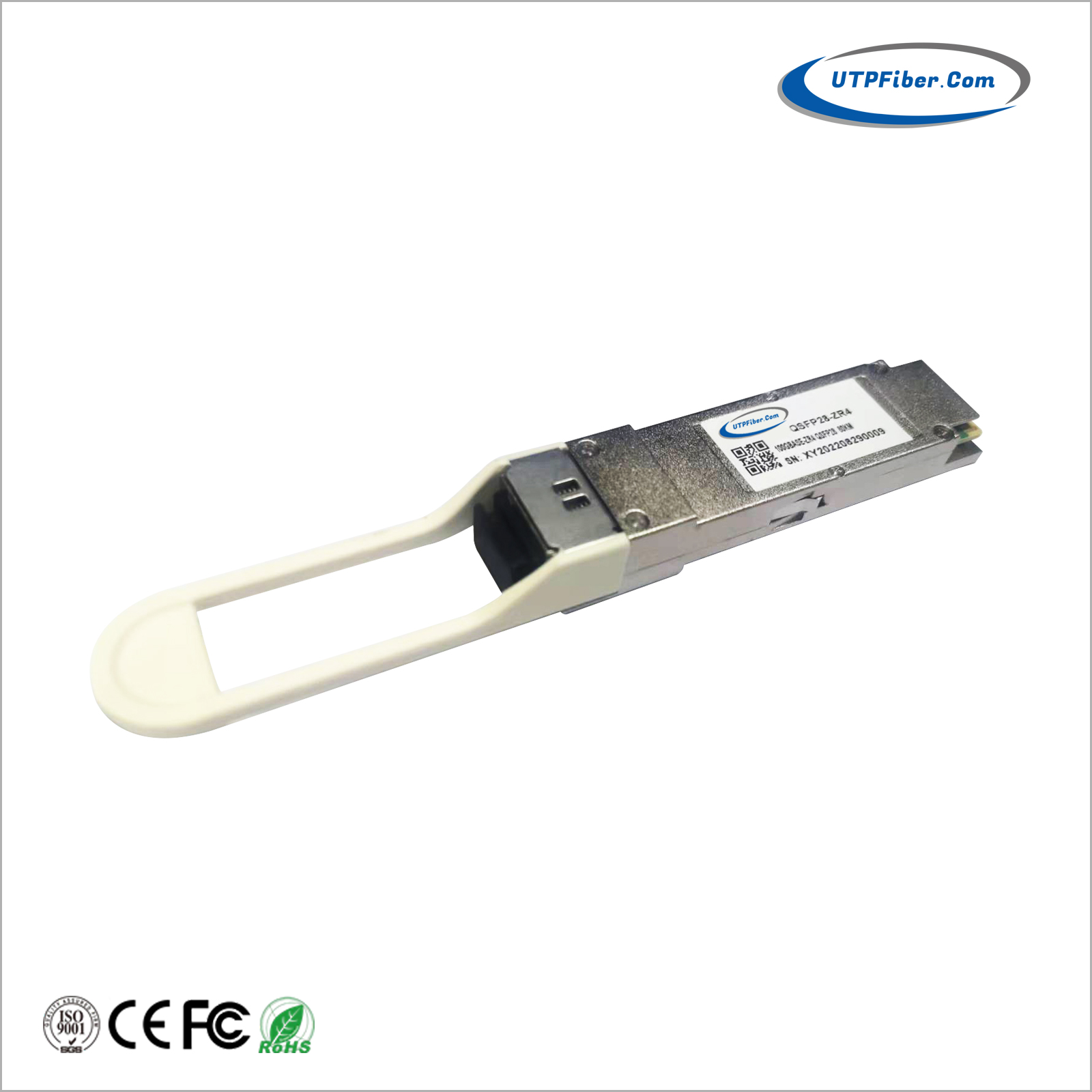

100G QSFP28 ZR4 Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm LWDM SMF 80km LC DDM)

100G QSFP28 ZR4 is designed for 80km optical communication applications. This module contains 4- a lane optical transmitter, a 4-lane optical receiver, and a module management block including 2 wire serial interface. The optical signals are multiplexed to a single-mode fiber through an industry-standard LC connector.

• Compliant with QSFP28 Standard: SFF-8661 Rev 2.5, SFF-8636 Rev 2.10a
• High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm-2015
• 100GBASE-ZR4 point-to-point Ethernet links
• Rx sensitivity of -28dBm with enabled KR4 FEC in host for up to 80km SMF
• Single 3.3V Supply Voltage
• 0-70 ºC Case Operating Temperature
• LAN WDM EML laser and SOA+PIN Receiver
• Universal QSFP28 MSA package with duplex LC connector
• wo Wire Serial Interface with Digital Diagnostic Monitoring
• Complies with EU Directive 2011/65/EU (RoHS compliant)
• Class 1 Laser

• Download FileName：UF-QSFP28-ZR4 100GBASE-ZR4 QSFP28 1295-1309nm 80KM Transceiver Datasheet V1.0.pdf Size： 482KB
