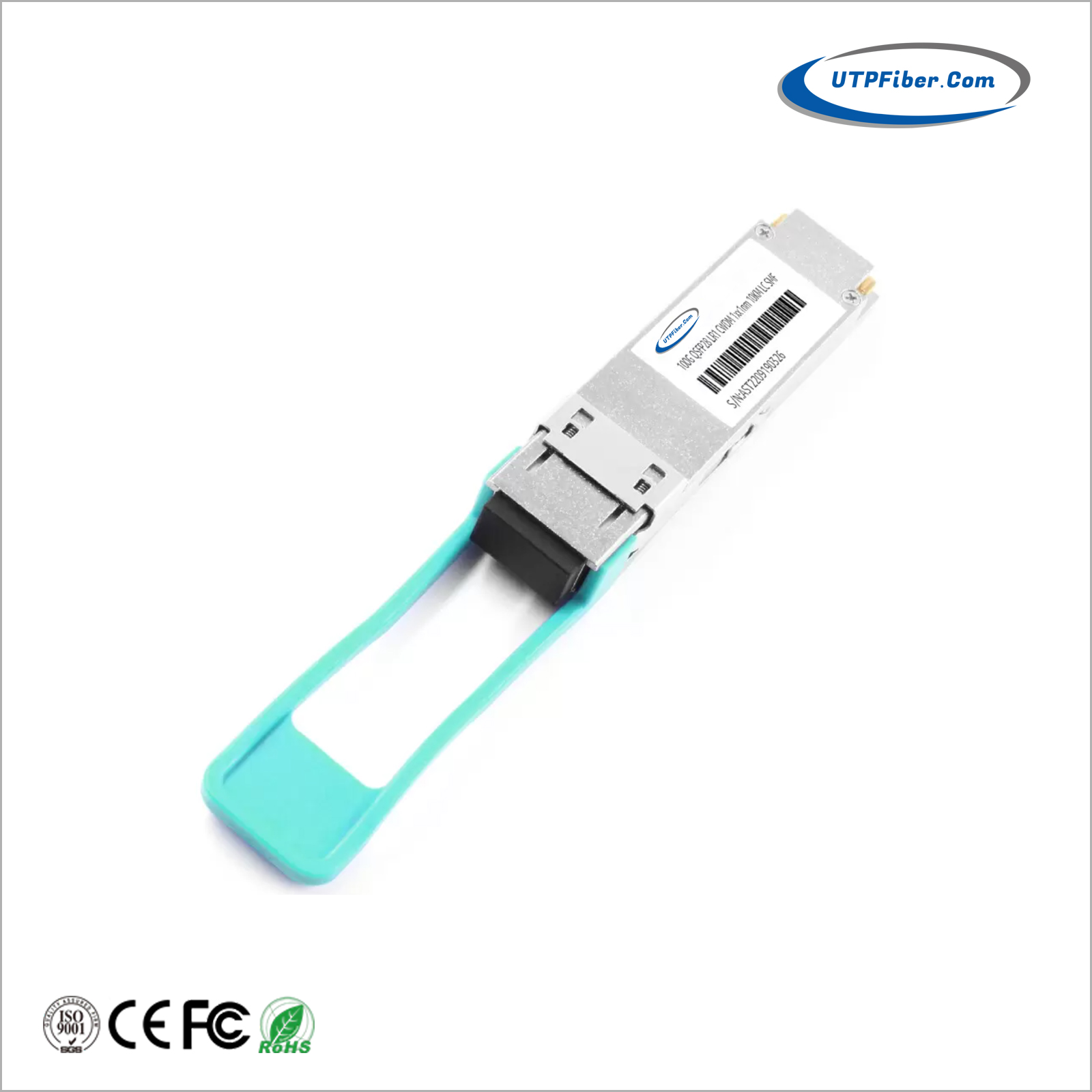

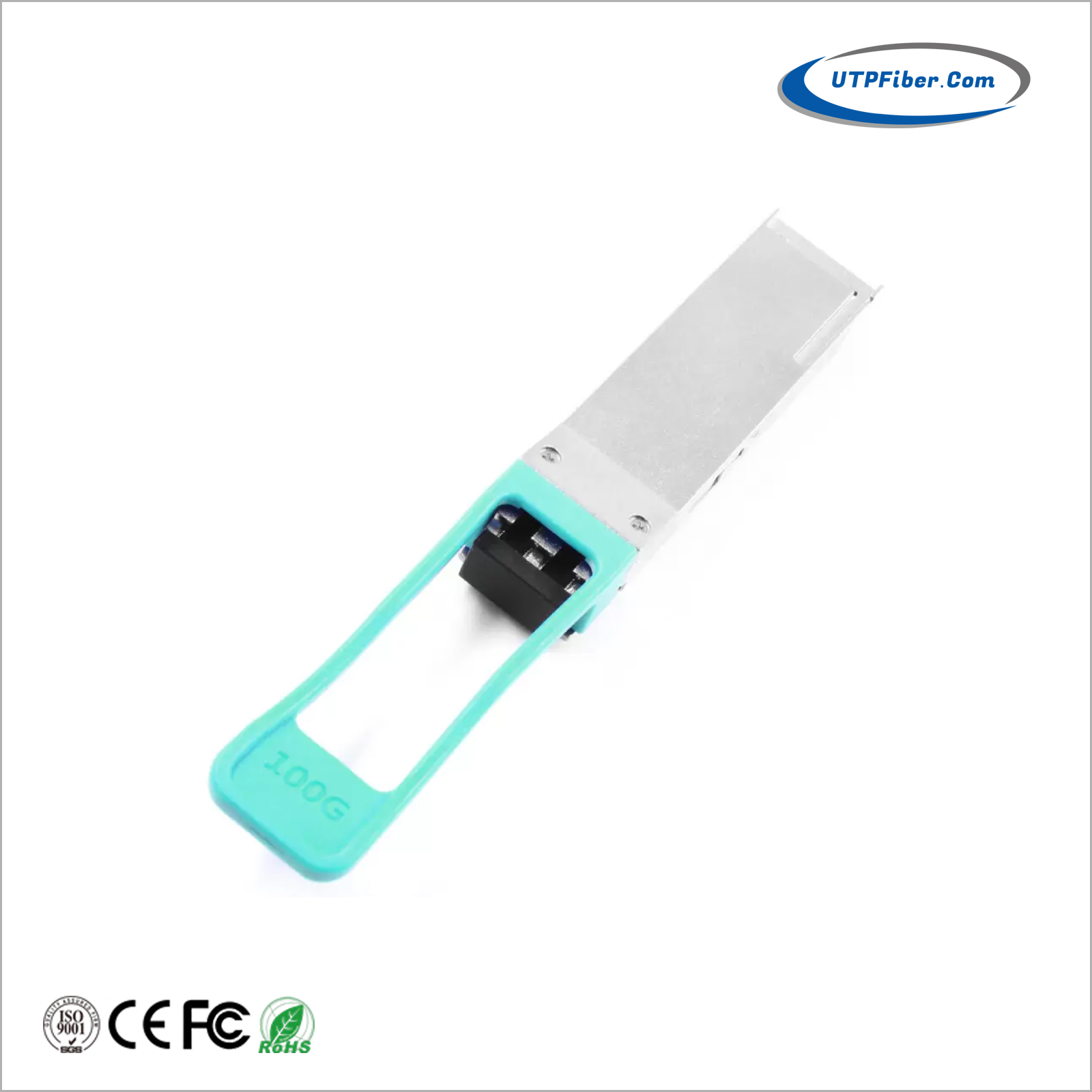

100G CWDM QSFP28 Single Lambda LR1 10km LC SMF with FEC DDM Optical Transceiver
Model:UF-QSP28-10C27, UF-QSP28-10C29, UF-QSP28-10C31, UF-QSP28-10C33
- Supports 100Gbps
- 100G Lambda MSA 100G-LR Specification Compliant
- Up to 10km over SMF with FEC
- 4x25G Electrical Interface
- LC Duplex Connector
UTP UF-QSP28-10Cxx CWDM Single Lambda QSFP28 transceiver module is designed for use in 100 Gigabit Ethernet links over 10km single mode fiber. The module incorporates one channel optical signal, on 1271nm, 1291nm, 1311nm or 1331nm center wavelength, operating at 50Gbaud data rate. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and compliant with QSFP28 MSA.
- Supports 100Gbps
- 100G Lambda MSA 100G-LR Specification Compliant
- Single 3.3V Power Supply
- Power Dissipation < 4.5W
- Up to 10km over SMF with FEC
- QSFP28 MSA Compliant
- SFF-8636 Rev 2.10a Compliant
- 4x25G Electrical Interface
- LC Duplex Connector
- Commercial Case Temperature Range of 0°C to 70°C
- I 2 C Interface with Integrated Digital Diagnostic Monitoring
- Safety Certification: TUV/UL/FDA
- RoHS Compliant
- Data Center Interconnect
- 100G Ethernet
| P/N | UF-QSP28-10Cxx | Vendor Name | UTP Fiber |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps Single Lambda |
| Wavelength | 1271/1291/1311/1331nm | Max Distance | 10km |
| Connector | Duplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -1.4~+4.5dBm | Receiver Sensitivity | < -6.1dBm |
| DDM Support | YES | FEC Support | YES |
| Protocols | 100G Lambda MSA 100G-LR, 100G Ethernet | Operation Temperature | 0 to 70°C (32 to 158°F) |
- Download FileName：UF-QSP28-10Cxx 1271~1331nm CWDM Single Lambda QSFP28 Datasheet V1.0.pdf Size： 348KB
|
Part Number |
Product Description |
|
UF-QSP28-10C27 |
100Gbps QSFP28 Single Lambda, 1271nm, Duplex LC, 10km, with DDM |
|
UF-QSP28-10C29 |
100Gbps QSFP28 Single Lambda, 1291nm, Duplex LC, 10km, with DDM |
|
UF-QSP28-10C31 |
100Gbps QSFP28 Single Lambda, 1311nm, Duplex LC, 10km, with DDM |
|
UF-QSP28-10C33 |
100Gbps QSFP28 Single Lambda, 1331nm, Duplex LC, 10km, with DDM |
