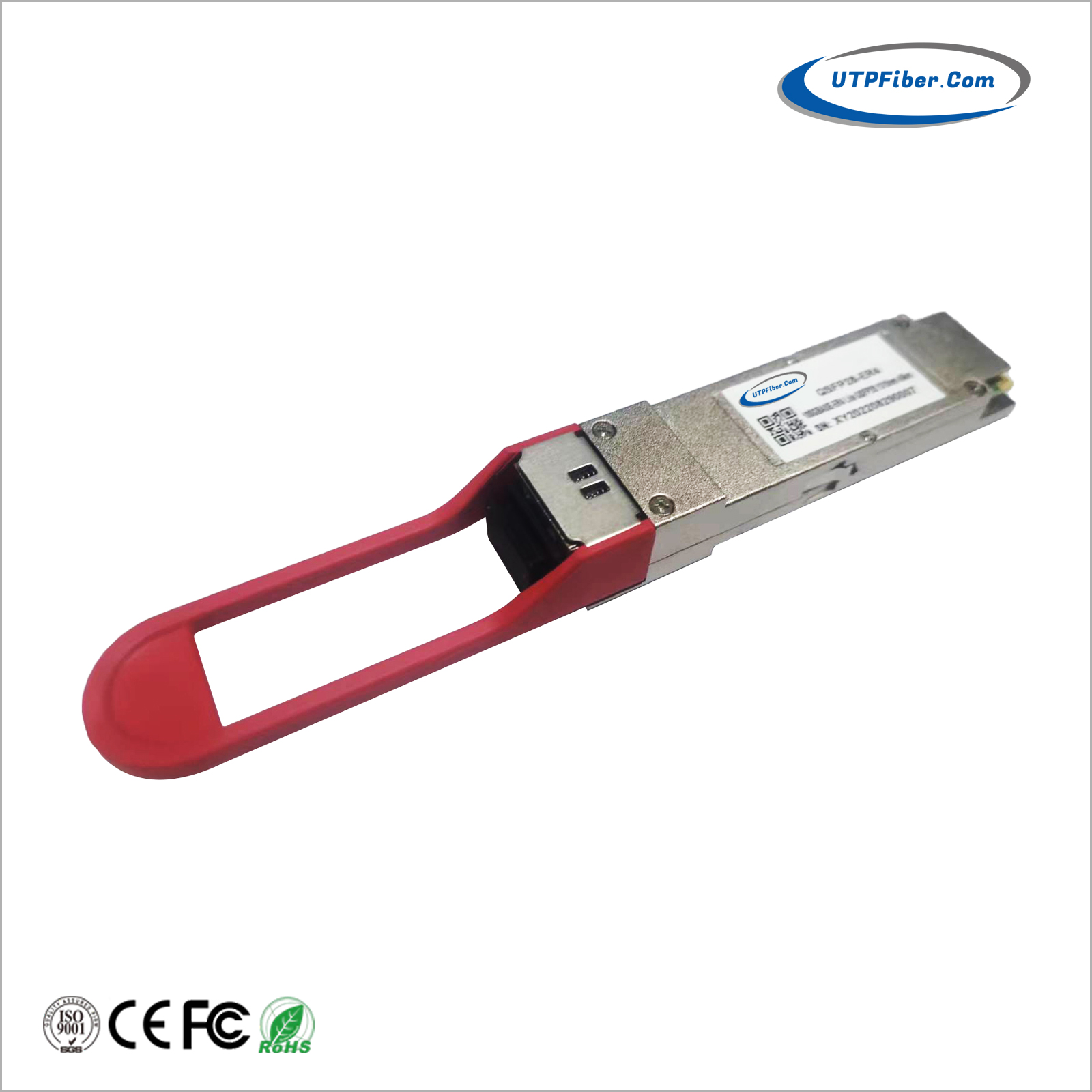

100G QSFP28 ER4 Lite Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm SMF 40km LC DDM)

This product is a 100Gb/s transceiver module for optical communication applications compliant with Ethernet 100GBASE-ER4 Lite standard. The module converts input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. The high-performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and 40km links with FEC.

Ø  4 lanes MUX/DEMUX design

Ø  Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF with FEC (30km without FEC)

Ø  Aggregate bandwidth of > 100Gbps

Ø  Duplex LC connectors

Ø  Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard 

Ø  Single +3.3V power supply operating

Ø  Built-in digital diagnostic functions

Ø  Temperature range 0°C to 70°C

Ø  RoHS Compliant Part

Ø  Support FEC (Forward Error Correction)

• Download FileName：UF-QSFP28-ER4 QSFP28 100GBASE-ER4 1310nm 40km Transceiver Datasheet V1.0.pdf Size： 922KB
