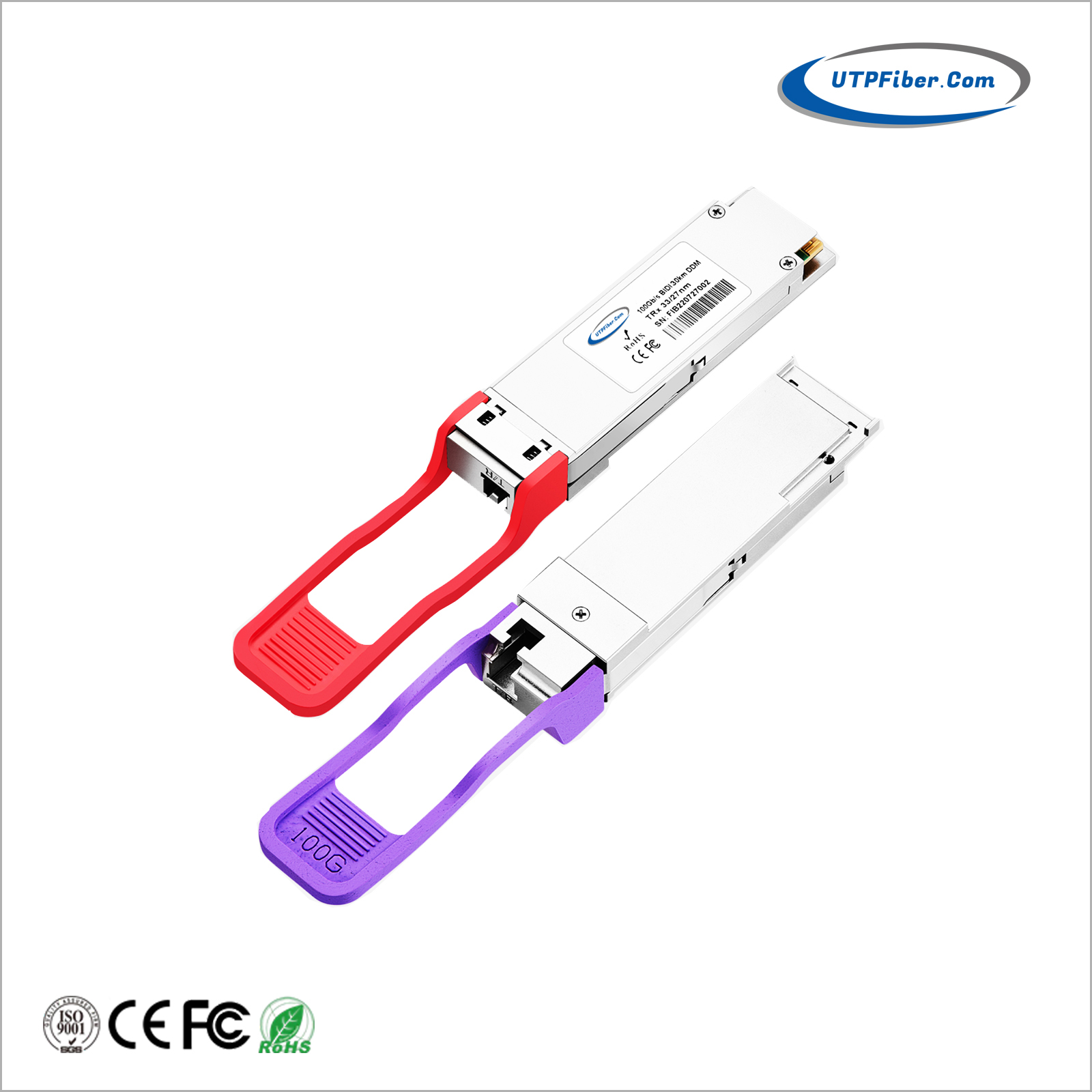

100G QSFP28 BIDI 1304nm/1309nm Single Lambda LC SMF 30km PAM4 DDM Optical Transceiver Module
Model:UF-BQSP-100G49-30/UF-BQSP-100G94-30
100G BIDI QSFP28 optical transceiver uses the wavelengths of TX1304nm/RX1309nm with PAM4 signals for up to 30km transmission over single-mode fiber. The module supports 103.125/106.25/111.8Gb/s with PAM4 lane signaling data rate with a simplex LC connector using the QSFP28 footprint. This bidirectional transceiver is fully compliant with QSFP28 MSA, 100G OTU4, 802.3cu, SFF-8636 & SFF-8679 specifications in 100GBASE-LR1 BIDI applications. The hot-swapping module features an I2C interface with integrated digital diagnostic monitoring functions.
100G QSFP28 BIDI Single Lambda Optical Transceiver Module (TX1309nm/RX1304nm Simplex LC SMF 30km DDM)
100G BIDI QSFP28 optical transceiver uses the wavelengths of TX1309nm/RX1304nm with PAM4 signals for up to 30km transmission over single-mode fiber. The module supports 103.125/106.25/111.8Gb/s with PAM4 lane signaling data rate with a simplex LC connector using the QSFP28 footprint. This bidirectional transceiver is fully compliant with QSFP28 MSA, 100G OTU4, 802.3cu, SFF-8636 & SFF-8679 specifications in 100GBASE-LR1 BIDI applications. The hot-swapping module features an I2C interface with integrated digital diagnostic monitoring functions.
100GBASE-ER1-30 BIDI
TX1304nm/RX1309nm
| P/N | UF-BQSP-100G49-30 | Vendor Name | UTP Fiber |
| Form Factor | QSFP28 | Max Data Rate | 111.8Gbps |
| Wavelength | TX1304nm/RX1309nm | Max Distance | 30km |
| Connector | Simplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | APD |
| DDM Support | Yes | Modulation Format | PAM4 |
| TX Power | 0~+5.6dBm | Receiver Sensitivity | < -12.5dBm |
| Protocols |
802.3cu, SFF-8636 & SFF-8679, 100G OTU4, QSFP28 MSA |
Operation Temperature | 0 to 70°C (32 to 158°F) |
TX1309nm/RX1304nm
| P/N | UF-BQSP-100G94-30 | Vendor Name | UTP Fiber |
| Form Factor | QSFP28 | Max Data Rate | 111.8Gbps |
| Wavelength | TX1309nm/RX1304nm | Max Distance | 30km |
| Connector | Simplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | APD |
| DDM Support | Yes | Modulation Format | PAM4 |
| TX Power | 0~+5.6dBm | Receiver Sensitivity | < -12.5dBm |
| Protocols |
802.3cu, SFF-8636 & SFF-8679, 100G OTU4, QSFP28 MSA |
Operation Temperature | 0 to 70°C (32 to 158°F) |
- Download FileName：UF-BQSP-100G-30 100G QSFP28 BIDI 30KM Transceiver Datasheet V1.0.pdf Size： 523KB
| Model | Description |
| UF-BQSP-100G49-30 | 100G QSFP28 BIDI TX1304nm/RX1309nm Single Lambda LC SMF 30km PAM4 DDM Optical Transceiver Module |
| UF-BQSP-100G94-30 | 100G QSFP28 BIDI TX1309nm/RX1304nm Single Lambda LC SMF 30km PAM4 DDM Optical Transceiver Module |
