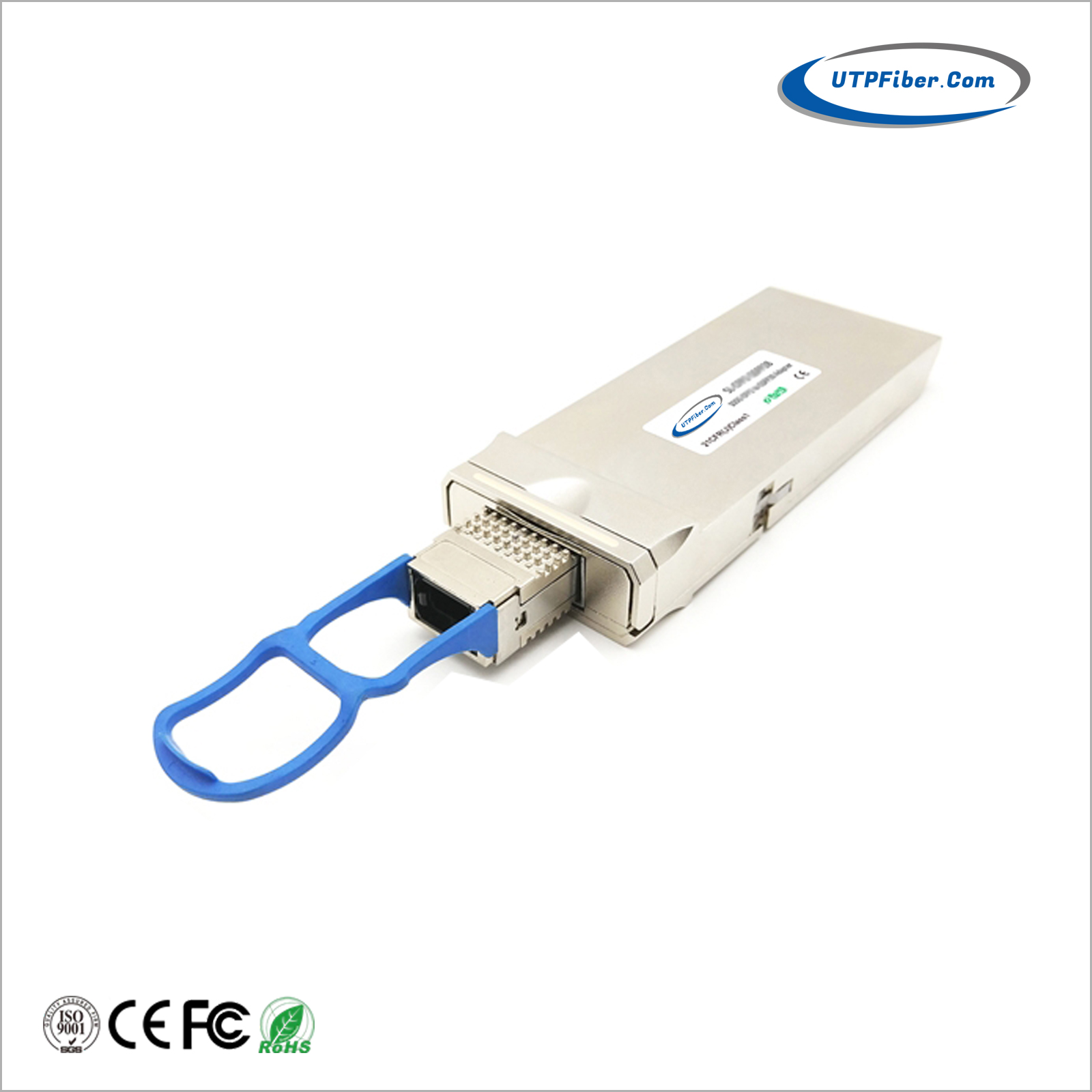

100G CFP2 to QSFP28 Converter

Model:UF-CFP2-QSFP28

Compliant to CFP2 Hardware Specification Version 1.0
Compliant to CFP2 MSA Management Interface Specification Version 2.4
1 port QSFP28 TX&RX, supports 100G QSFP28 LR4/ER4.
Supports 100G QSFP28 SR4/PSM4/CWDM4/CLR4 (when the 100GE network equipment’s CFP2 port has FEC function)

上一张

下一张

The 100G CFP2 to QSFP28 Adapter module is a four-Channel, high performance, hot pluggable, and interconnect solution supporting 100G Ethernet and Telecom. The adapter converts a CFP MSA interface to 1-port of 100GE QSFP28.It is compliant with the CFP MSA. Sourcelight 100G CFP2 to QSFP28 Adapter integrates four data lanes in each direction with operating at up to 28Gbps per lane. The adapter is without the FEC (Forward Error Correction) and supports 100G QSFP28 LR4/ER4. When the 100GE network equipment’s CFP2 port has FEC function, it can support 100G QSFP28 SR4/PSM4/CWDM4/CLR4.

Compliant to CFP2 Hardware Specification Version 1.0
Compliant to CFP2 MSA Management Interface Specification Version 2.4
4 channels full-duplex transceiver
Internal CDR circuits on both receiver and transmitter channels
Transmission data rate up to 28Gbps per channel
OTU4 compatible
Without FEC (Forward Error Correction)
1 port QSFP28 TX&RX, supports 100G QSFP28 LR4/ER4.
Supports 100G QSFP28 SR4/PSM4/CWDM4/CLR4 (when the 100GE network equipment’s CFP2 port has FEC function)
MDIO digital diagnostic interface and control capabilities
Power class 3 (Adapter<2W max)
Hot pluggable electrical interface
Operating case temperature:0°C~ +70°C
Single 3.3V power supply
RoHS 6 compliant (lead free)

100GBE interconnects, IEEE 802.3ba 100GBASE-LR4(Adapter+QSFP28_LR4), IEEE 802.3bm 100GBASE-SR4(Adapter+QSFP28_SR4)
High-speed core router connections & Datacom/Telecom switch
Data aggregation and backplane applications
Proprietary protocol and density application

P/N	UF-CFP2-QSFP28	Vendor Name	UTP Fiber
Form Type	CFP2 to QSFP28	Max Data Rate	112Gbps
Wavelength	N/A	Max Distance	N/A
Connector	N/A	DDM Support	Yes
Operation Temperature	0 to 70°C (32 to 158°F)	Protocols	IEEE P802.3bm

Download FileName：UF-CFP2-QSFP28 100G CFP2 to QSFP28 Converter Datasheet V1.0.pdf Size： 762KB

Model	Description
UF-CFP2-QSFP28	100G CFP2 to QSFP28 Converter
