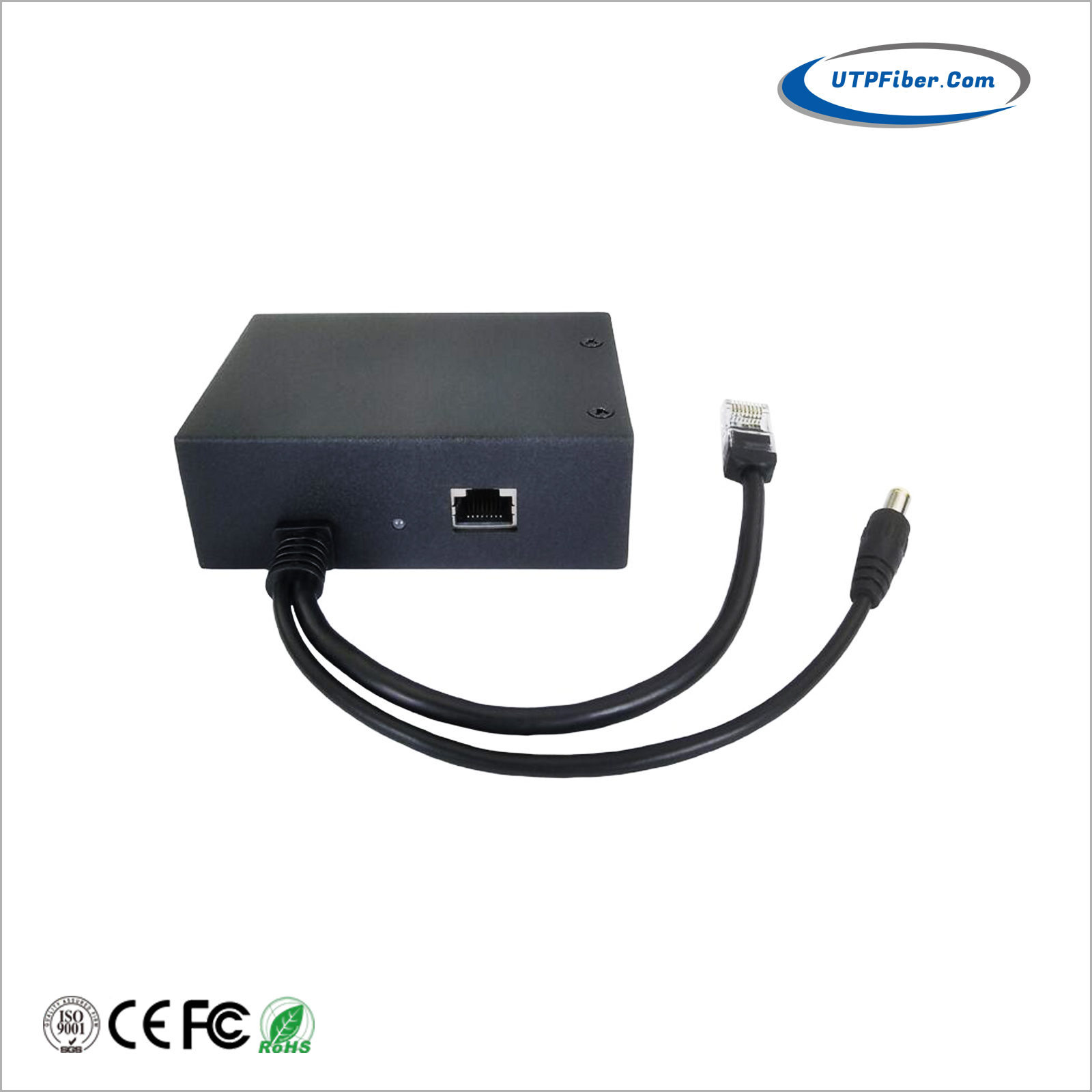

10/100/1000Mbps 802.3bt PoE++ to 36V 1.5A Splitter with 50W Output
Model:UF-SPG36V1A
► 2 RJ45 interfaces: 1-port data + power input, 1-port data output
► Compatible with IEEE 802.3bt PoE++
► Splits the PoE power over RJ45 Ethernet cable into 36VDC 1.5A output
► Desktop, wall-mount design
The UF-SPG36V1A Active splitters converts 802.3bt PoE input to 36VDC 50W output. The output is provided on a wire terminal connector which accepts up to 12AWG wire. Compatible with Gigabit Ethernet, inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage.

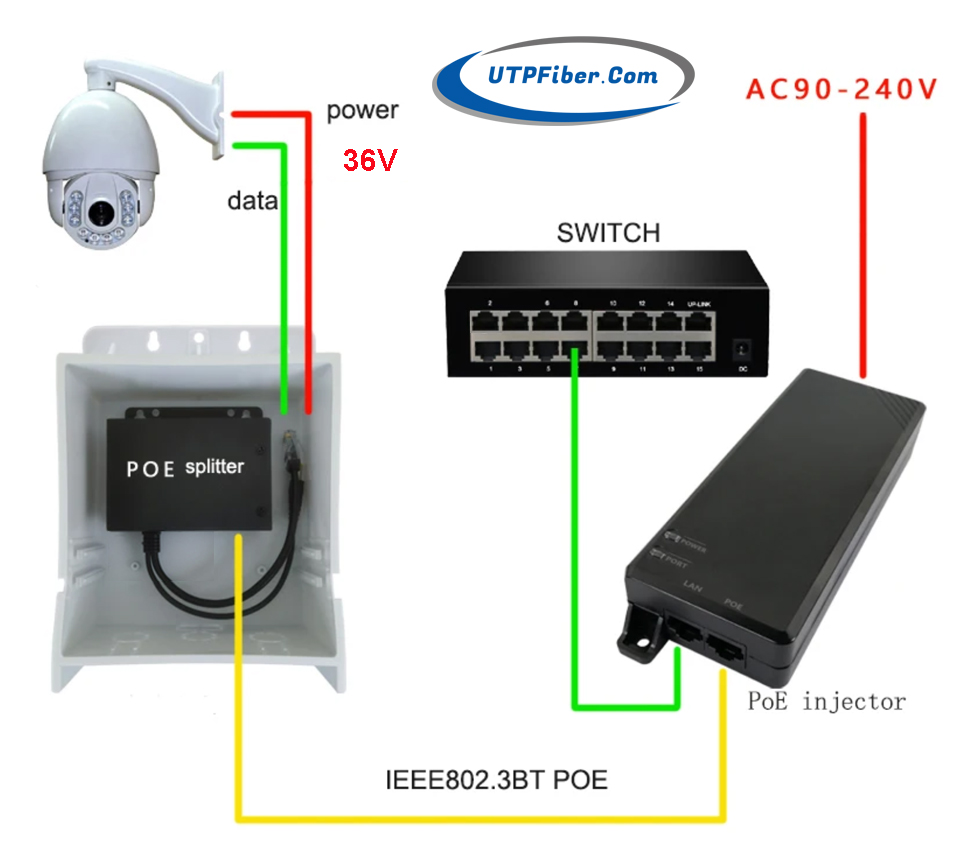

The PoE splitter, output voltage of 36V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other PoE practical place, and is not restricted by layout of power line.
► 2 RJ45 interfaces: 1-port data + power input, 1-port data output
► Compatible with IEEE 802.3bt PoE++
► Splits the PoE power over RJ45 Ethernet cable into 36VDC 1.5A output
► Plug & Play
► Built-in high performance chip and high specification circuit board
► Supports high Surge/ESD protection
► RJ45 full shield port
► Full bridge design, non polarity input
► Desktop, wall-mount design
► Short Circuit, Over Current and Over Voltage Protection
|
Hardware Specifications |
|
|
Interface |
Ethernet |
|
1 x 10/100/1000BASE-T RJ45, Ethernet data output port |
|
|
PoE in |
|
|
1 x 10/100/1000BASE-T RJ45, PoE power input port |
|
|
DC Output |
|
|
1 x DC Connector |
|
|
DC Socket |
DC Connector 2.5mm |
|
LED Indicators |
PoE in: |
|
90W+ (Yellow) |
|
|
Data Rate |
10/100/1000Mbps |
|
Dimensions (L x W x H) |
95 x 65 x 35 mm |
|
Weight |
350g |
|
Installation |
Desktop/wall mountable |
|
ESD Protection |
4KV |
|
EFT Protection |
4KV |
|
Enclosure |
Metal case |
|
Unit Output Current (at 56VDC Input) |
With 803.bt type 4 PoE++ input: |
|
Power Consumption |
System on: |
|
5 watts |
|
|
Ethernet full loading without DC output: |
|
|
60 watts |
|
|
Ethernet full loading with maximum 36V DC, 1.5A output: |
|
|
Network Cable |
803.bt PoE (60W+) |
|
4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) |
|
|
802.3at PoE (30W) |
|
|
2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) |
|
|
Power over Ethernet |
|
|
PoE Standard |
802.3bt Type 3/4 Power over Ethernet |
|
4-pair 802.3at PoE+ |
|
|
Compliant with voltage within 48-56V DC |
|
|
Power Output |
DC 36V |
|
Power Pin Assignment |
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
|
Standards Conformance |
|
|
Standards Compliance |
IEEE 802.3 10BASE-T Ethernet |
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt 4-pair Power over Ethernet Type 4 |
|
|
Regulatory Compliance |
FCC, CE |
|
Environment Specifications |
|
|
Operating Temperature |
’-20~ 50 degrees C |
|
Storage Temperature |
‘-30~ 60 degrees C |
|
Humidity |
5 ~ 95% (non-condensing) |
- Download FileName：UF-SPG36V1A 101001000M 36V 1.5A PoE Splitter Datasheet V1.0.pdf Size： 738KB
|
Model |
Description |
|
UF-SPG36V1A |
PoE Splitter: 1x10/100/1000T 802.3bt PoE input + 1xNetwork +1xDC output (36V 1.5A), MAX 50 Watts |
