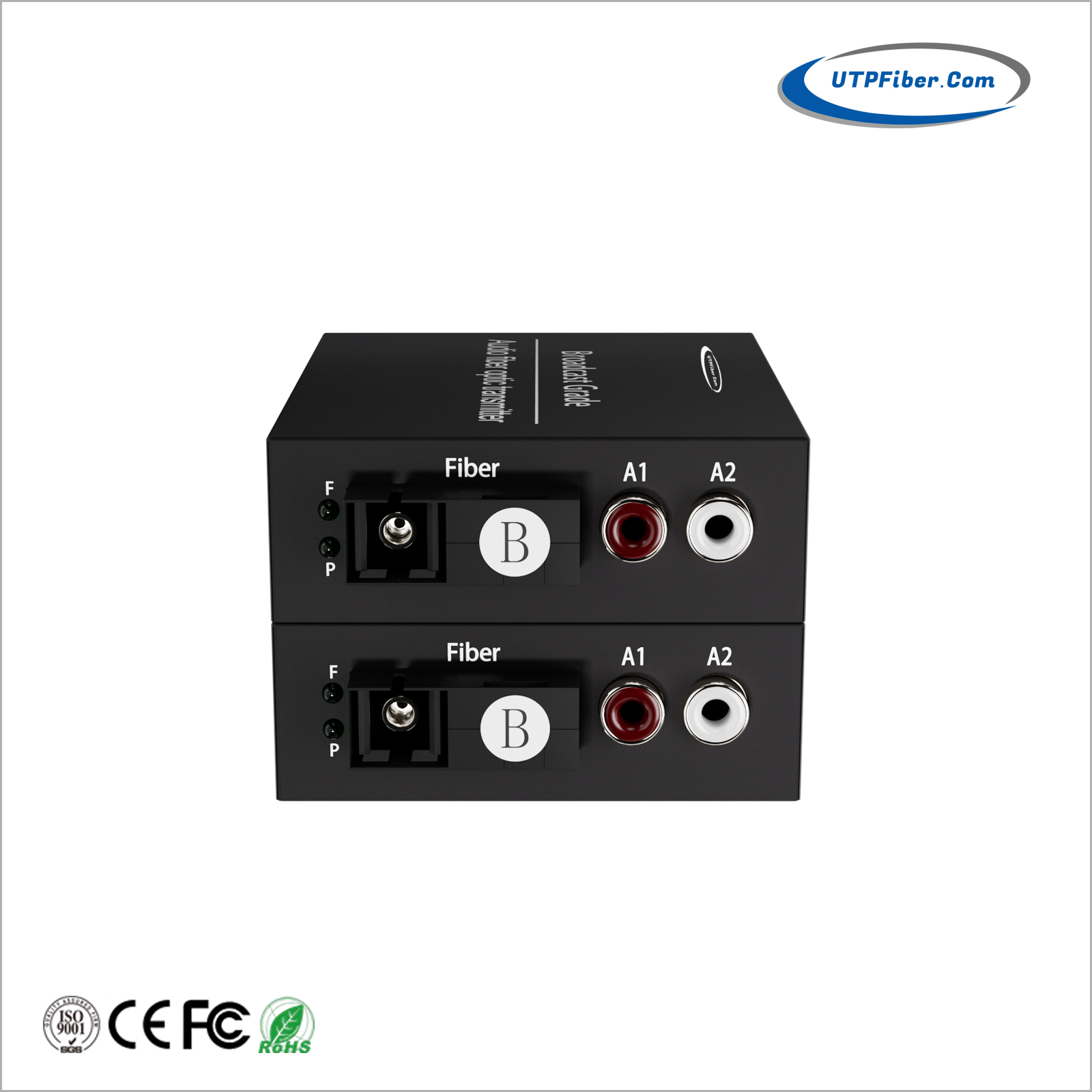

1-Channel Bi-Directional RCA Audio over Fiber Optical Converter

Model:UF-RCA-1BA

►     16-Bit (24-Bit) Digitally Encoded Audio

►     Send 1-Channel Bi-Directional RCA Audio Signal for distances of up to 12.4 miles (20 km) over SINGLE MODE optical fiber

►     Plug & Play - Simply Plug in an Optical SC port and RCA audio

The Audio to Fiber Extenders supports 1-Channel Bi-Directional independent RCA audio channels of 16-bit digitally encoded broadcast quality audio over one Single-Mode optical fiber. These fiber optic transmitter and receiver devices are typically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, CCTV audio and Professional AV applications, etc., and are available for stand-alone and desktop type, or wall-mounted, installations.


Use SC UPC / PC connectors with your Single (SM) cables. Plug and Play design ensures easy installation and operation, no configuration or driver installation is required. 2 simple LED indicators, one for fiber and one for power are provided to instantly monitor the system’s status.


UTP’s RCA L/R stereo / mono audio extender transmits analog stereo audio signals up to 20 km using a single mode (SM) fiber cable strand over 1310/1550 nm.

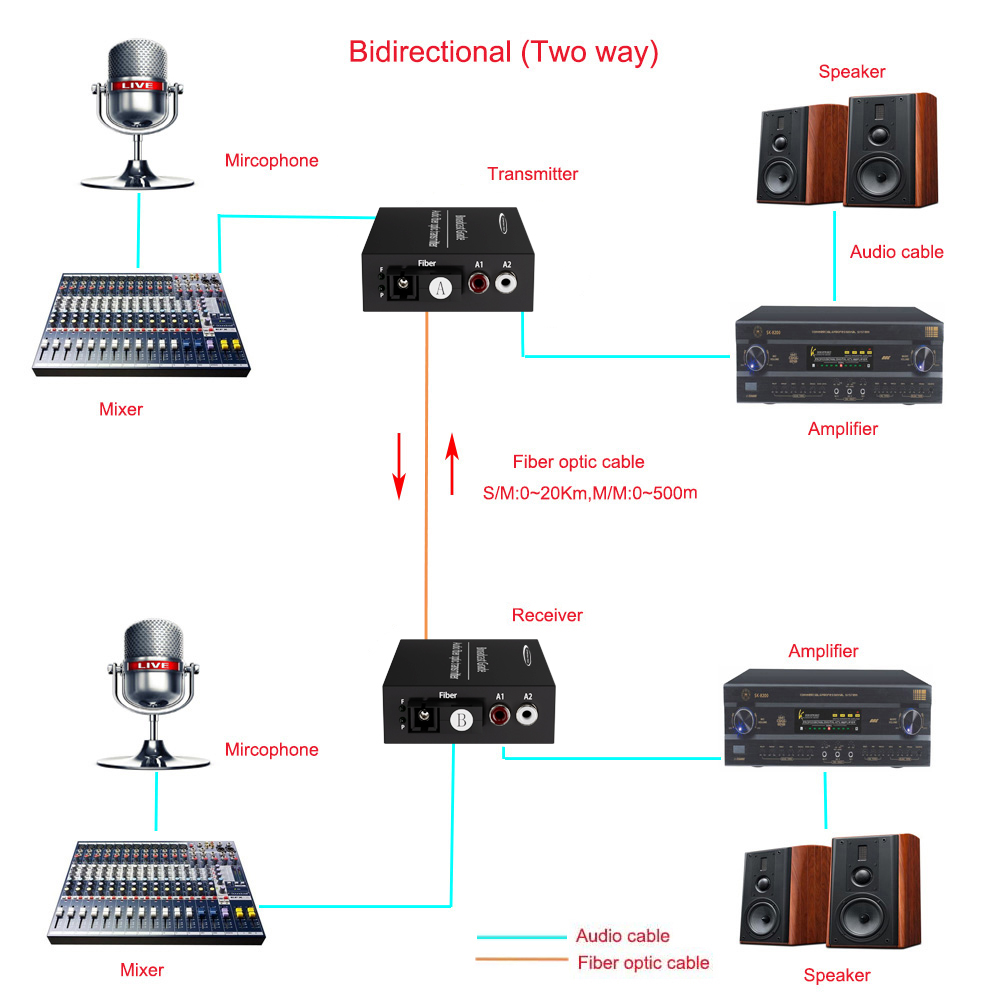

Each set consists of two units, one on the transmitter side, and one on the receiver side, that can be connected to an RCA analog stereo audio source and RCA stereo audio speakers or receiver, or 1-Channel Bi-Directional separate mono RCA can be sent over the fiber independently.

Audio over Fiber Optical Converter, RCA Audio Over Fiber Converter, RCA Audio Fiber Extender Kit, RCA Audio to Fiber Media Converter, RCA Audio Over Fiber Extenders, RCA Audio Over Fiber Converters, Audio Over Fiber Extender Kit, RCA Audio to Fiber Optic Converter/Extender, RCA to Optical Audio Converter, Fiber Optic Audio Adapter, RCA Audio Over Fiber Transport Extension, Optical RCA Audio Converter, Fiber RCA Audio Interface, RCA Optical Audio Converter, RCA to Fiber Optic Audio Adapter, Optical RCA Audio Transceiver, Fiber Optic RCA Audio Converter, RCA to Digital Optical Converter, RCA to Fiber Optic Audio Transmitter, Analog RCA to Optical Digital Converter, Audio Converter RCA to Optical

►     16-Bit (24-Bit) Digitally Encoded Audio

►     Send 1-Channel Bi-Directional RCA Audio Signal for distances of up to 12.4 miles (20 km) over SINGLE MODE optical fiber

►     Plug & Play - Simply Plug in an Optical SC port and RCA audio

►     Support Point-to-Point connection

►     No Loss, No Delay, Fiber Optica Audio Signal Transmission

►     No need to configuration or any adjusting during the installation, user friendly design

►     LED Indicators for Instant System Monitoring

►     Full Set includes Optical Fiber to RCA transmitter, receiver & AC power supply, plus user manual

RCA Audio

Number of Channel:

1-Channel Bi-Directional (Forward + Backward)

Connector:

RCA

Input/output Impedance:

600ohm(unbalance)

Max input/output voltage:

2.0Vp-p

Frequency Response:

20Hz~20kHz @±3dB

SNR:

> 85dB

Audio digital bandwidth:

16-Bit (24-Bit)

Sampling Rate

48.6KHz

Optical Fiber

Number of Optical Port:

1

Optical Connector:

Simplex SC (Default)

Wavelength:

1310/1550nm

Optical Fiber:

Single Mode: 9/125um

Multimode: 50/125um or 62.5/125um

Distance:

0~20km (SMF) / 0~2km (MMF)

Electrical and Mechanical

Input Power:

DC 5V@2A

Power Adapter:

AC 90V~240V

Power Consumption:

5W Max.

LED Indicators:

PWR:

Power Status

SYNC:

Fiber Status

Dimensions (LxWxH):

105 x 70 x 25 mm

Weight:

0.8Kg (including Transmitter & Receiver)

Casing:

Metal Case

Mounting Options:

Desktop

Environmental

Operating Temperature:

-20°C to 80°C (-4°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 100,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS


  • Download FileName:UF-RCA-1BA 1Ch BIDI RCA Audio Fiber Converter Datasheet V1.0.pdf Size: 643KB

Model

Description

UF-RCA-1BA

1-Channel Bi-Directional RCA over Fiber Converter, Single Mode, Single Fiber, SC 20KM, including Transmitter & Receiver, used by pairs
