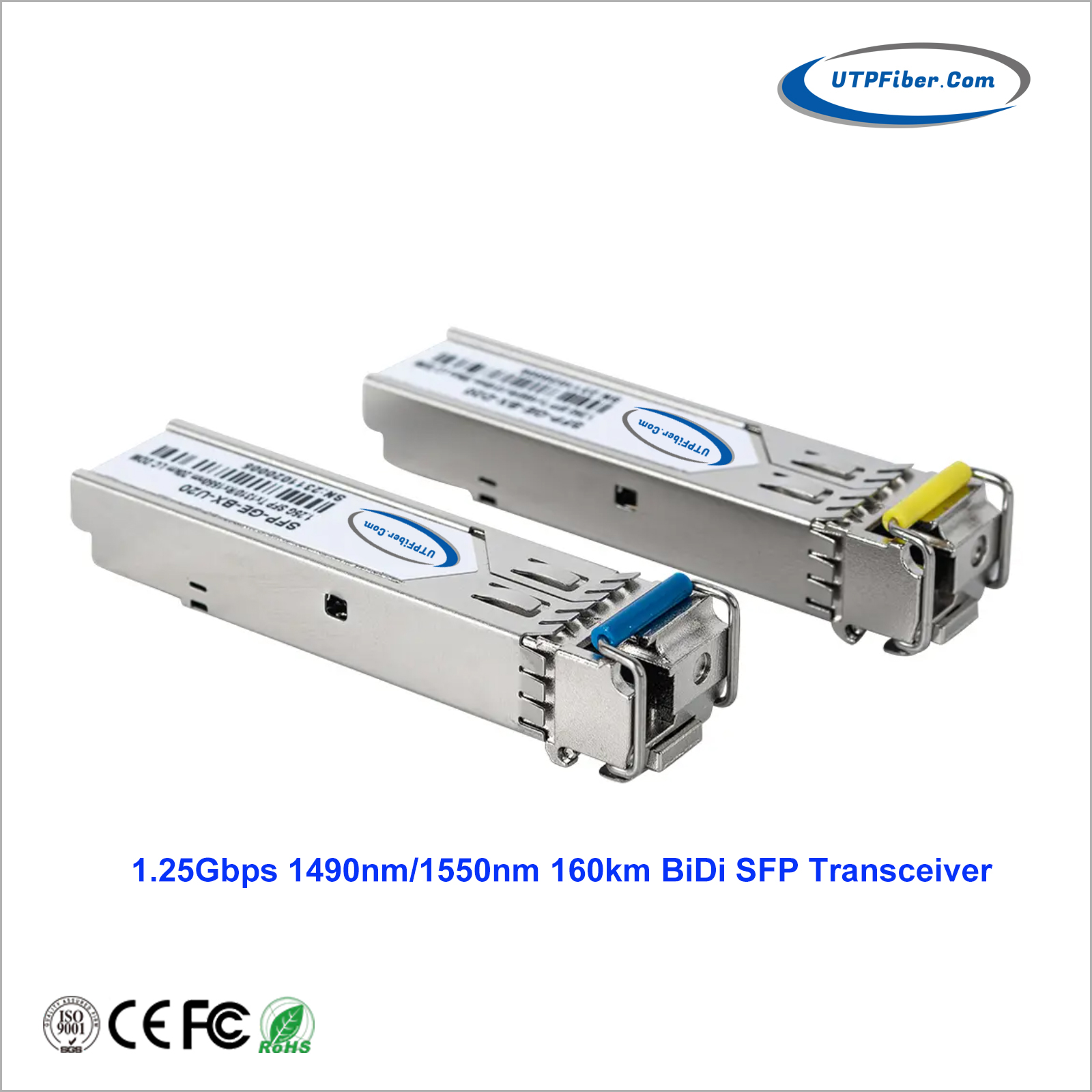

Fiber Transceiver Module 1.25G SFP BIDI 160KM

Model:UF-BSFP-1G45-160, UF-BSFP-1G54-160

• Hot-Pluggable SFP package
• Up to 1.25Gb/s data links
• Compliant with SFP MSA standard
• Compliant with IEEE 802.3z
• Single LC or SC Connector

上一张

下一张

UTP's UF-BSFP-1G45-160/UF-BSFP-1G54-160R is a hot-pluggable SFP bi-directional (BiDi) transceiver module specifically for duplex optical data communications such as 1000BASE-BX Gigabit Ethernet per IEEE802.3z and 1G Fiber Channel ultra-long reach the application. This 1G BiDi SFP EZX module provides a maximum 150km to 160km transmission distance over a single strand of single-mode fiber. Compared with commonly used dual fiber SFP transceiver modules, the BiDi SFP transceiver allows the end-users to reduce the total cost on fiber cabling infrastructure by requiring half of the fiber cables, providing increased transmission capacity very convenient without installing new fibers.

• Hot-Pluggable SFP package
• Up to 1.25Gb/s data links
• Compliant with SFP MSA standard
• Compliant with IEEE 802.3z
• Single LC or SC Connector
• Single 3.3V power supply
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
• Optional Digital Diagnostic Monitor Interface

Product Series	Fiber Optical Transceiver	Optcore Part Number	UF-BSFP-1G45-160, UF-BSFP-1G54-160
Form Factor	BiDi SFP	Data Rate	1.25 Gb/s
Wavelength	1490nm/1550nm	Fiber Type	SMF
Max Distance	160 km	Optical Components	DFB/APD
Transmitter Power	1 ~ 6 dBm	Extinction ratio	> 9 dB
Receiver Sensitivity	< -34 dBm	Receiver Overload	> -9 dBm
Connector	Single LC or SC	Digital Diagnostic Monitoring	Yes
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C	Weight	0.03 kg
Application	1G Fibre Channel, Switch to Switch Interface Gigabit Ethernet, Switched Backplane Applications Broadband aggregation and wireless infrastructure Router/Server Interface Other Optical networking	Compliance	IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS

Download FileName：UF-BSFP-1G45-160 1.25G BIDI SFP 1490T1550R 160KM SFP Datasheet V1.0.pdf Size： 417KB
Download FileName：UF-BSFP-1G54-160 1.25G BIDI SFP 1550T1490R 160KM SFP Datasheet V1.0.pdf Size： 417KB

Model	Description
UF-BSFP-1G45-160	1.25G SFP Bi-Directional Transceiver, 1490nm TX/1550nm RX, LC 160km, With Digital Diagnostic Monitoring, 0°C~+70°C
UF-BSFP-1G54-160	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1490nm RX, LC 160km, With Digital Diagnostic Monitoring, 0°C~+70°C
