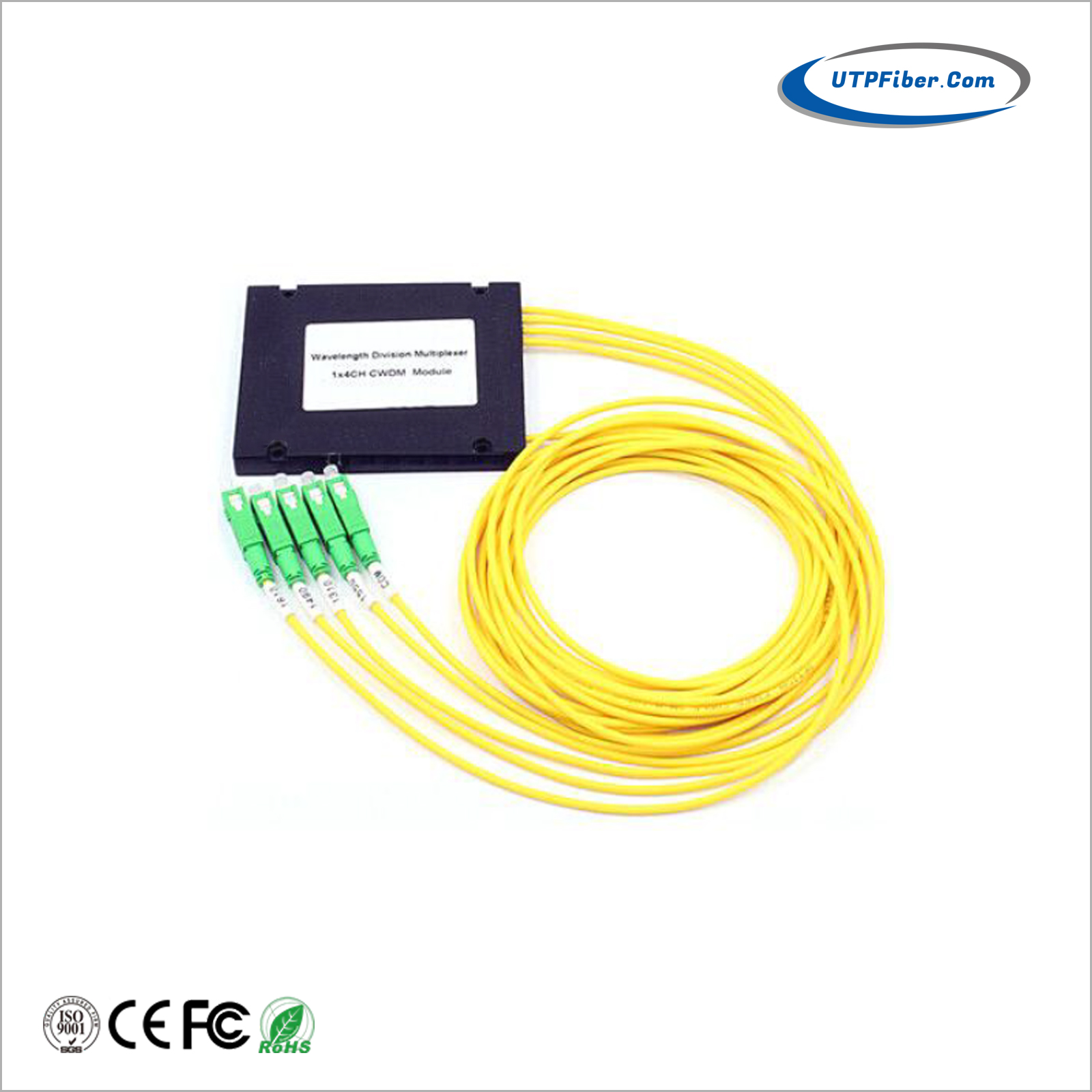

CWDM Mux Demux Module
Model:UF-CM Series
- Wide Pass Band
- Low Insertion Loss
- High Channel Isolation
- High Stability and reliability
Shenzhen UTP Fiber Technology Co., Ltd. (hereinafter “UF”) CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates. It's protocol and rate transparent supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link.
- Low Insertion Loss
- High Isolation
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1620nm
- Wide Operating Temperature: From -40℃ to 85℃
- High Reliability and Stability
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- RoHS

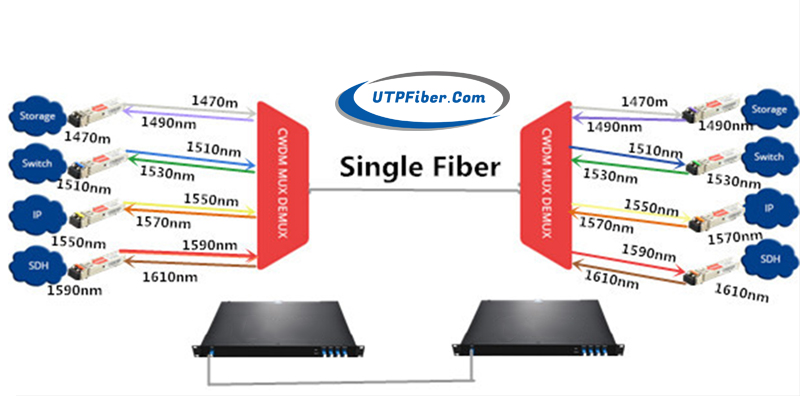

- CWDM System
- PON Networks
- CATV Links
|
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
|
|
Center Wavelength (nm) |
ITU, ITU+1 |
||||
|
Passband (nm) |
ITU±6.5 |
||||
|
Operating Wavelength (nm) |
1460~1620 or 1260~1620 |
||||
|
Channel Space (nm) |
20 |
||||
|
Fiber Type |
SMF-28e or customer specified |
||||
|
IL (dB) (P/A Grade) |
0.7/1.0 |
1.4/1.7 |
2.0/2.5 |
3.5/4.0 |
|
|
Isolation (dB)
|
Adjacent Channel |
30 |
|||
|
Non-Adjacent Channel |
50 |
||||
|
Ripple (dB) |
0.3 |
0.4 |
0.5 |
0.5 |
|
|
PDL (dB) |
0.2 |
||||
|
PMD (ps) |
0.1 |
||||
|
RL (dB) |
45 |
||||
|
Directivity (dB) |
50 |
||||
|
Maximum Optical Power (mw) |
500 |
||||
|
Operating Temperature (℃) |
-40～85 |
||||
|
Storage Temperature (℃) |
-40～85 |
||||
|

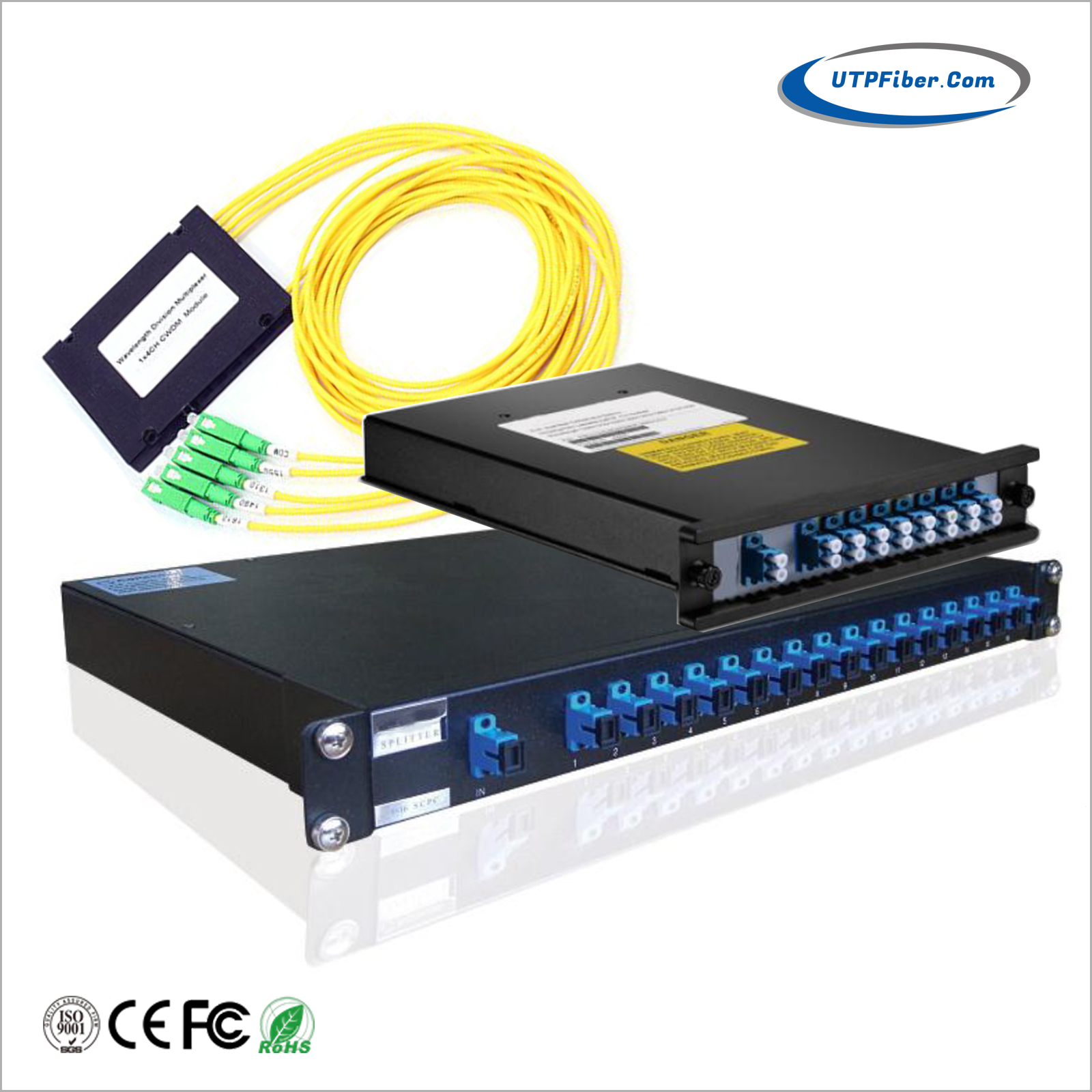

BOX Package (mm) |
100*80*10 |
140*115*18 |
|||
|

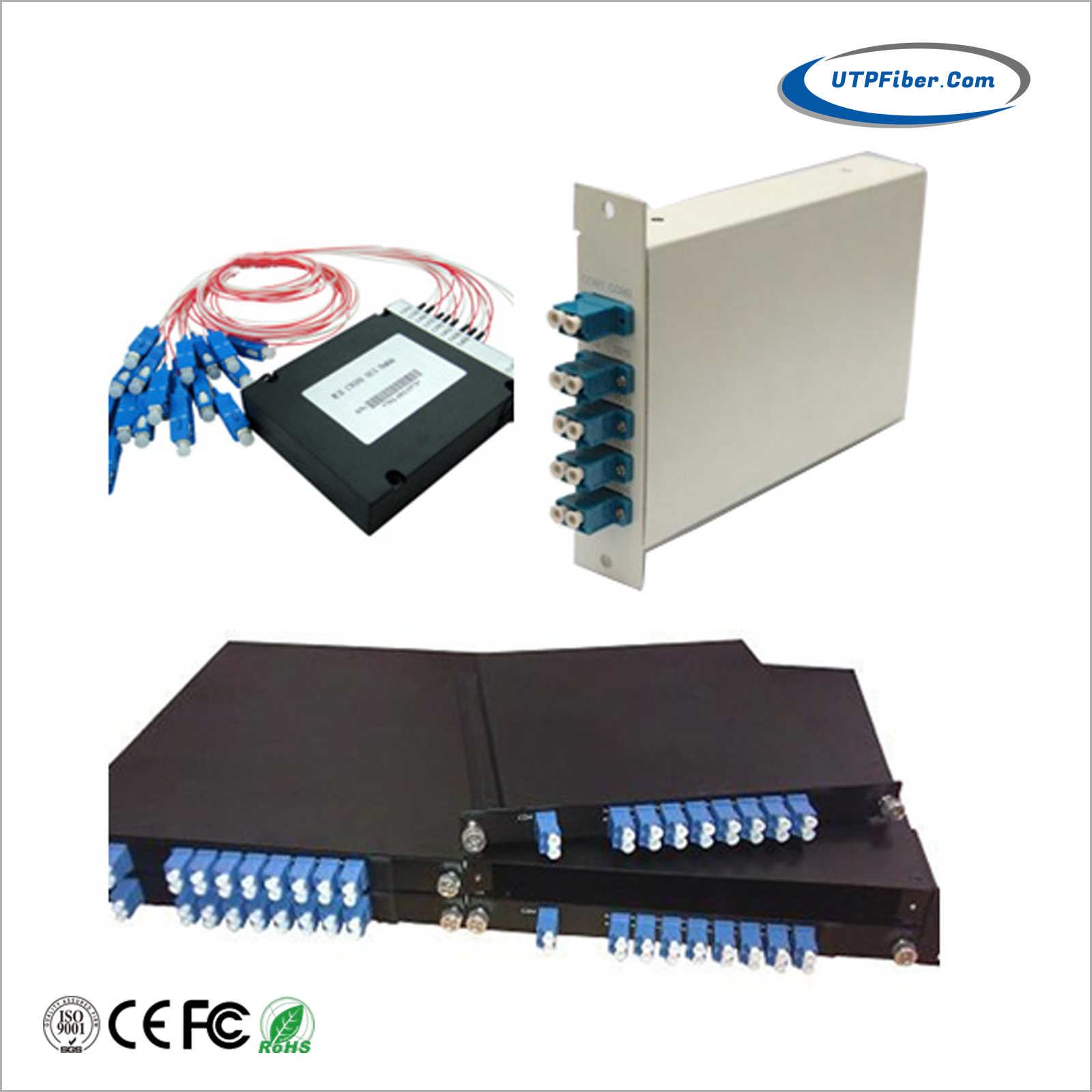

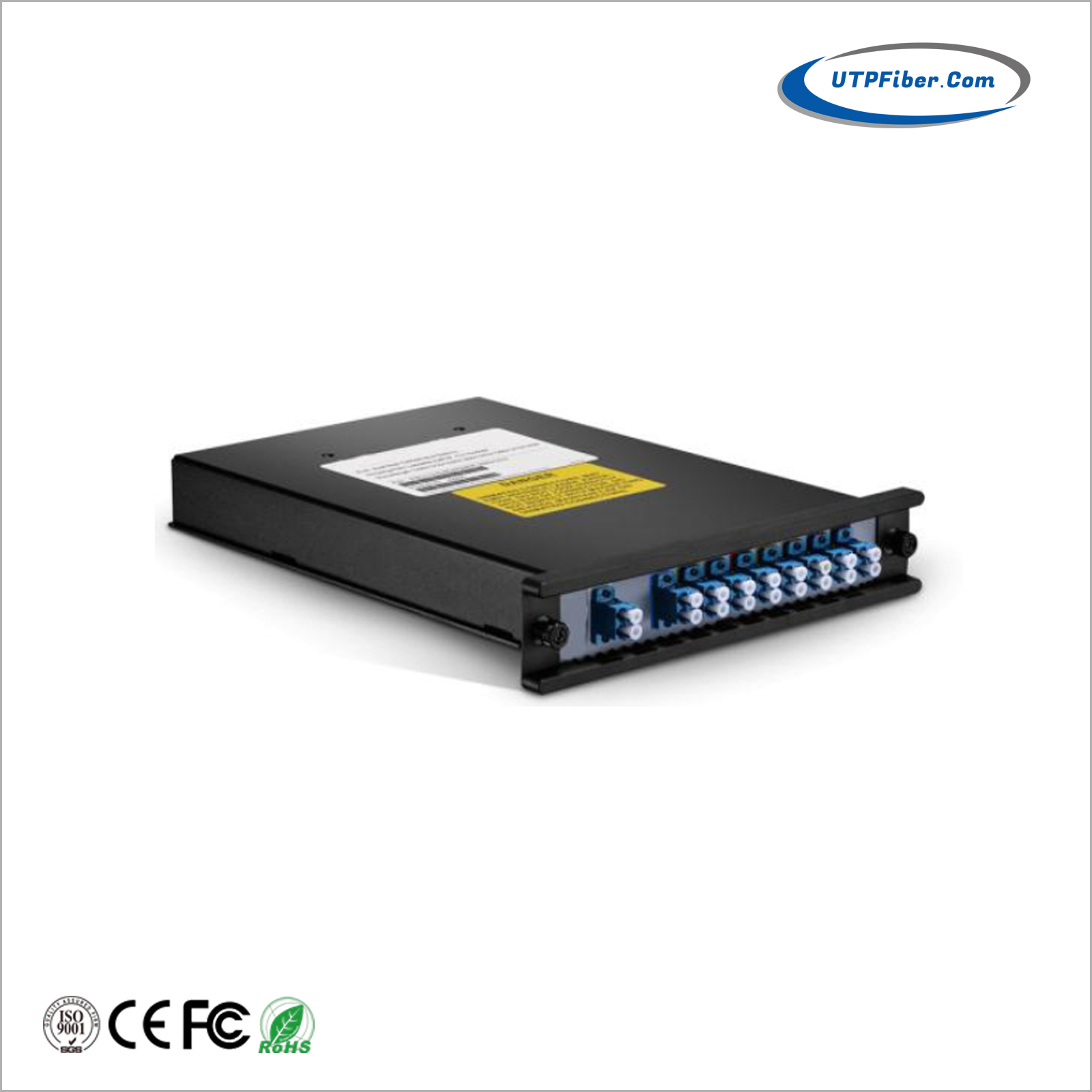

LGX Package |
1U, 2U |
||||
|

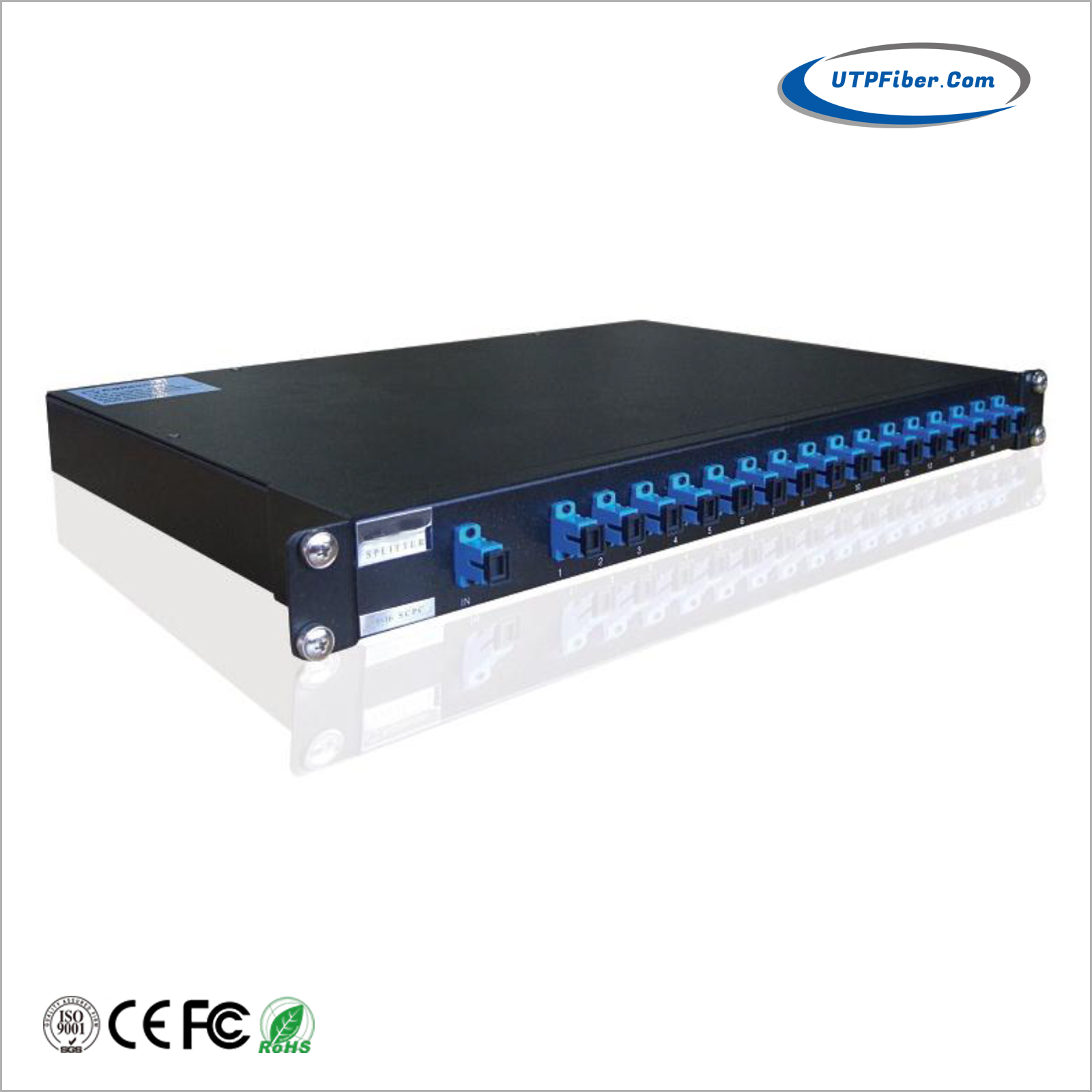

19’’ Rack mount Package |
1U |
||||
- Download FileName：UF-CM Series CWDM MUX DEMUX Module Datasheet V1.0.pdf Size： 642KB
|
Brand |
Type |
Channel No. |
Module Type |
Wavelength |
Modules Type |
Fiber Type |
Fiber Length |
Connector Type |
|
UF=UTP Fiber |
CM=CWDM |
2=1*2 |
M=MUX |
27=1270/1271nm |
A=100*80*10 |
B=250Bare |
05=0.5 meter |
SU=SC/UPC |
|
|
DM=DWDM |
4=1*4 |
D=DEMUX |
34=ITU34Ch |
B=120*80*18 |
L=0.9Loose |
10=1 meter |
LA=LC/APC |
|
|
FM=FWDM |
N=1*N |
1=MUX&1310 |
|
C=140*115*18 |
T=0.9 |
|
|
|
|
|
|
2=DEMUX&1310 |
|
LGX=LGX BOX |
20=2.0 |
|
|
|
|
|
|
3=MUX&UPG |
|
19=19" Rack |
30=3.0 |
|
|
|
|
|
|
4=DEMUX&UPG |
|
192=19" 2+1 Rack |
|
|
|
|
|
|
|
5=MUX&MON |
|
193=19" 3+1 Rack |
|
|
|
|
|
|
|
6=DEMUX&MON |
|
194=19" 4+1 Rack |
|
|
|
|
|
|
|
X=Customized |
|
|
|
|
|
